Customized OM3 Multimode Simplex LC/SC/FC/ST Fiber Optic Patch Cable
Explore SunmaFiber online store for OM3 Multimode Simplex LC/SC/FC/ST Fiber Optic Patch Cable with PVC/LSZH/OFNP jacket, worldwide distribution. Free shipping on orders over $200.
$1.60

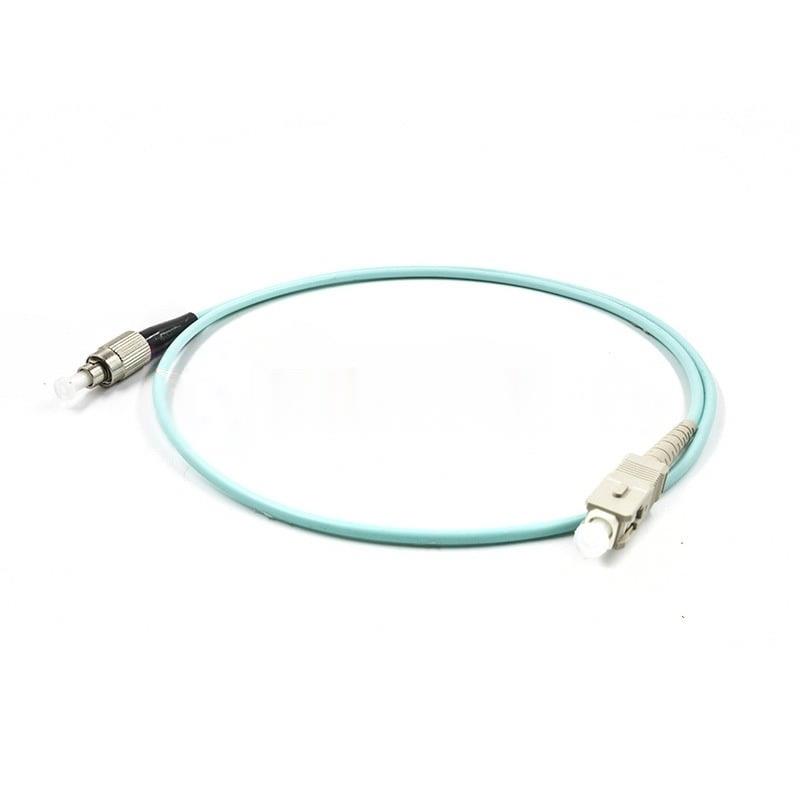

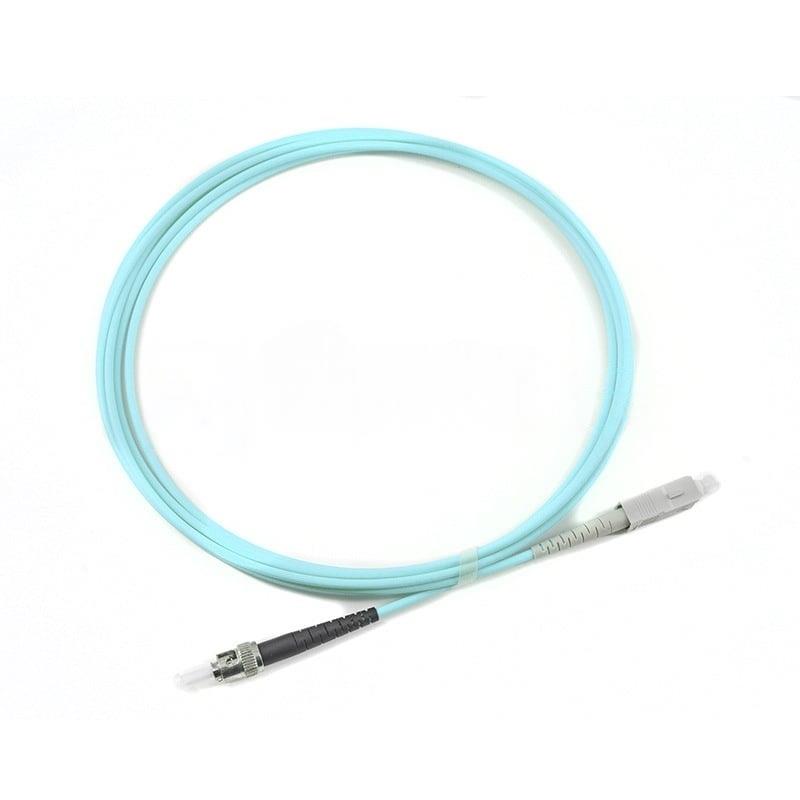

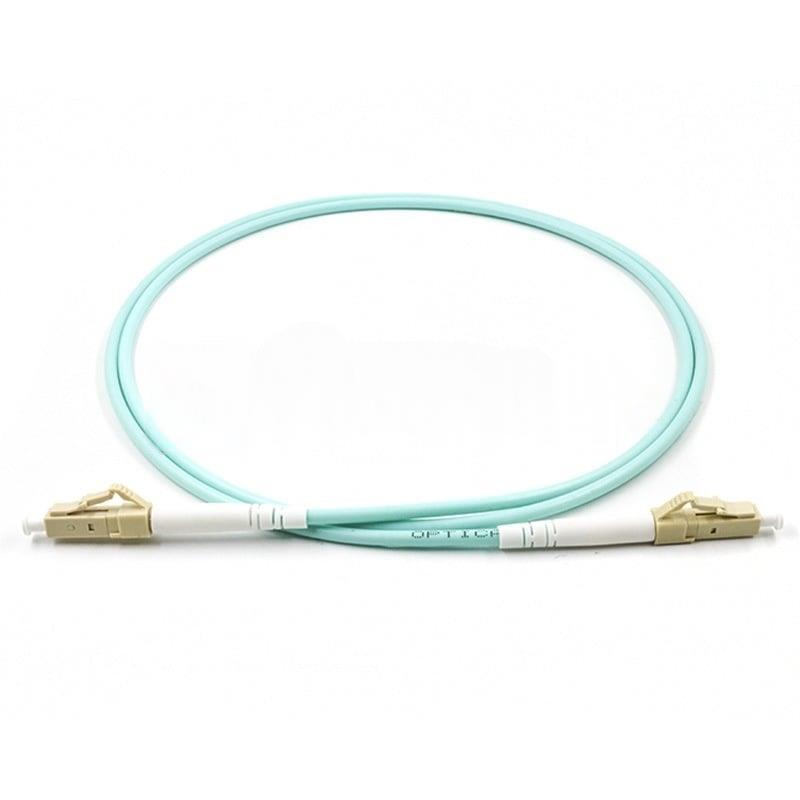

Simplex OM3 Multimode LC/SC/FC/ST Fiber Optic Patch Cable
OM3 Multimode Simplex Fiber Optic Patch Cable is a high-bandwidth, short-distance fiber optic cable designed for applications like local area networks (LANs), data centers, and high-performance computing environments. Compared to OM4, OM3 offers lower bandwidth and is more commonly used for slightly shorter transmission distances.
Simplex cable supports unidirectional data transmission, unlike duplex cables, which can send and receive data simultaneously. The patch cable often comes with connectors such as LC, SC, FC, or ST, depending on the equipment and network requirements.
Specifications
| Connector Type | LC/SC/ST/FC | Polish Type | UPC/APC |
| Fiber Count | Simplex | Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm | 10G Ethernet Distance | 300m At 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Cable Jacket | PVC/LSZH/OFNP | Cable Diameter | 0.9/2.0/3.0mm |
Features
Precision polishing and glue removal
Effectively ensure that the end face of each fiber patch cord is smooth, with no scratches or defects on the surface.
Strict testing
Low loss, high return, ensure fiber insertion loss ≤ 0.3dB, return loss ≥ 30dB.
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
