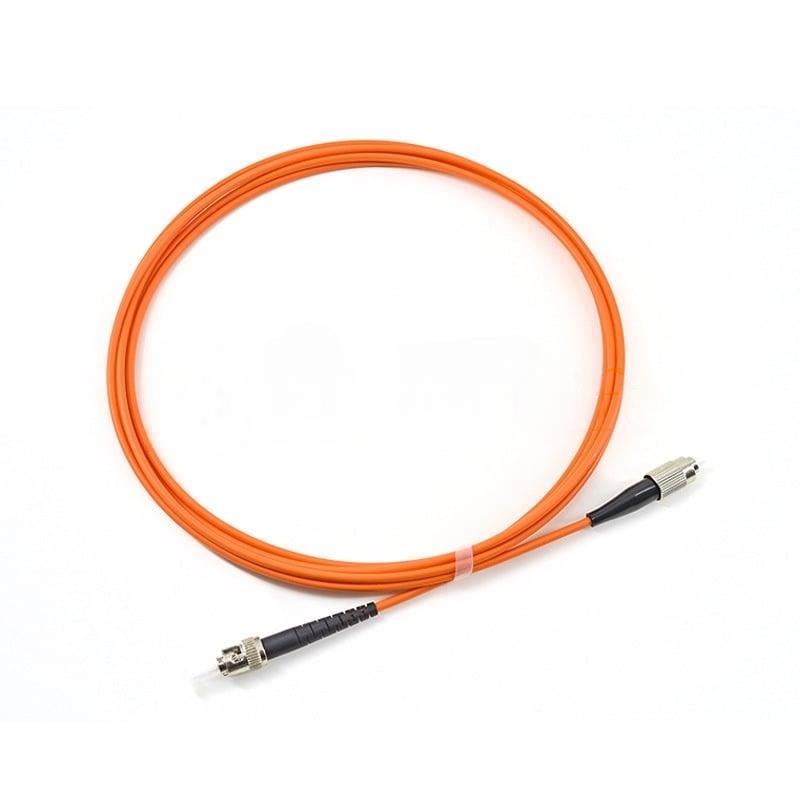

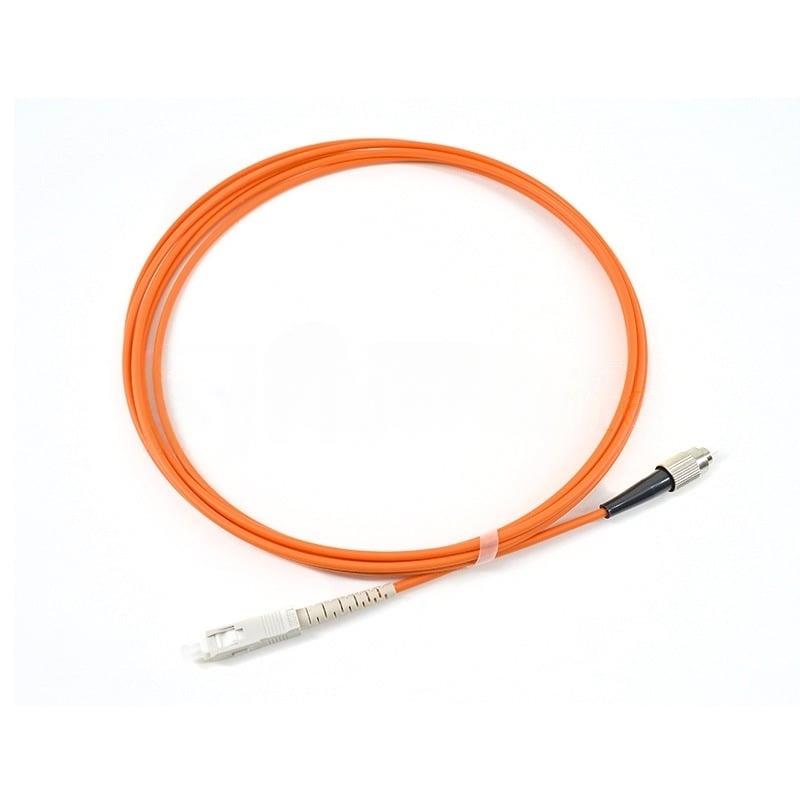

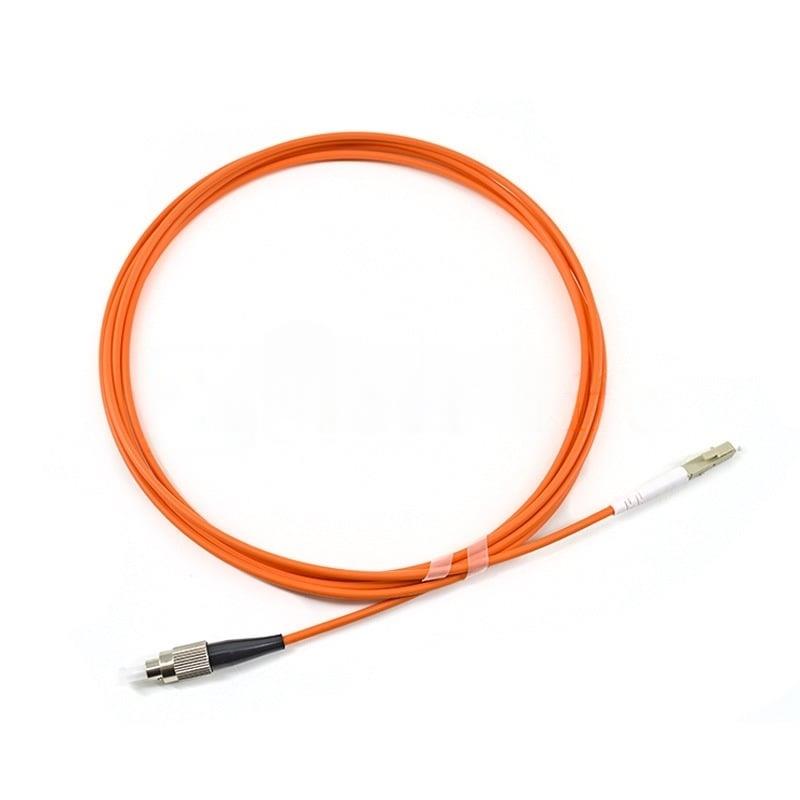

Customized OM2 Multimode Simplex LC/SC/FC/ST Fiber Optic Patch Cable
OM2 Multimode Simplex Fiber Optic Patch Cable uses a 50-micron fiber core that supports data rates up to 10Gbps over distances of up to 550 meters.
$1.60
Simplex OM2 Multimode LC/SC/FC/ST Fiber Optic Patch Cable
The OM2 Multimode Simplex Fiber Optic Patch Cable is designed for medium to short-distance optical communication, featuring a 50-micron core that supports higher bandwidth and longer transmission distances than OM1. It supports data rates up to 10Gbps over distances of up to 550 meters, making it ideal for high-bandwidth, unidirectional data transmission.
The simplex design contains a single fiber, perfect for one-way communication between devices such as transmitters and receivers. This cable is commonly used in applications like fiber testing, optical sensors, Local Area Networks (LANs), and data centers.
Specifications
| Connector Type | LC/SC/ST/FC | Polish Type | UPC/APC |
| Fiber Count | Simplex | Fiber Mode | OM2 50/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 550m At 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Cable Jacket | PVC/LSZH/OFNP | Cable Diameter | 0.9/2.0/3.0mm |
Features
Long-tail protection
Integrated craftsmanship, high toughness and long thread tail, strong and durable without breaking
Precision polishing
Ensures that the center of the optical fiber is polished
Fiber patch cord testing
There are no scratches or defects on the surface of the optical fiber
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
