OM5 Multimode Simplex Fiber Patch Cable – Custom Length, Connector & Jacket
OM5 Multimode Simplex Fiber Optic Patch Cable with full customization of LC/SC/FC/ST connectors, length, diameter & jacket for high-speed 40G/100G data centers.
$3.81
OM5 Multimode Simplex Fiber Patch Cable – Custom Length, Connector & Jacket
The OM5 Multimode Simplex Fiber Optic Patch Cable from SunmaFiber is engineered for next-generation high-speed data transmission and offers full customization to meet diverse networking requirements. Unlike traditional OM3 and OM4 cables, OM5 wideband multimode fiber (WBMMF) is optimized for 850nm–950nm wavelengths, delivering greater transmission efficiency and flexibility in data center applications. It supports 40G, 100G, and future 400G links over shorter distances, making it ideal for high-density, scalable network architectures.

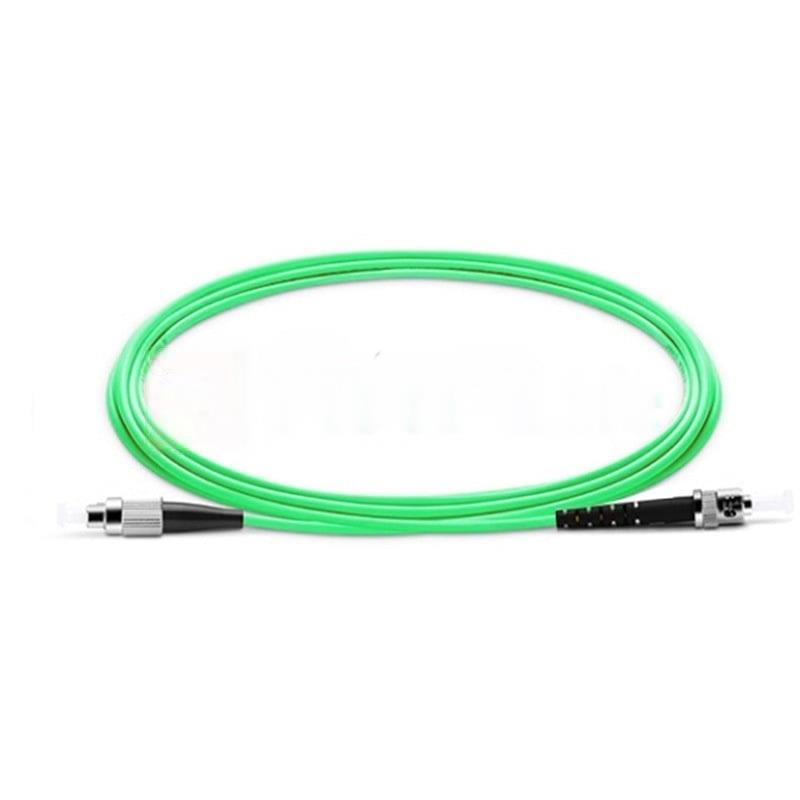

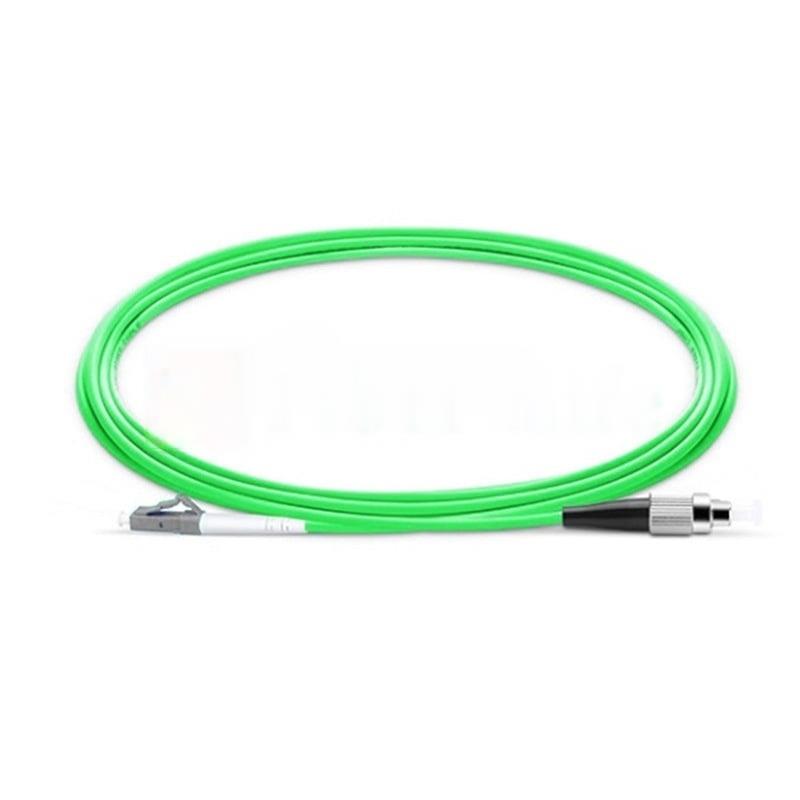

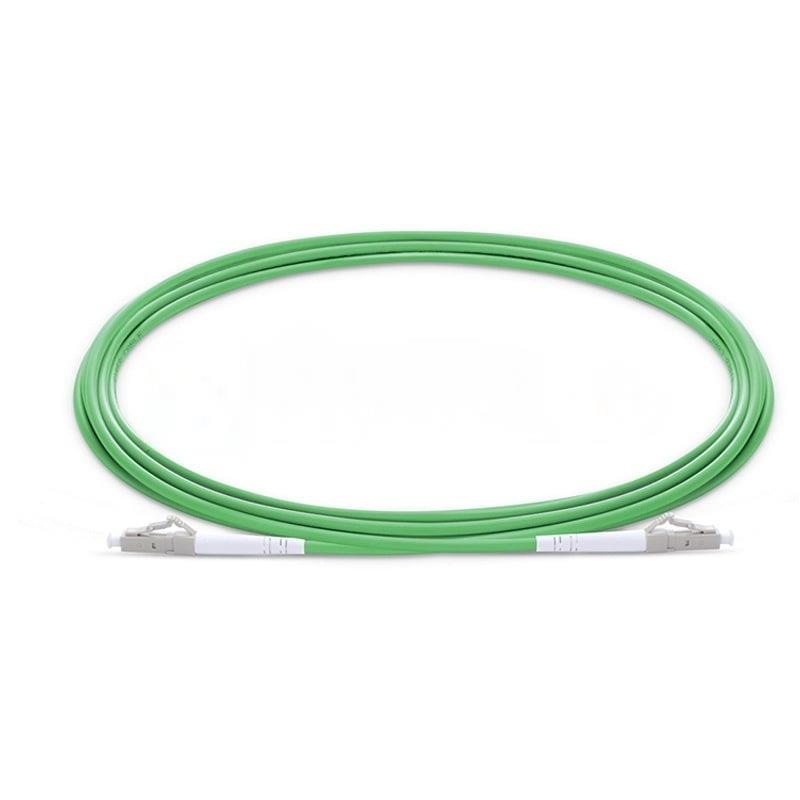

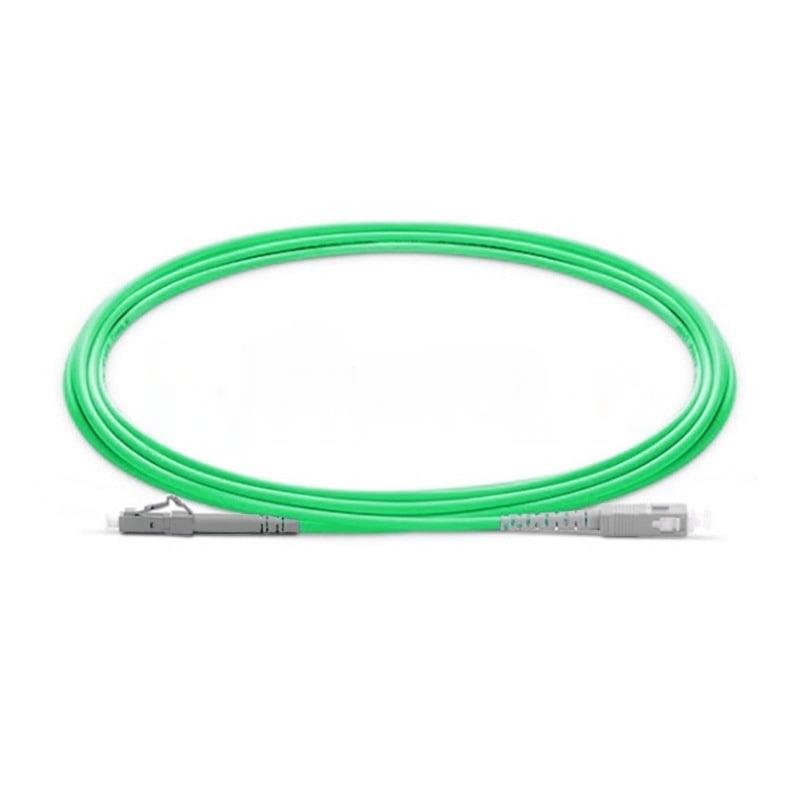

Customers can freely customize LC/SC/FC/ST connectors, cable length, outer diameter, and jacket material (PVC, LSZH, OFNP, etc.), ensuring complete adaptability for unique deployment environments. With low insertion loss, excellent return loss, and superior bending performance, this OM5 fiber patch cable ensures high performance, minimal signal degradation, and reliable operation even under demanding conditions.
Typical applications include data centers, enterprise networks, cloud computing environments, and high-bandwidth transmission systems, where space-saving, cost-effective, and future-proof multimode connectivity is essential.
Specifications
| Connector A | LC/SC/FC/ST/UPC/APC | Connector B | LC/SC/FC/ST/UPC/APC |
| Fiber Count | 1 Fiber | Fiber Grade | Bend Insensitive |
| Fiber Mode | OM5 50/125μm | Wavelength | 850/1300nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 Times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
| Attenuation at 850nm | 3.5dB/km | Attenuation at 1300nm | 1.5dB/km |
| Operating Temperature | -10 ~ +70°C | Storage Temperature | -40 ~ +85°C |
