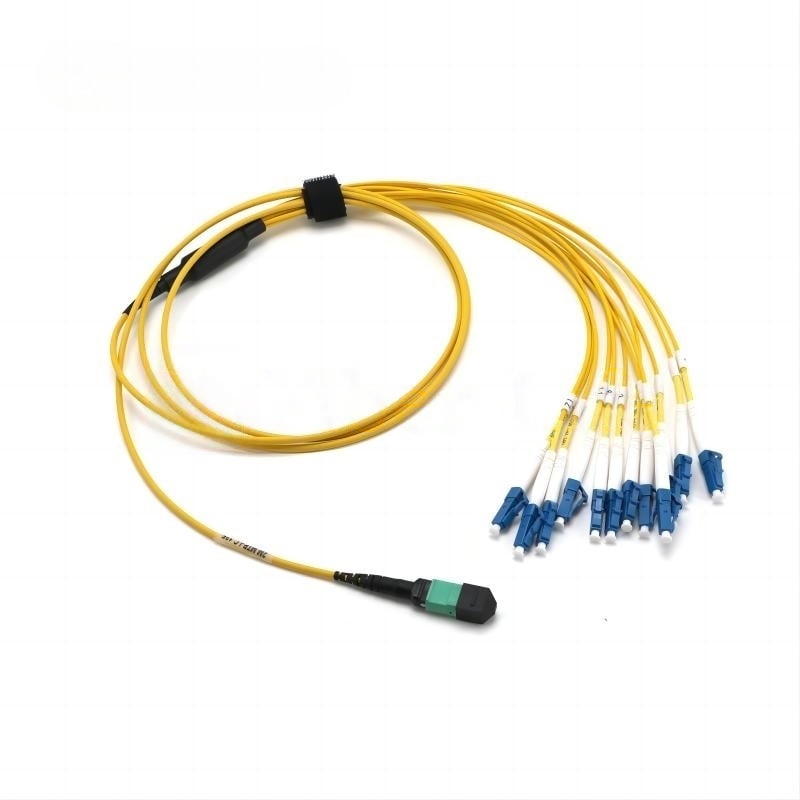

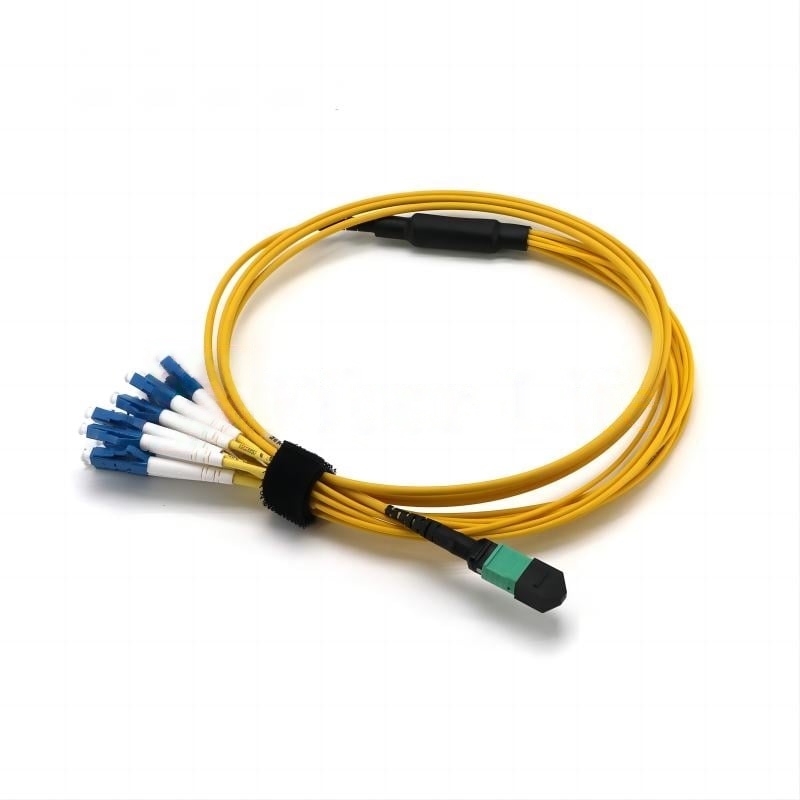

OS2 SingleMode MPO-12 Breakout Cable, Yellow
The OS2 SingleMode LC/SC/FC/ST to MPO-12 Breakout Cable offers high-speed, long-distance connectivity for data centers and telecom networks, with flexible, high-density fiber management solutions.
$38.90
OS2 SingleMode LC/SC/FC/ST To MPO-12 Breakout Cable, Yellow
The OS2 SingleMode LC/SC/FC/ST to MPO-12 Breakout Cable is a high-performance fiber optic solution designed for long-distance, high-speed communication in data centers, telecommunications systems, and enterprise networks. Featuring OS2 single-mode fiber, it supports long-range transmission with low loss and high bandwidth, making it ideal for applications requiring distances up to 10 kilometers or more.
The cable includes LC, SC, FC, or ST connectors on individual fibers for flexible device connections, while the MPO-12 connector consolidates 12 fibers into a single interface for high-density installations. The breakout design simplifies cable management by allowing the MPO-12 to branch out into separate fibers, providing an efficient, scalable solution for high-performance, long-distance networks.
Specifications
| Connector A | MPO | Connector B | LC/SC/FC/ST |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Glass Fiber | Corning SMF-28® Ultra(G.657.A1) | Minimum Bend Radius | 10mm |
| Trunk Diameter | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| MTP Connector IL | ≤0.35dB | LC/SC/FC/ST Connectors IL | ≤0.3dB |
| MTP Connector RL | ≥60dB(APC) ≥45dB(UPC) |
LC/SC/FC/ST Connectors RL | ≥60dB(APC) ≥50dB(UPC) |
Features
12-Fiber Mini-Core Cable structure
MTP Hybrid Harnesses Fiber Patch Cables are terminated with MTP connector on one end and other end with LC, FC, SC, ST, or MTRJ connectors to meet a variety of fiber cabling requirements.
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
