OS2 SingleMode MPO-12 Trunk Cable, Yellow
OS2 SingleMode MPO-12 Trunk Cable enables high-speed, long-distance connections for data centers, supporting 10Gbps, 40Gbps, and 100Gbps transmissions with low latency and high performance.
$54.00

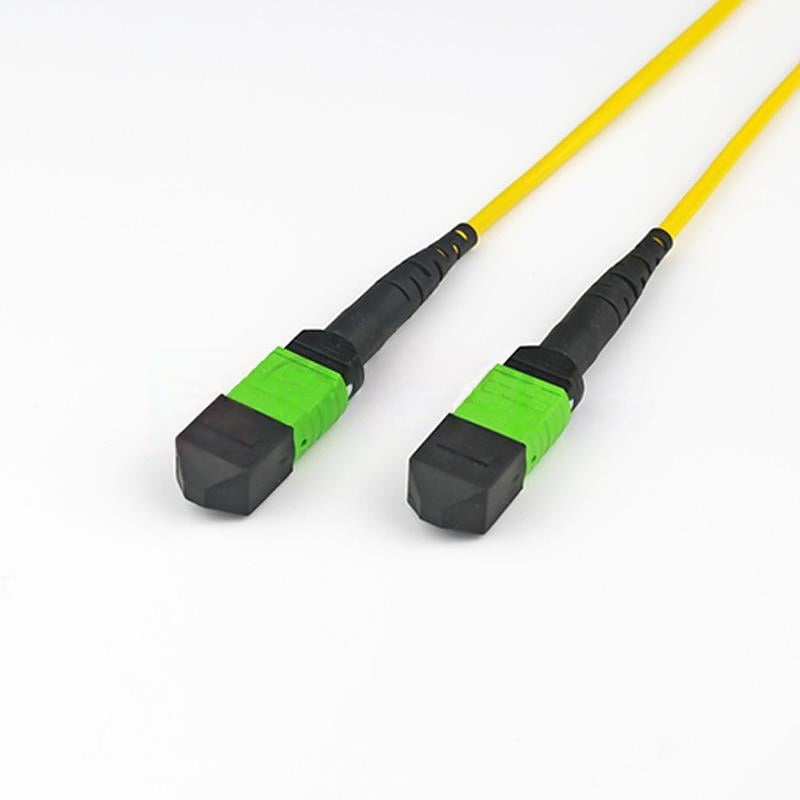

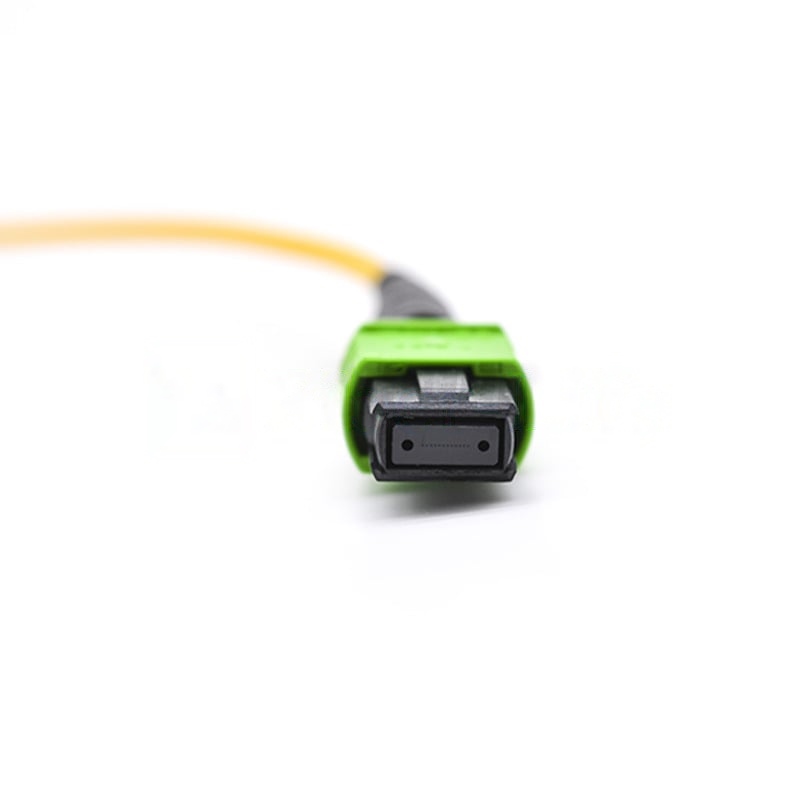

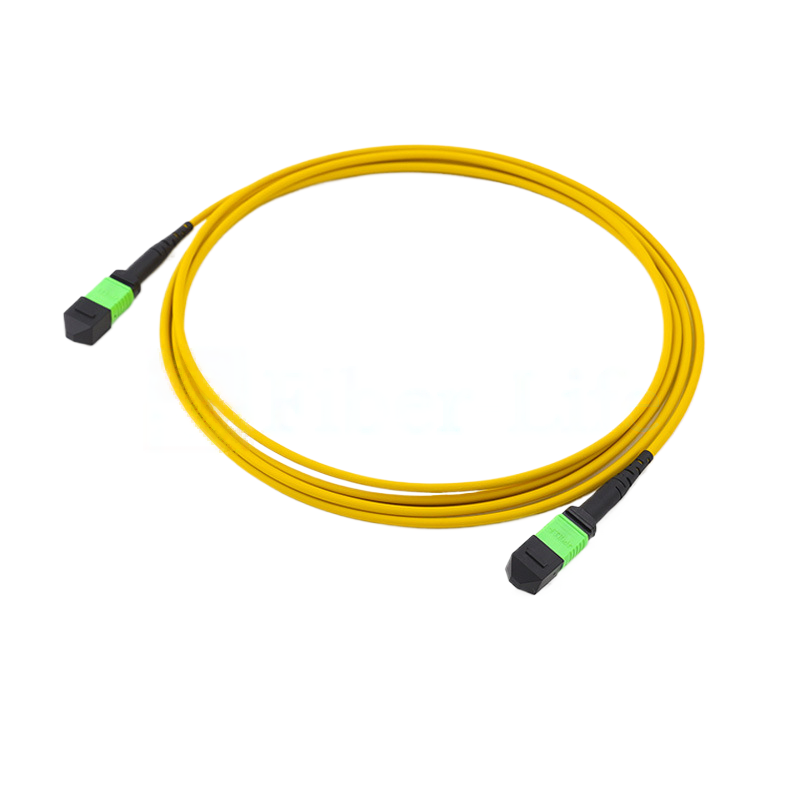

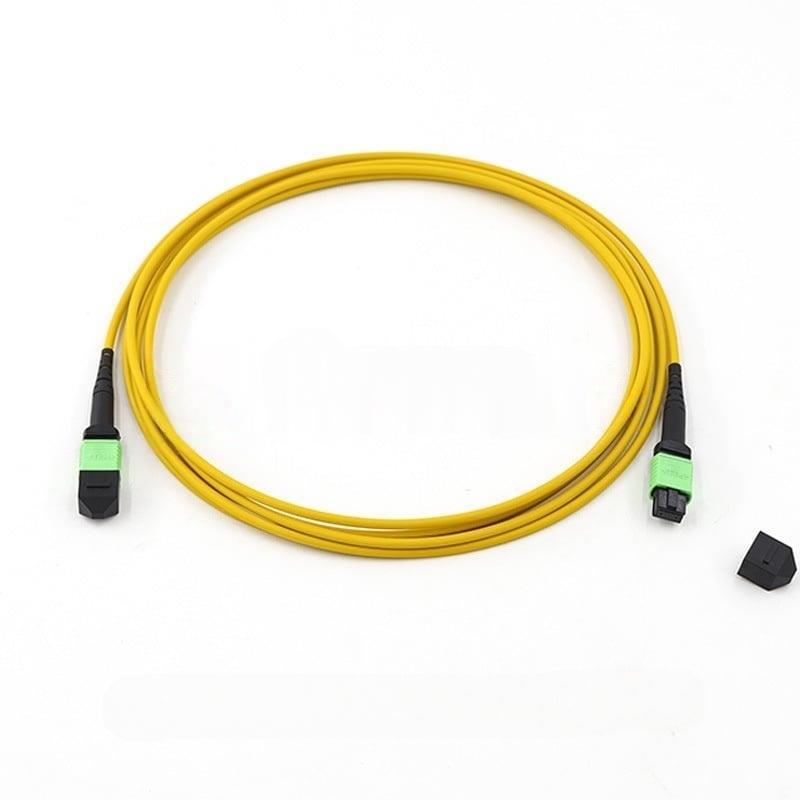

OS2 SingleMode MPO-12 To MPO-12 Trunk Cable, Yellow
The OS2 SingleMode MPO-12 Trunk Cable is a high-performance fiber optic trunk cable designed for long-distance and high-bandwidth applications, commonly used in data centers, communication infrastructure, and high-performance network environments. Featuring OS2 single-mode fiber, it offers low attenuation and high bandwidth capabilities, supporting high-speed transmissions of 10Gbps, 40Gbps, and 100Gbps.
The cable is equipped with two 12-fiber MPO connectors, enabling high-density, rapid connections in compact spaces. As a trunk cable, it links patch panels and devices to create a high-speed backbone, simplifying cabling structures and conserving space while supporting long-distance transmission. The OS2 MPO-12 Trunk Cable is ideal for use between servers, switches, and storage devices in data centers and enterprise networks, meeting the demands for high bandwidth and low latency in modern networking environments.
Specifications
| Connector A | MPO | Connector B | MPO |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Glass Fiber | G.657.A1 | Minimum Bend Radius | 10mm |
| Trunk Diameter | 3.0mm | Polish Type | APC/UPC |
| Insertion Loss (dB) | ≤0.35dB | Return Loss (dB) | ≥60dB (APC) / ≥45dB (UPC) |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 80°C (-40 to 176℉) |
Features

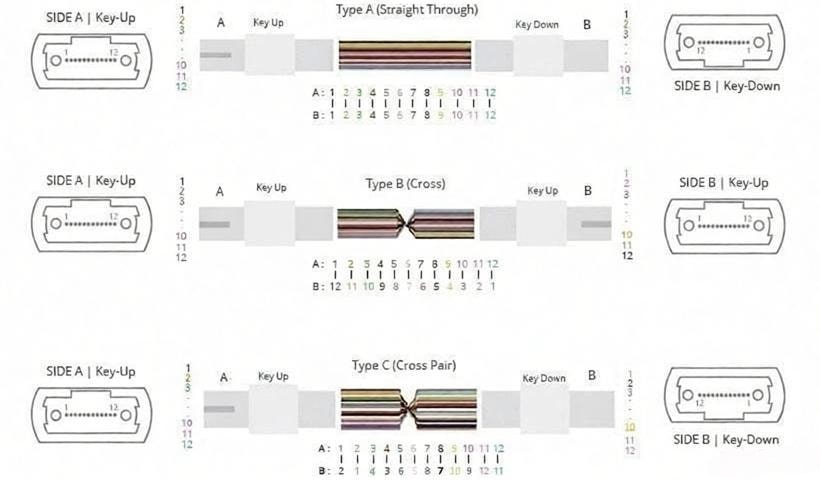

Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

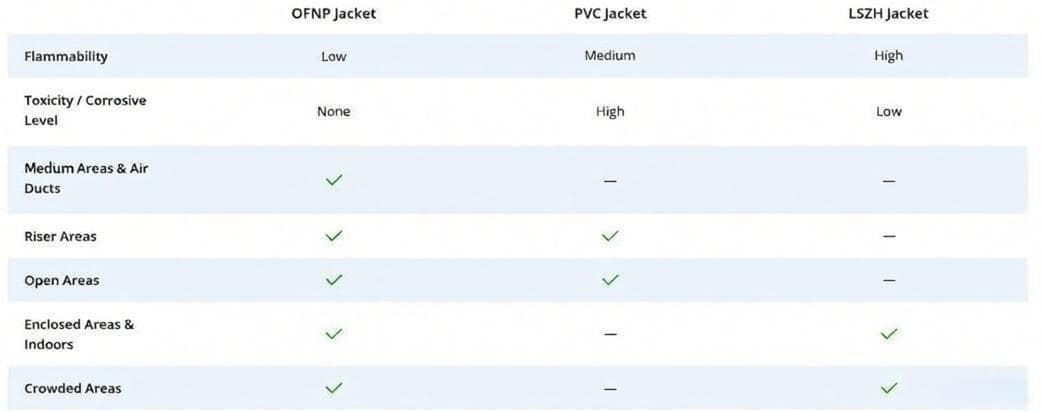

Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
Related Products
The OS2 SingleMode LC/SC/FC/ST to MPO-12 Breakout Cable offers high-speed, long-distance connectivity for data centers and telecom networks, with flexible, high-density fiber management solutions.
OM3 Multimode MPO-12 Trunk Cable for high-speed data transmission, supporting 100G Ethernet, ideal for data centers and networks with high-density, low-latency connections.

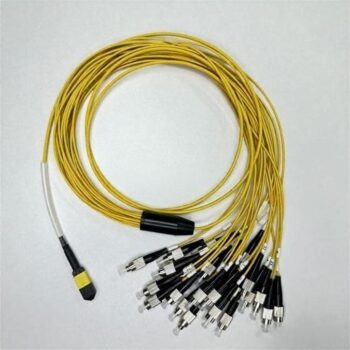

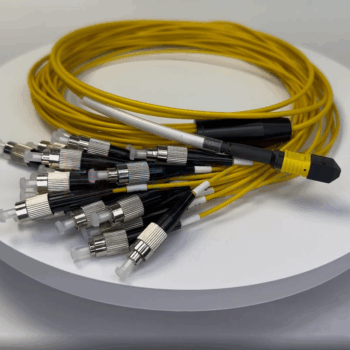

High-performance OS2 SingleMode LC/SC/FC/ST to MPO-24 breakout cable for data centers, offering low-attenuation, long-distance transmission, and efficient high-density fiber management.

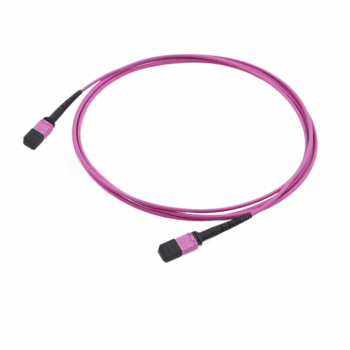

OM4 Multimode MPO-24 Trunk Cable for high-speed data transmission, supporting 100G/400G Ethernet, ideal for data centers and networks with high-density, long-distance connectivity.
