QSFP-DD 800GBASE-DR8 PAM4 1310nm 500m DOM MPO-16/APC SMF Optical Transceiver Module, Support 2 x 400G-DR4 and 8 x 100G-DR, Juniper Networks QDD-2X400G-DR4 Compatible
Shop at SunmaFiber for premium QSFP-DD 800GBASE-DR8 PAM4 1310nm 500m DOM MPO-16/APC SMF Optical Transceiver Module, Support 2 x 400G-DR4 and 8 x 100G-DR, Juniper Networks QDD-2X400G-DR4 Compatible. Enjoy global sales and free shipping on purchases over $200. Get reliable fiber optical transceiver module today.
$1,459.00

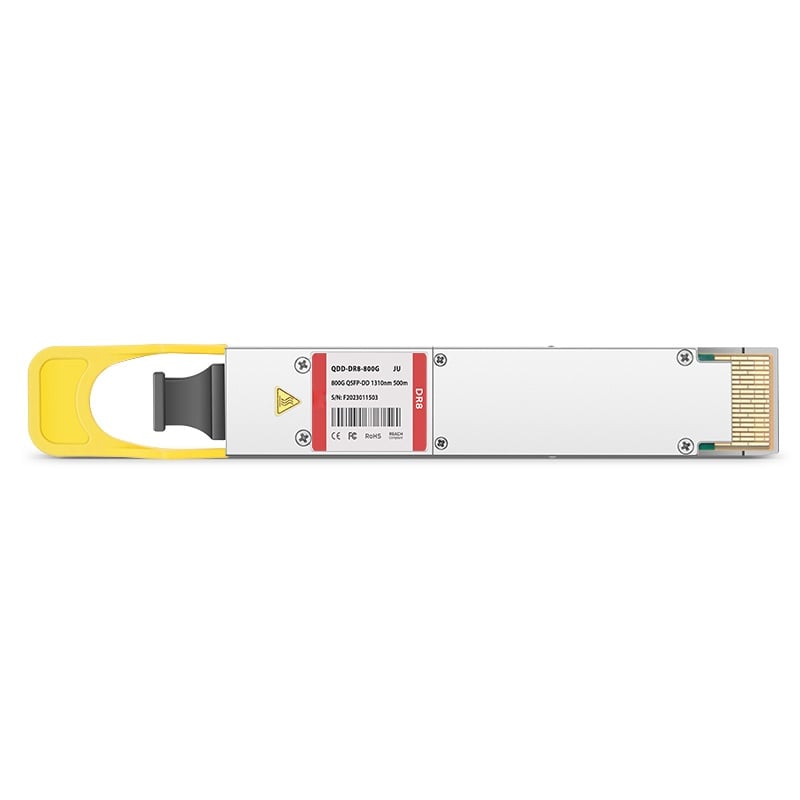

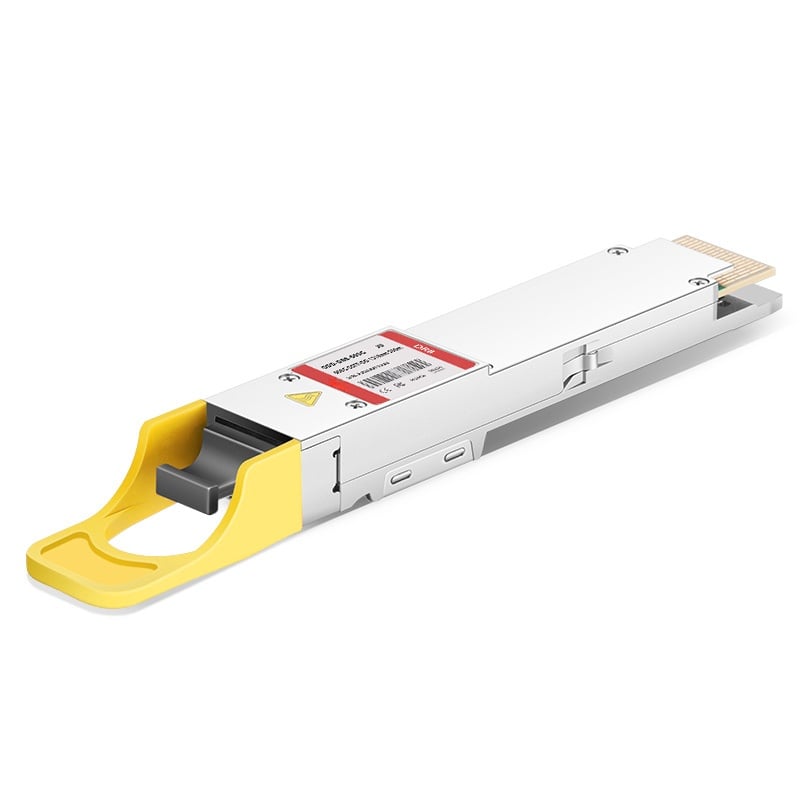

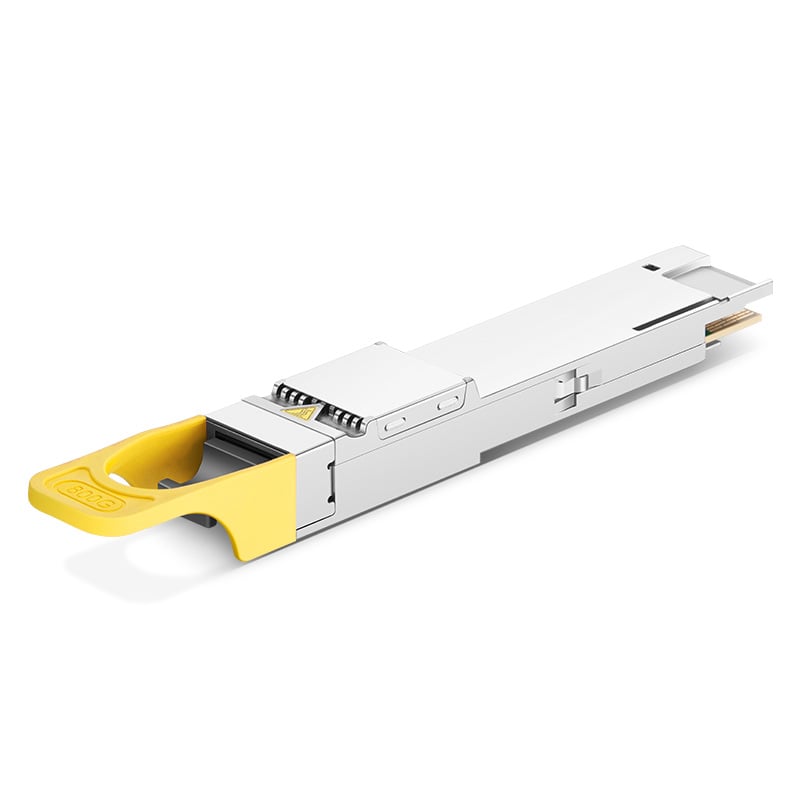

Juniper Networks QDD-2X400G-DR4 Compatible 800GBASE-DR8 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO-16 APC, DOM)
The 800GBASE-DR8 QSFP-DD Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over eight paires of singlemode fiber (SMF) with MPO-16 APC connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA.
The 800 Gigabit Ethernet signal is carried over eight parallel lanes by one wavelength per lane. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G DR4 or 8x 100G DR application.
Specifications
| Juniper Compatible | QDD-2X400G-DR4 | Vendor Name | SunmaFiber |
| Form Factor | QSFP-DD | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 500m |

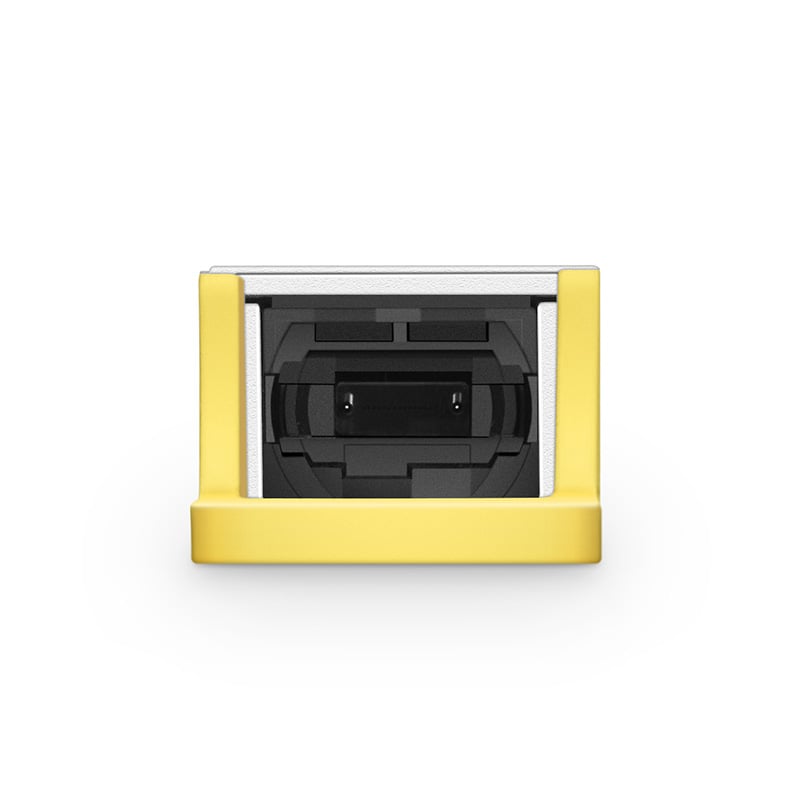

| Connector | MTP/MPO-16 APC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.9~4.0dBm | Minimum Receiver Power | -5.9dBm |
| Power budget | 3dB | Receiver Overload | 4dBm |
| Power Consumption | ≤16.5W | Extinction Ratio | >3.5dB |
| Packaging Technology | COB (Chip On Board) Packaging | Modulation Format | PAM4 |
| CDR (Clock and Data Recovery) | TX And RX Built-in DSP | Inbuilt FEC | Yes |
| Protocols | IEEE 802.3cu, IEEE P802.3ck, QSFP-DD MSA HW Rev 6.01, CMIS5.0 | Warranty | 5 Years |
Quality Certifications
.svg)
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Leading Performance and Quality for 800G

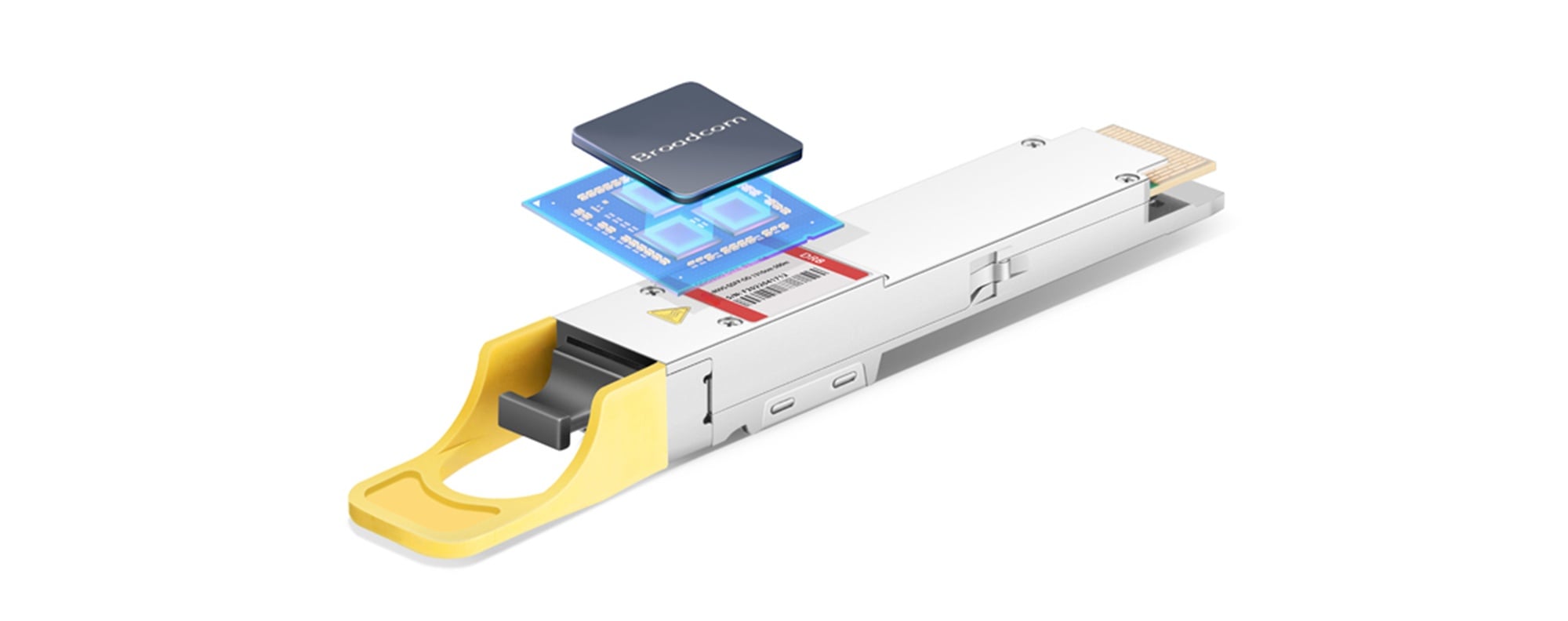

Built-in Broadcom DSP Chip, the QSFP-DD transceiver offers high-speed, and low-power in 800G links.
Broadcom 7nm DSP Chip≤16.5W53G EML Laser
Stable TransmissionLow Power ConsumptionEnsure Production
