SFP28 25GBASE-SR 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module, Cisco SFP-25G-SR-S Compatible
Shop at SunmaFiber for premium SFP28 25GBASE-SR 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module, Cisco SFP-25G-SR-S Compatible. Enjoy global sales and free shipping on purchases over $200. Get reliable fiber Optical Transceiver Module today.
$39.00
Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, DOM)
Cisco SFP-25G-SR-S compatible SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested on a series of Cisco switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.
Specifications
| Cisco Compatible | SFP-25G-SR-S | Vendor Name | SunmaFiber |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 850nm | Max Cable Distance | 100m@OM4/70m@OM3 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7.9~1.9dBm | Minimum Receiver Power | ＜-6dBm |
| Power Budget | -1.9dB | Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W | Extinction Ratio | ＞2dB |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | FEC Function | Support RS-FEC, FC FEC |
| Commercial Temperature Range | 0 To 70°C (32 To 158°F) | Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
| DDM/DOM | Supported | Warranty | 5 Years |
| Core Size | 50/125 µm | Packaging Technology | COB Packaging |
Quality Certifications
.svg)
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Small-scale Data Center Solution
Use the same type of optical modules as the original network to expand the data center, avoiding the addition of new module types and saving on network maintenance costs.
Upgrade Your Network One Site at a Time
Upgrade just one site to 100G gear, and still connect it to the existing 25G sites.
Connect New 100G Sites to Legacy 25G SitesFull Utilize Your 100G Port BandwidthRe-use 25G Optics in New 100G Ports

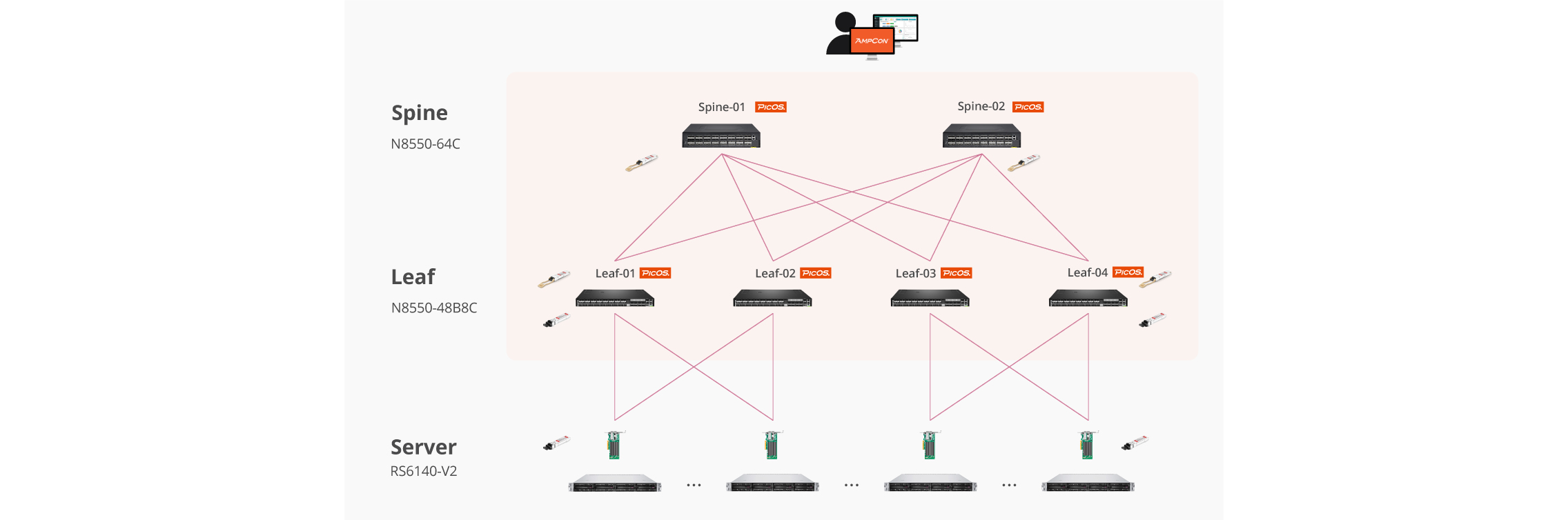

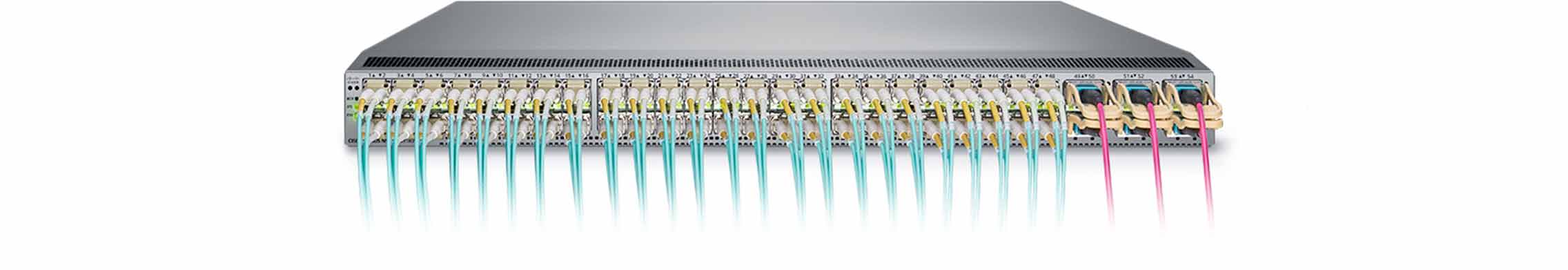

25G Connectivity for Data Center
Featured with low-power, high-density and high-speed, the SFP28 transceiver offers a popular way to help you quickly ramp up to 25G transmission.

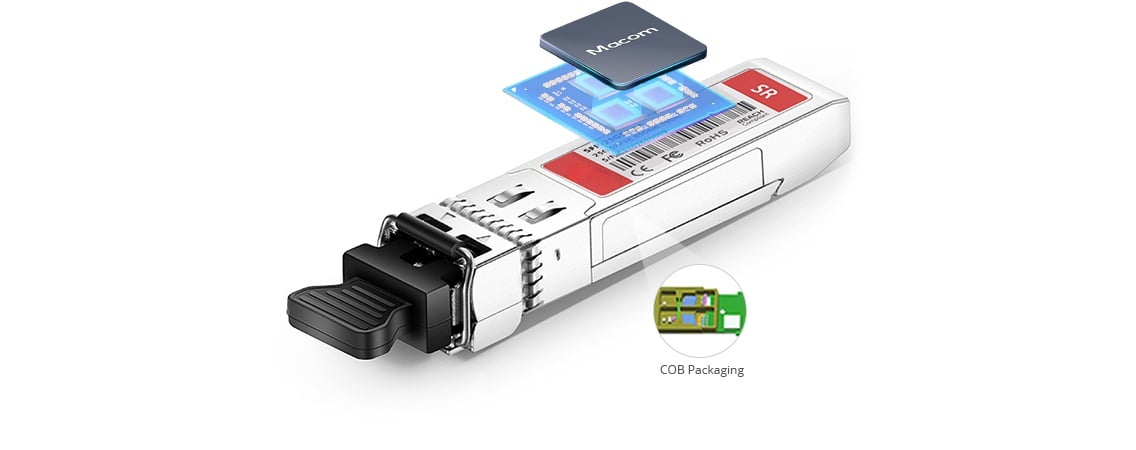

Leading Performance and Quality for 25G
Built-in Macom Chip, the SFP28 25G transceiver offers high-speed, and low-power in 25G links. Equipped with individually designed COB packaging.
Macom Chip≤1WCOB Packaging
Stable TransmissionLow Power ConsumptionGreat Airtightness
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Optical Spectrum TestEye Pattern TestBit Error Rate TestTemperature TestNo Packet Loss & CRCMask Margin >20%BER 1E-120~70°C
