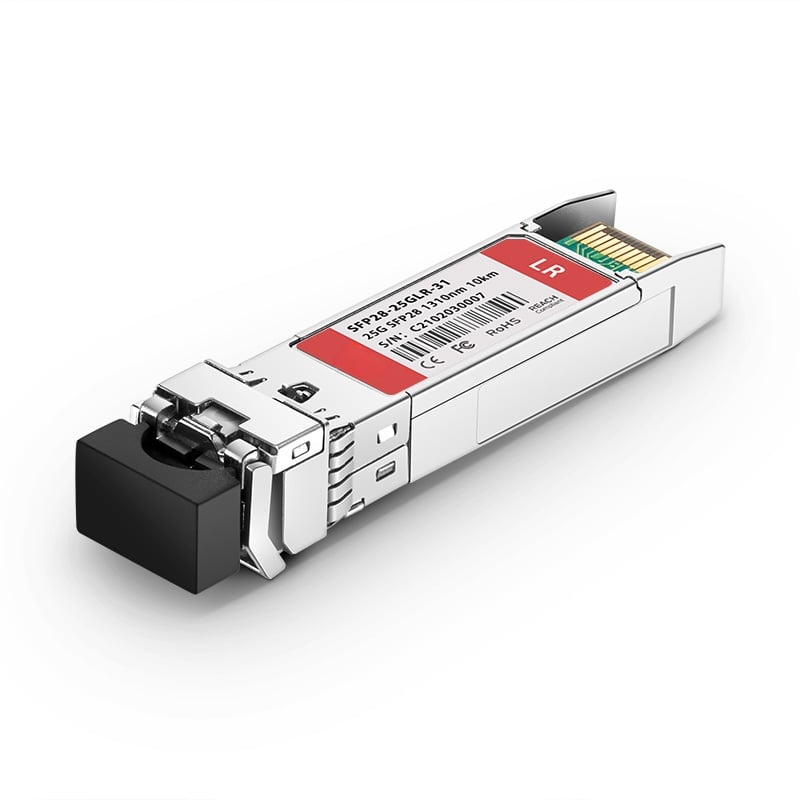

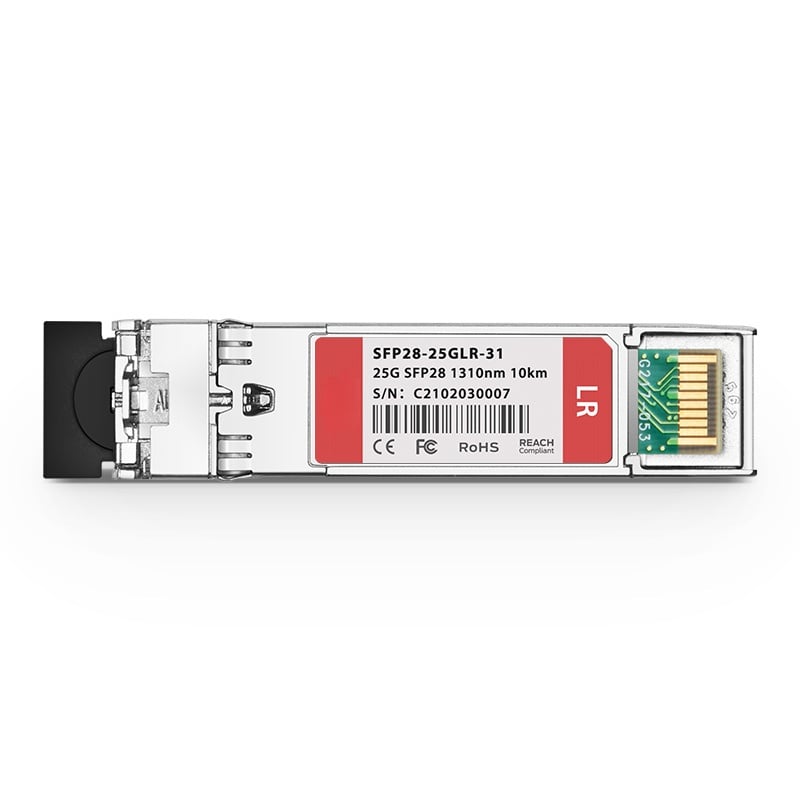

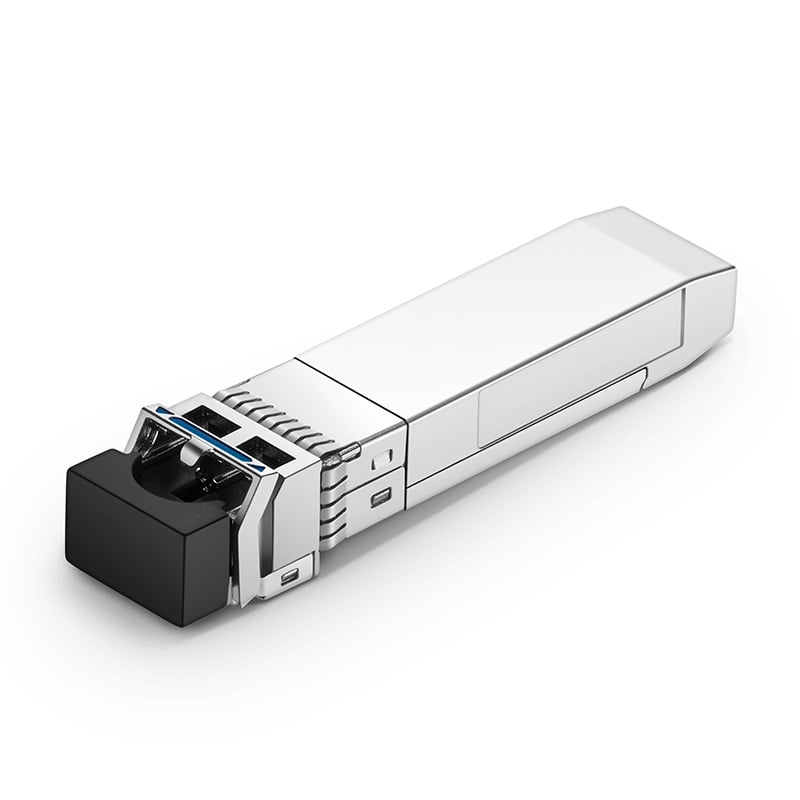

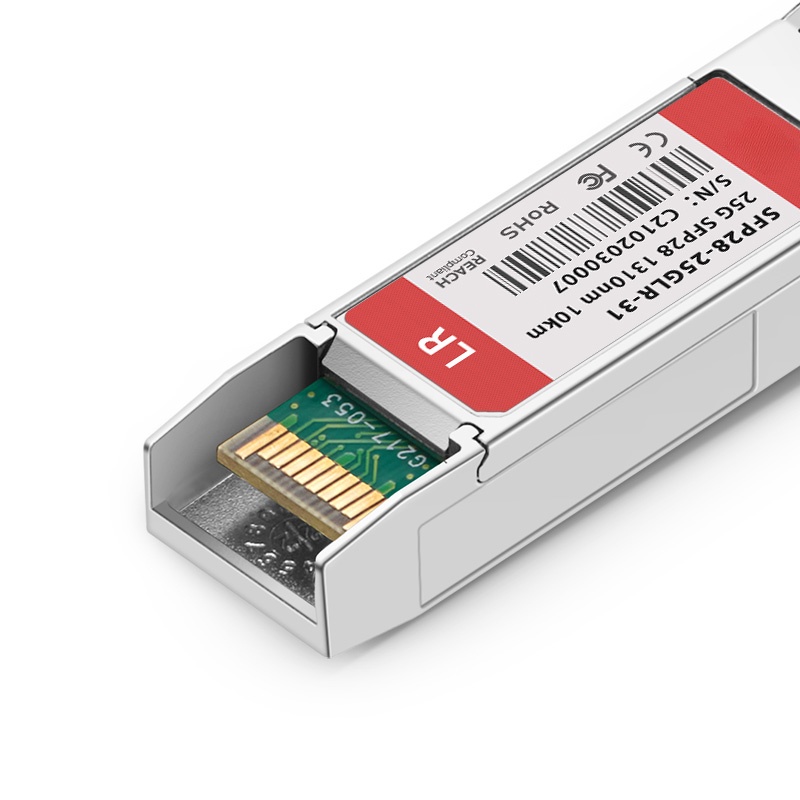

SFP28 25GBASE-LR 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module, Cisco SFP-25G-LR-S Compatible
Shop at SunmaFiber for premium SFP28 25GBASE-LR 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module, Cisco SFP-25G-LR-S Compatible. Enjoy global sales and free shipping on purchases over $200. Get reliable Optical Transceiver Module today.
$59.00
Cisco SFP-25G-LR-S Compatible 25GBASE-LR SFP28 DOM Optical Transceiver Module for Data Center and Telecom (SMF, 1310nm, 10km, LC, DOM)
The Cisco SFP-25G-LR-S compatible SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested in targeted switch, it is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Specifications
| Cisco Compatible | SFP-25G-LR-S | Vendor Name | SunmaFiber |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |

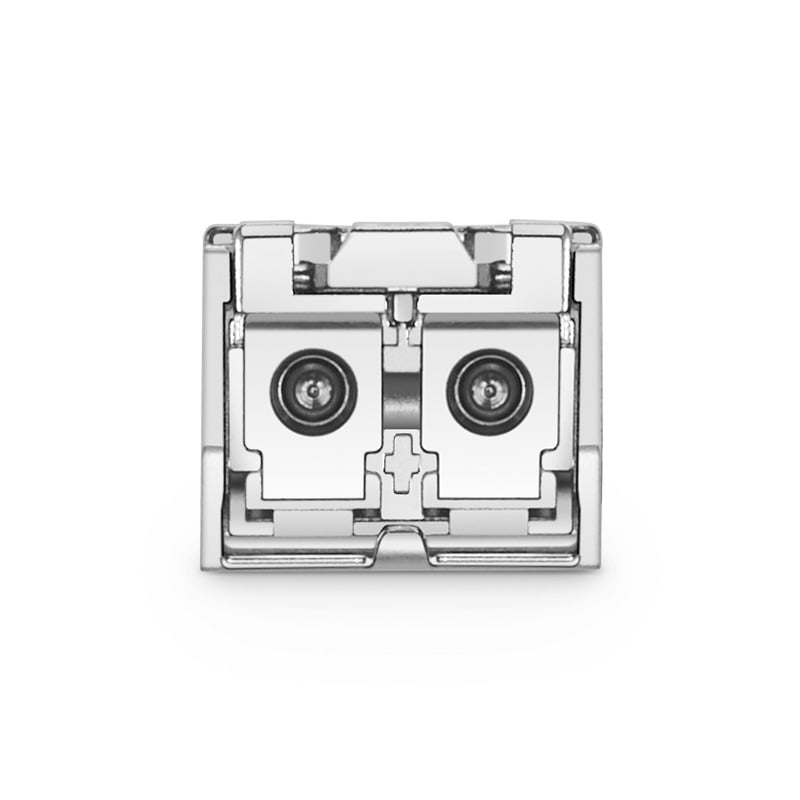

| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB 1310nm | Receiver Type | PIN |
| TX Power | -4~2dBm | Minimum Receiver Power | <-12dBm |
| Power budget | 8dB/td> | Receiver Overload | 2dBm |
| Power Consumption | <1.2W | Extinction Ratio | 3.5dB |
| CDR (Clock and Data Recovery) | TX and RX | FEC Function | Supported |
| Commercial Temperature Range | 0 To 70°C (32 To 158°F) | Protocols | MSA Compliant, CPRI, eCPRI |
| DOM | Supported | Warranty | 5 Years |
| Core Size | G.652 | Packaging Technology | COB Packaging |
Quality Certifications
.svg)
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features

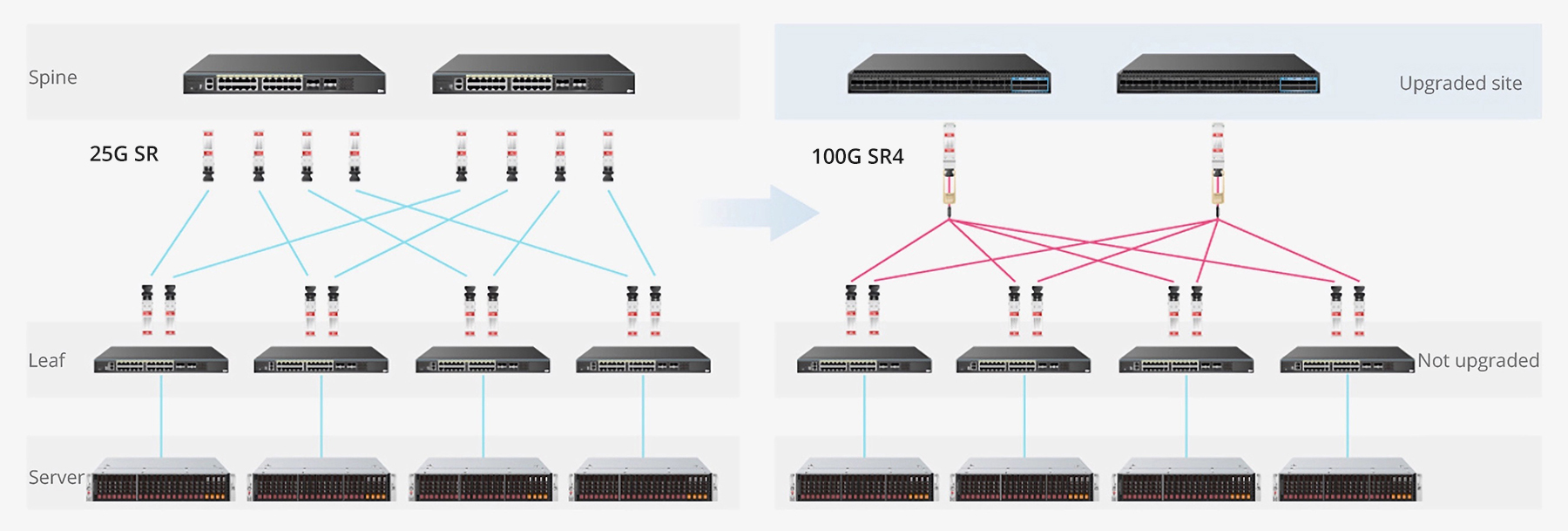

Upgrade Your Network One Site at a Time
Upgrade just one site to 100G gear, and still connect it to the existing 25G sites.
Connect New 100G Sites to Legacy 25G SitesFull Utilize Your 100G Port BandwidthRe-use 25G Optics in New 100G Ports

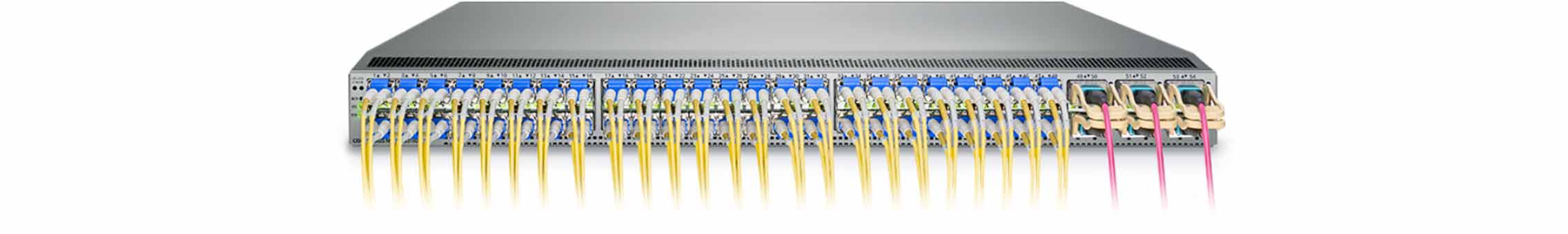

25G Connectivity for Data Center
Featured with low-power, high-density and high-speed, the SFP28 transceiver offers a popular way to help you quickly ramp up to 25G transmission.
Leading Performance and Quality for 25G

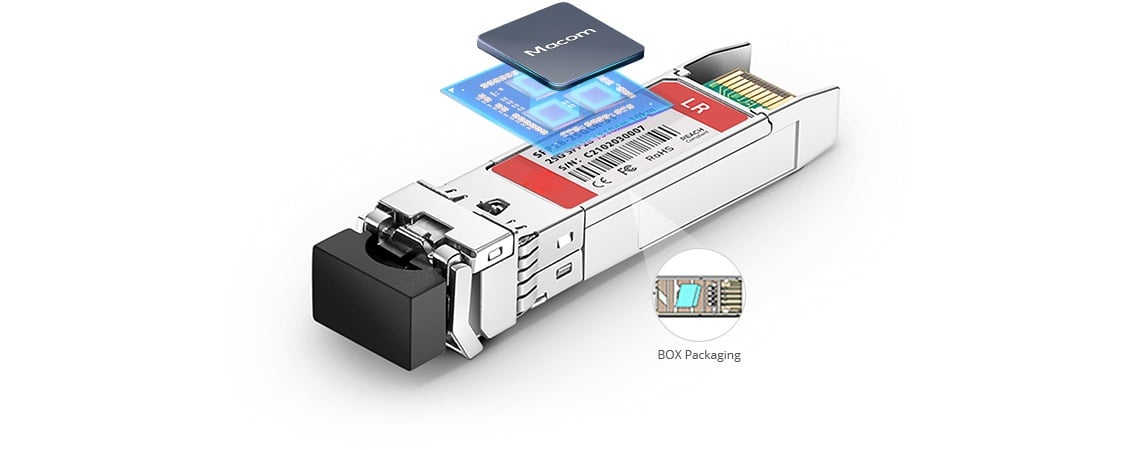

Built-in Macom Chip, the SFP28 25G transceiver offers high-speed, and low-power in 25G links. Equipped with individually designed BOX packaging.
Macom Chip≤1WBOX Packaging
Stable TransmissionLow Power ConsumptionGreat Airtightness

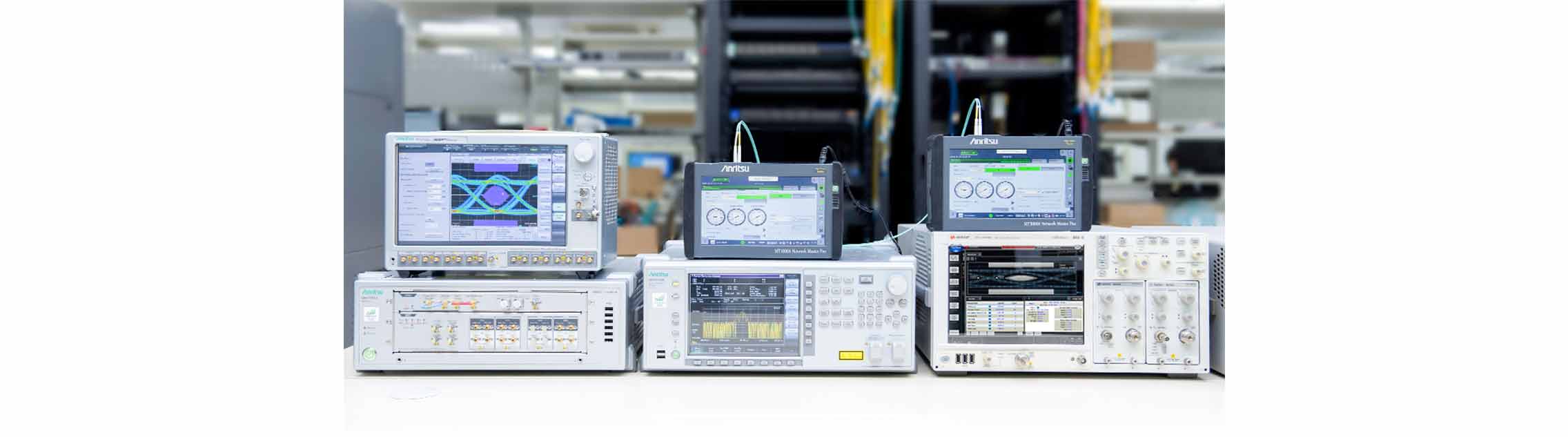

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Optical Spectrum TestEye Pattern TestBit Error Rate TestTemperature TestNo Packet Loss & CRCMask Margin >20%BER 1E-120~70°C
