Customized Single Fiber CWDM OADM, East and West
"Simplex CWDM OADM for East-and-West Traffic" is a device designed for unidirectional optical fiber communication, specifically for managing traffic in either the east or west direction. Utilizing Coarse Wavelength Division Multiplexing (CWDM) technology, it combines multiple wavelengths of light signals into a single optical fiber to increase transmission capacity. The Optical Add-Drop Multiplexer (OADM) function allows for the flexible insertion or removal of specific wavelengths without affecting others, enabling efficient management of unidirectional traffic in the east or west direction.
$78.00
Simplex CWDM OADM for East-and-West Traffic
“Simplex CWDM OADM for East-and-West Traffic” is a device designed for unidirectional optical fiber communication, specifically for managing traffic in either the east or west direction. Utilizing Coarse Wavelength Division Multiplexing (CWDM) technology, it combines multiple wavelengths of light signals into a single optical fiber to increase transmission capacity. The Optical Add-Drop Multiplexer (OADM) function allows for the flexible insertion or removal of specific wavelengths without affecting others, enabling efficient management of unidirectional traffic in the east or west direction.
Specification
| Number Of Channels | 1/2/4 | Wavelength | 1270-1610nm |
| Channel Spacing | 20nm | Channel Bandwidth | ± 6.5nm |
| Line Type | Single Fiber | Transmission Direction | West And East |
| Special Service | Monitor/1310nm/1550nm Port | Connector | LC/SC/FC/ST UPC/APC Polish |
| 1310nm Port Pass Band Width | 1260nm~1360nm | 1550nm Port Pass Band Width | 1520nm~1620nm |
| Technology | TFF (ThinFilm Filter) | Housing | FMU/1U Rack/ABS Module |
| Operating Temperature | -40 To 85°C(-40 To 185°F) | Storage | Temperature-40 To 85°C(-40 To 185°F) |

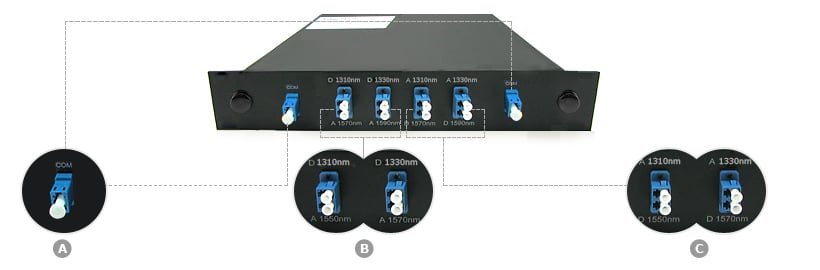

Example: LGX Module Simplex CWDM OADM East-and-West
Front Panel Details:
-
A(Common port):
Trunk input and output in both west and east traffic.
LC, SC, ST and FC connectors available.B(Add/Drop port on west):
Add and Drop on west.
LC, SC, ST and FC connectors available .
Compliant to ITU-T G.657A1 CWDM standard from 1270nm to 1610nm, with 20nm increase.C(Add/Drop port on east):
Add and Drop on east.
LC, SC, ST and FC connectors available.
Compliant to ITU-T G.657A1 CWDM standard from 1270nm to 1610nm, with 20nm increase.
NOTE:
- Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.
- We also provide optional port configurations such as Monitor Port for these multiplexers according to customer choice, need more details, please contact at [email protected].

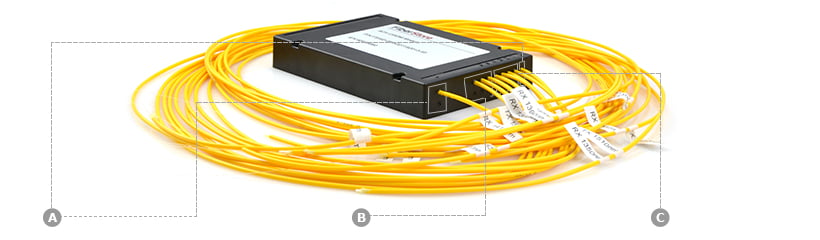

Example: ABS Pigtailed Module Simplex CWDM OADM East-and-West
Front Panel Details：
-
A(Common port):
Trunk input and output in both west and east traffic.
LC, SC, ST and FC connectors available.B(Add/Drop port on west):
Add and Drop on west.
LC, SC, ST and FC connectors available .
Compliant to ITU-T G.657A1 CWDM standard from 1270nm to 1610nm, with 20nm increase.C(Add/Drop port on east):
Add and Drop on east.
LC, SC, ST and FC connectors available.
Compliant to ITU-T G.657A1 CWDM standard from 1270nm to 1610nm, with 20nm increase.
Four Connectors for Custom-tailored Installations

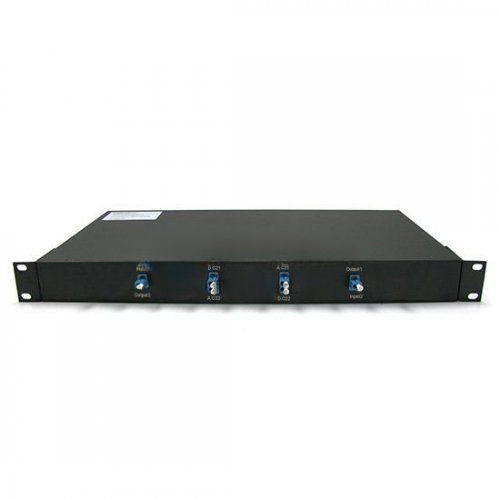

1U Rack Mount and FMU Plug-in Module Mux/Demux can be customized with LC and SC connectors, while ABS Pigtailed Module Mux/Demux supports LC, SC, ST and FC connectors.
LC/SC/ST/FCconnectors are available to meet different needs.UPC for digital signal transport. APC for RF video signal transport and FTTx.
