Customized Single Fiber DWDM OADM, East or West
Explore our online store for Single Fiber DWDM OADM, East or West in various channel, housing, wavelength, with worldwide distribution. Free shipping on orders over $200.
$76.00
Single Fiber DWDM OADM for East or West Traffic
“Simplex DWDM OADM for East or West Traffic” is a unidirectional optical fiber communication device designed to manage traffic in a single direction, either east or west. This device uses Dense Wavelength Division Multiplexing (DWDM) technology to combine multiple wavelengths of light signals into a single optical fiber, enhancing transmission capacity. Through the Optical Add-Drop Multiplexer (OADM), it can flexibly insert or remove specific wavelengths without affecting others, enabling efficient management of unidirectional traffic.
Specifications
| Number Of Channels | 1/2/4 | Wavelength | 1520nm-1570nm |
| Channel Spacing | 100GHz (0.8nm) | Channel Passband | ± 0.11nm |
| Line Type | Single Fiber | Transmission Direction | West Or East |
| Connector | LC/SC/FC/ST
UPC/APC Polish |
Special Service | Monitor/1310nm Port |
| 1310nm Port Pass Band Width | 1260nm~1360nm | Housing | FMU/1U Rack/ABS Modul |
| Technology | TFF (Thin Film Filter) | Temperature | Operating -40 To 85°C (-40 To 185°F)
Storage -40 To 85°C (-40 To 185°F) |

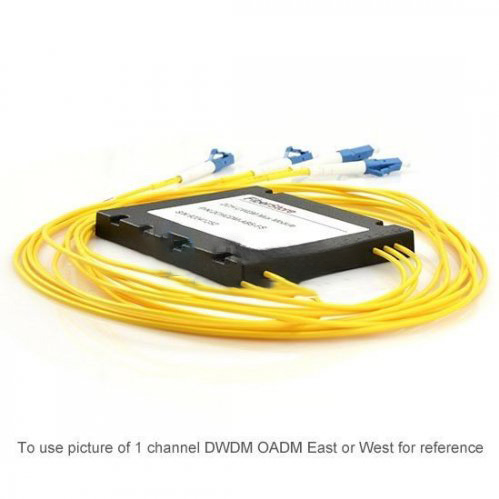

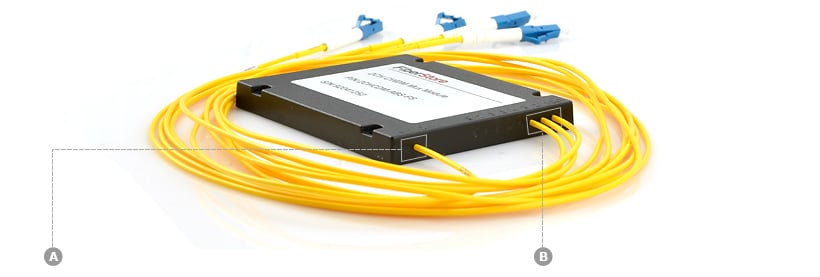

Example: ABS Pigtailed Module Simplex DWDM OADM East or West
Front Panel Details
-
A(Common port):
Trunk input and output in west and east traffic.
LC, SC, ST and FC connectors available.B(Add/Drop port for specific wavelength):
Add and Drop on west or east.
LC, SC, ST and FC connectors available.
Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.

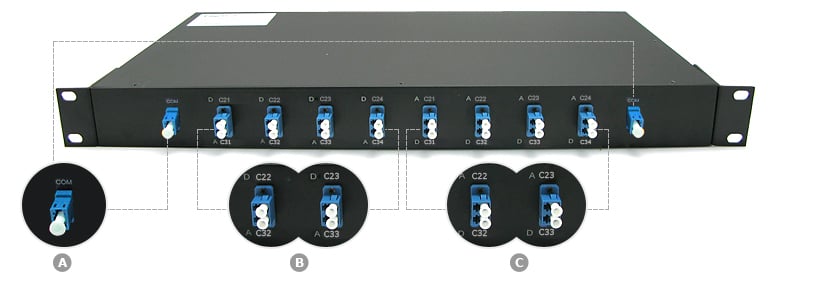

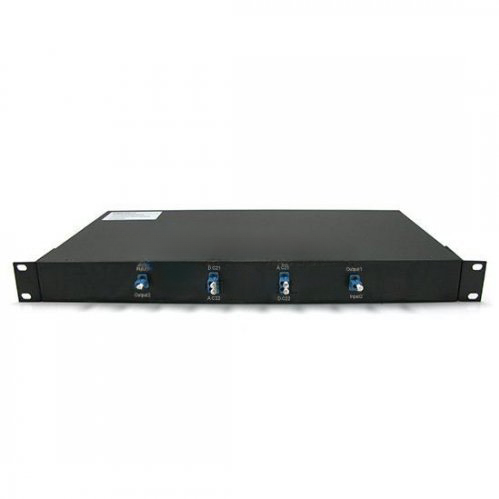

Example: 1RU Rack Mount Simplex DWDM OADM East or West
Front Panel Details
A(Common port):
Trunk input and output in both west and east traffic.
LC, SC, ST and FC connectors available.
B(Add/Drop port on west):
Add and Drop on west.
LC, SC, ST and FC connectors available.
Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.
C(Add/Drop port on east):
Add and Drop on east.
LC, SC, ST and FC connectors available.
Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.
NOTE:
- Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.
- We also provide optional port configurations such as: Monitor Port, 1310nm passband port and Express Port for these multiplexers according to customer choice, need more details, please contact at [email protected].

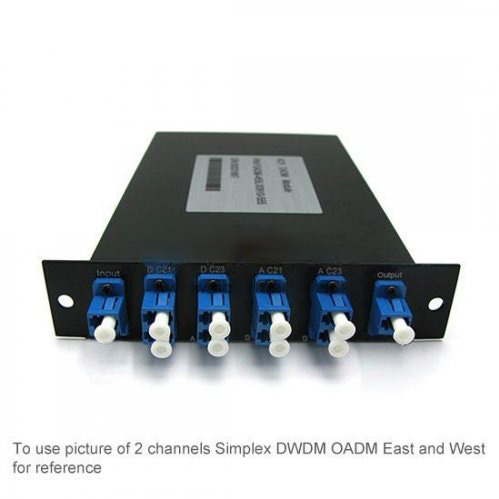

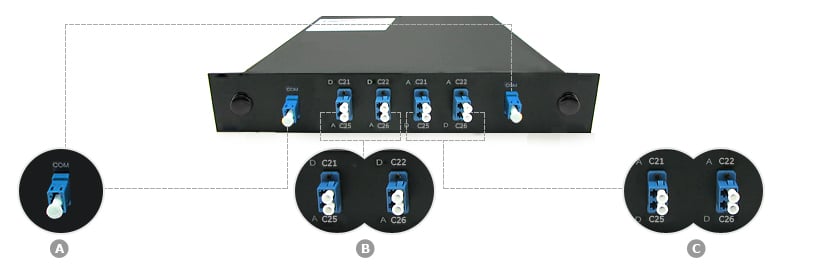

Example: LGX Module Simplex DWDM OADM East or West
Front Panel Details
-
A(Common port):
Trunk input and output in both west and east traffic.
LC, SC, ST and FC connectors available.B(Add/Drop port on west):
Add and Drop on west.
LC, SC, ST and FC connectors available .
Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.C(Add/Drop port on east):
Add and Drop on east.
LC, SC, ST and FC connectors available .
Compliant to ITU-T G.657A1 DWDM standard, 100GHz Grid.
NOTE:
- Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.
- We also provide optional port configurations such as: Monitor Port, 1310nm passband port and Express Port for these multiplexers according to customer choice, need more details, please contact at [email protected].

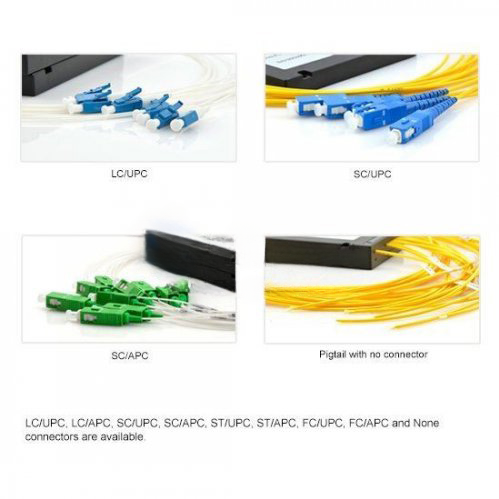

Four Connectors for Custom-tailored Installations
1U Rack Mount and FMU Plug-in Module Mux/Demux can be customized with LC and SC connectors, while ABS Pigtailed Module Mux/Demux supports LC, SC, ST and FC connectors.
LC/SC/ST/FCconnectors are available to meet different needs.UPC for digital signal transport. APC for RF video signal transport and FTTx.
