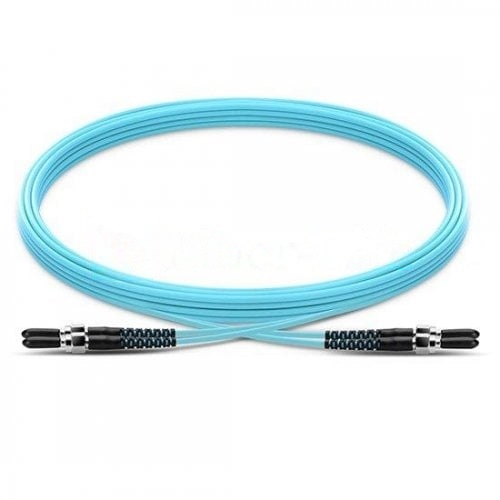

SMA905 To SMA905 Duplex OM3 Multimode Fiber Patch Cable
SMA905 To SMA905 Duplex OM3 Multimode Fiber Patch Cable is designed for high-speed data transmission in medical, military, and industrial applications. It features low insertion loss, high return loss, and excellent durability. Built with OM3 multimode fiber, it supports 10Gbps performance up to 300 meters. The robust SMA905 connectors ensure secure and stable connections, ideal for harsh environments. Custom lengths, cable diameters, and jackets are available upon request.
$32.40
SMA905 To SMA905 Duplex OM3 Multimode Fiber Patch Cable
Specifications
| Parameter | Value | |||||||
| The numerical Aperture of The Quartz Fiber | 0.22-0.37 | |||||||
| Fiber Diameter | 0.2mm | 0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.65mm | 0.8mm | |
| Minimum Bending Radius | 10D | |||||||
| Fiber Core (Coating Layer) | 1:1.05 or 1:1.4 | |||||||
| Numerical Aperture | 0.21-0.37 | |||||||
| Transmission (%/m0) | Transmission (0.20–0.4μm) | 85–98 | ||||||
| Visible Light (0.4–0.7μm) | 97–99 | |||||||
| Near-Infrared (0.76–1.6μm) | 90–99 | |||||||
| Helium-Neon (0.6328μm) | 99 | |||||||
| YAG (1.06μm) | 98 | |||||||
| Argon (0.5145μm) | 98 | |||||||
| Transmission Power | >130w (Fibre [email protected]) | |||||||
| Connector Type | Metal Ferrule or Zirconia Ferrule | |||||||
| Inner Hole Size | 0.127mm ~ 1.200mm | |||||||
| Concentricity | ≤3.0μm | |||||||
| Roundness | ≤2.0μm | |||||||
| Core Material | Stainless Steel (Metal Ferrule) or Cupronickel (Zirconia Ferrule) | |||||||
Note: The default ferrule of the connector is metal ferrule (without groove), and the default inner hole size is 127 μm with a tolerance of +3/–0μm.
