VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable
The VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable provides easy, high-speed connections with a VF-45 connector and LC duplex connector. Custom length.
$55.40

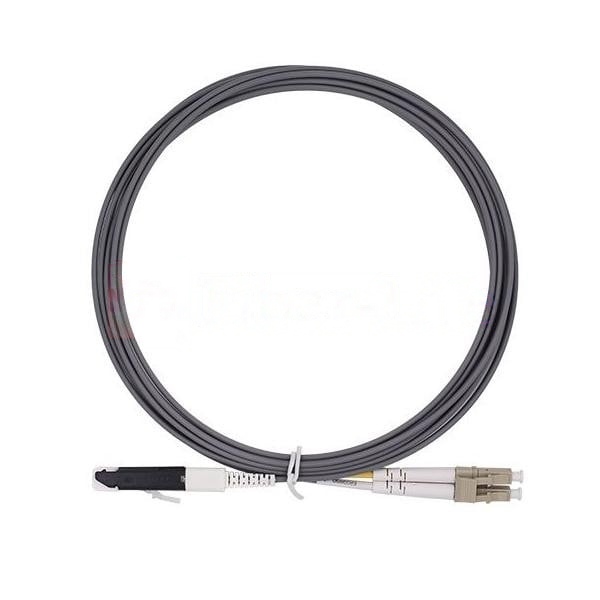

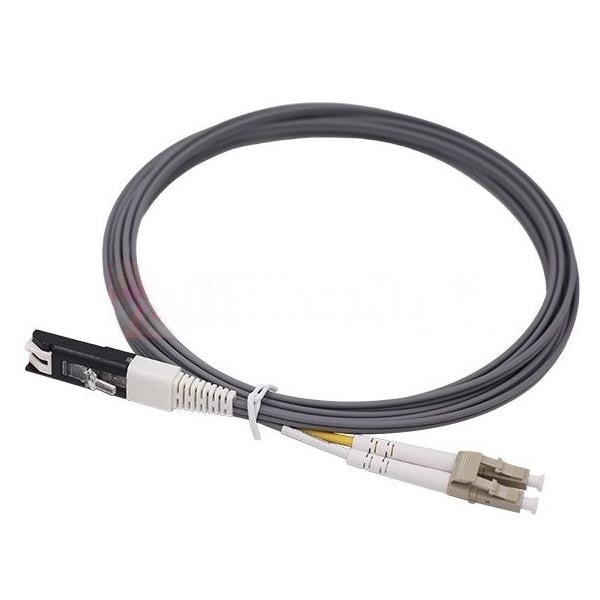

VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable, 2.0MM, LSZH, Grey

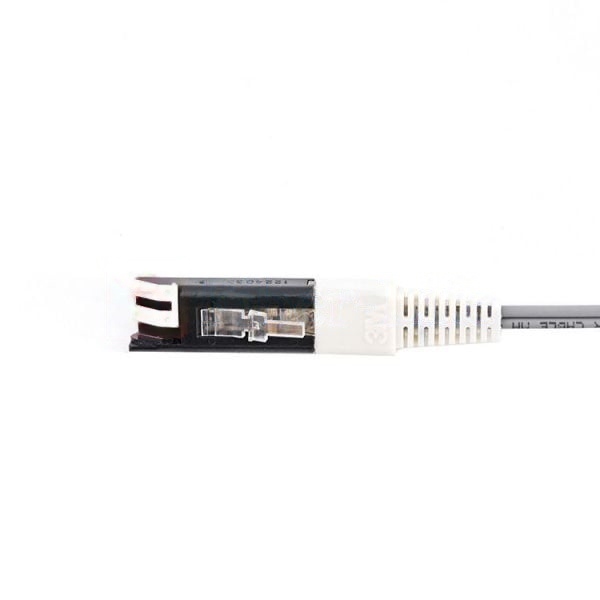

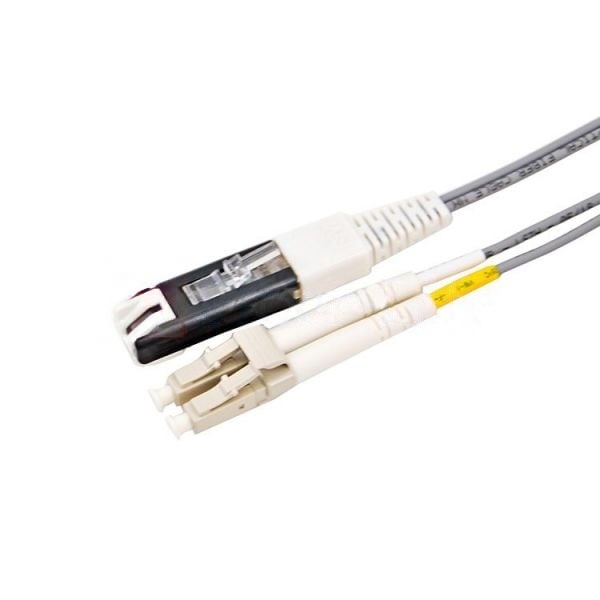

The VF45 To LC/UPC Duplex OM2 MultiMode Fiber Patch Cable combines this easy-to-use VF-45 connector on one end with an LC duplex connector on the other, designed for high-speed data transmission in multi-mode fiber optic networks. The VF-45 connector offers the same ease of use as an RJ-45 connector. The Volition VF-45 socket and fiber patch cable represent the latest duplex fiber optic interconnection for fiber-to-the-desk (FTTD) networks, designed to function similarly to an 8-pin modular socket. This brings the same simplicity to fiber optic applications as the RJ-45 interface does for copper cabling. VF-45 sockets can be field-terminated on distribution panels in telecom rooms or building horizontal wiring, with termination of a two-fiber cable taking less than one minute.
Specifications
| Item | Value |
|---|---|
| Fiber Type | OM2 |
| Connector Type | VF45-LC/UPC |
| Connector Style | Crimp, Polish |
| Attenuation | < 0.75dB max |
| Reflection | > 20dB max |
| Mating Durability | 500 Cycles, <0.75dB max |
| Strength of Coupling | > 33N, < 0.75dB max |
| Plug Cable Retention | Tensile load >66 N, Side Pull >6.6 N, <0.75dB max |
| Plug Flex | 100 Cycles, ±90 Degrees, 0.5kg, < 0.75dB max |
| Plug Twist | 10 Cycles, ±2.5 Revolutions, 15N, < 0.75dB max |
| Cold | -10°C for 96 Hours, < 0.3dB Increase |
| Heat | +60°C for 14 Days, < 0.3dB Increase |
| Thermal Cycling | -10°C to 60°C, 5 Cycles, < 0.3dB Increase |
| Vibration | 10 to 55 Hz, 30 min. Each Axis, < 0.3dB Increase |
| Features | Applications |
|---|---|
| Plug in Socket Design (No Adapter Required) | Data Center, CATV, Fiber Test Equipment |
| High Density Duplex Interconnection | LAN, Telecommunication Networks |
| V-Groove Connection and Injection Molding Parts | FTTx, Communication Rooms |
| VF-45 Latch Can Be Easily Lock On and Not Easy Drop Off | Fiber Optic Communication System, Defense Combat Readiness |
