MT To MTP/MPO Fiber Adapter
The 1×2 1310nm Single Window Multimode FBT Coupler Splitter With Steel Tube is a high-quality optical power-splitting device engineered for stable and efficient operation in 1310 nm multimode fiber networks. Utilizing advanced Fused Biconical Taper (FBT) technology, this splitter delivers low excess loss, accurate coupling ratios, stable power distribution, and reliable optical performance within the 1310 nm operating window.
$30.69
MT To MTP/MPO Fiber Adapter
The MT To MTP/MPO Fiber Adapter is designed to provide a precise and reliable mating interface between MT ferrules and MTP/MPO connectors, enabling stable optical connectivity in high-density fiber optic systems. Engineered with high-precision alignment features and low-loss optical performance, this adapter ensures consistent signal integrity for data centers, MTP/MPO cabling infrastructures, optical transceivers, and fiber array applications.
To accommodate different MTP/MPO configurations, the MT to MTP/MPO adapter is available in two versions:
- Version A: Compatible with 8-fiber, 12-fiber, and 24-fiber MTP/MPO connectors, ideal for standard data center cabling and duplex/parallel optical transmission.
- Version B: Designed specifically for 16-fiber MTP/MPO connectors, commonly used in advanced 400G/800G high-bandwidth applications.
With its compact, robust construction and easy installation process, this adapter provides a dependable solution for connecting MT ferrules to MTP/MPO male or female connectors across a wide range of high-performance optical systems.
Specifications
| Connector A | MT Ferrule | Connector B | MTP/MPO |
| Adapter Port | Single | Footprint | SC |
| Insertion Loss | ≤0.5dB | Durability | 1000 Times |
| Flammability Rate | UL 94V-0 | Working Temperature | -25 ~ +70°C |

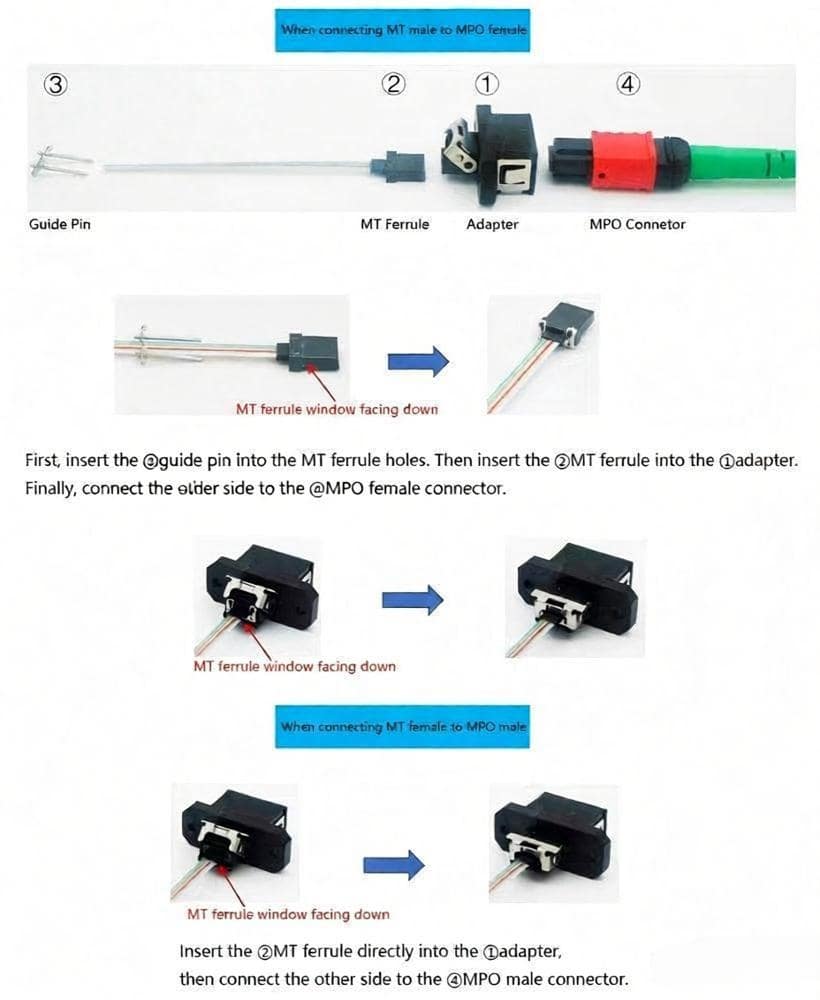

MT To MTP/MPO Installation Guide
