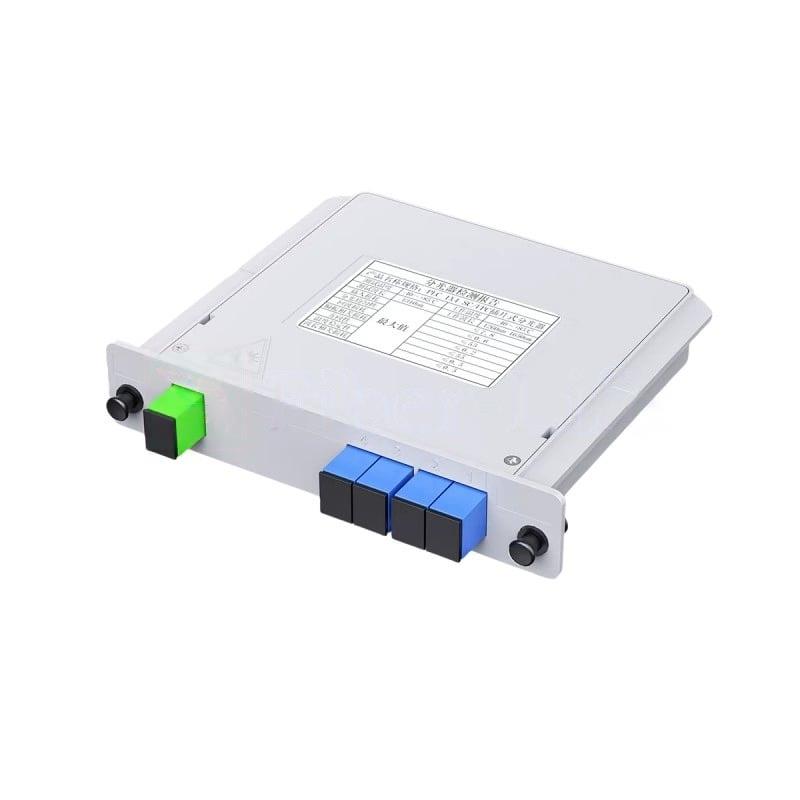

1×4 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×4 Singlemode Mini Plug-In, Blade Module PLC Splitter is a high-performance optical splitter designed for fiber access networks and FTTH deployments. It uses PLC (Planar Lightwave Circuit) technology to evenly divide a single optical input into four outputs with low insertion loss, high splitting uniformity, and excellent environmental stability. The mini plug-in blade-style module offers a compact form factor that allows for easy integration into standard fiber distribution boxes or panels. Compatible with G.657A1/G.652D singlemode fibers, this splitter is ideal for applications requiring efficient signal distribution in space-limited environments.
$14.80
1×4 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×4 Singlemode Mini Plug-In, Blade Module PLC Splitter is a high-performance optical splitter designed for fiber access networks and FTTH deployments. It uses PLC (Planar Lightwave Circuit) technology to evenly divide a single optical input into four outputs with low insertion loss, high splitting uniformity, and excellent environmental stability. The mini plug-in blade-style module offers a compact form factor that allows for easy integration into standard fiber distribution boxes or panels. Compatible with G.657A1/G.652D singlemode fibers, this splitter is ideal for applications requiring efficient signal distribution in space-limited environments.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
Related Products

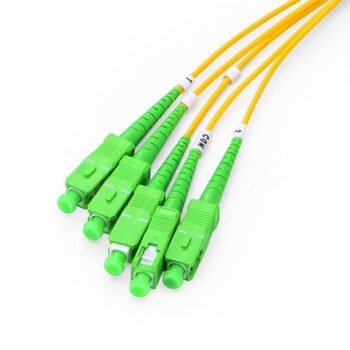

The 1×4 Singlemode ABS Box PLC Splitter is a high-performance optical device designed to evenly distribute optical signals from one input fiber to four output fibers in FTTx, PON, and CATV networks. Utilizing PLC (Planar Lightwave Circuit) technology, it ensures low insertion loss, high uniformity, and excellent stability across all output channels. Encased in a compact and durable ABS box, this splitter is ideal for indoor fiber distribution applications, offering easy installation, reliable performance, and long-term durability in various network environments.
The 1×8 Singlemode ABS Box PLC Splitter is an essential passive optical component designed to split one input fiber into eight uniform output fibers with high precision and stability. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it offers low insertion loss, excellent channel uniformity, and superior reliability for long-term performance. Encased in a rugged ABS box, this splitter is ideal for FTTx deployments, PON networks, and CATV systems, ensuring easy installation and consistent signal distribution in various indoor network environments.
The 1×64 Singlemode ABS Box PLC Splitter is a high-density optical power splitter designed to divide a single input fiber into 64 uniform output channels with exceptional precision and reliability. Built using advanced PLC (Planar Lightwave Circuit) technology, it offers low insertion loss, excellent signal uniformity, and stable performance across all outputs. Housed in a compact and durable ABS enclosure, this splitter is ideal for large-scale FTTx deployments, PON networks, and central office applications, providing a cost-effective and efficient solution for high-capacity optical signal distribution.

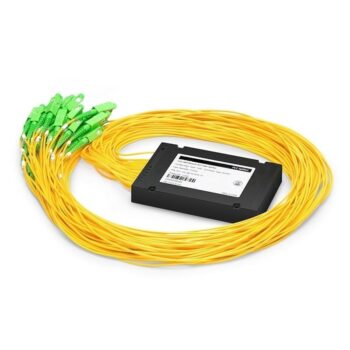

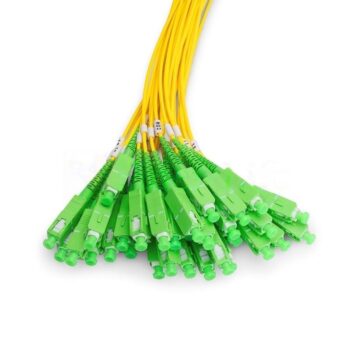

The 1×32 Singlemode ABS Box PLC Splitter is a reliable and high-precision optical device designed to distribute a single input signal evenly across 32 output fibers. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it ensures low insertion loss, excellent uniformity, and superior stability across all channels. Encased in a compact and robust ABS box, this splitter is ideal for FTTx networks, PON systems, and optical signal monitoring, offering easy installation, long-term durability, and consistent performance in various fiber optic distribution scenarios.
