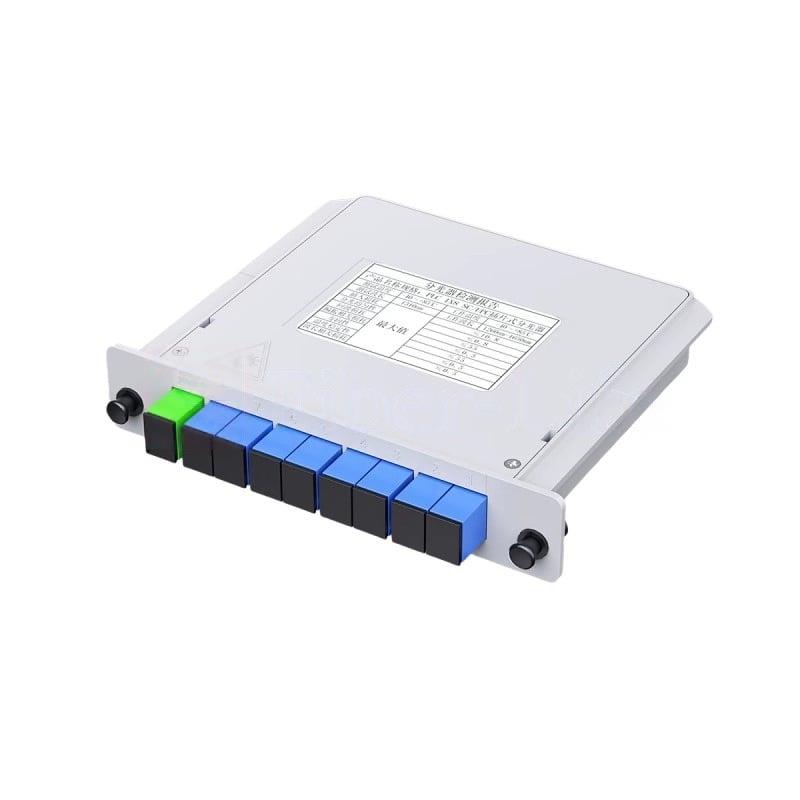

1×8 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×8 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and reliable optical splitter designed for efficient signal distribution in FTTx, PON, and optical communication networks. Built with planar lightwave circuit (PLC) technology, it ensures low insertion loss, high channel uniformity, and excellent stability across a wide wavelength range. The miniature plug-in blade module is ideal for space-constrained installations and enables quick integration into fiber termination boxes or distribution panels. This splitter is a dependable solution for expanding network capacity in FTTH, CATV, and LAN applications.
$20.10
1×8 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×8 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and reliable optical splitter designed for efficient signal distribution in FTTx, PON, and optical communication networks. Built with planar lightwave circuit (PLC) technology, it ensures low insertion loss, high channel uniformity, and excellent stability across a wide wavelength range. The miniature plug-in blade module is ideal for space-constrained installations and enables quick integration into fiber termination boxes or distribution panels. This splitter is a dependable solution for expanding network capacity in FTTH, CATV, and LAN applications.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
