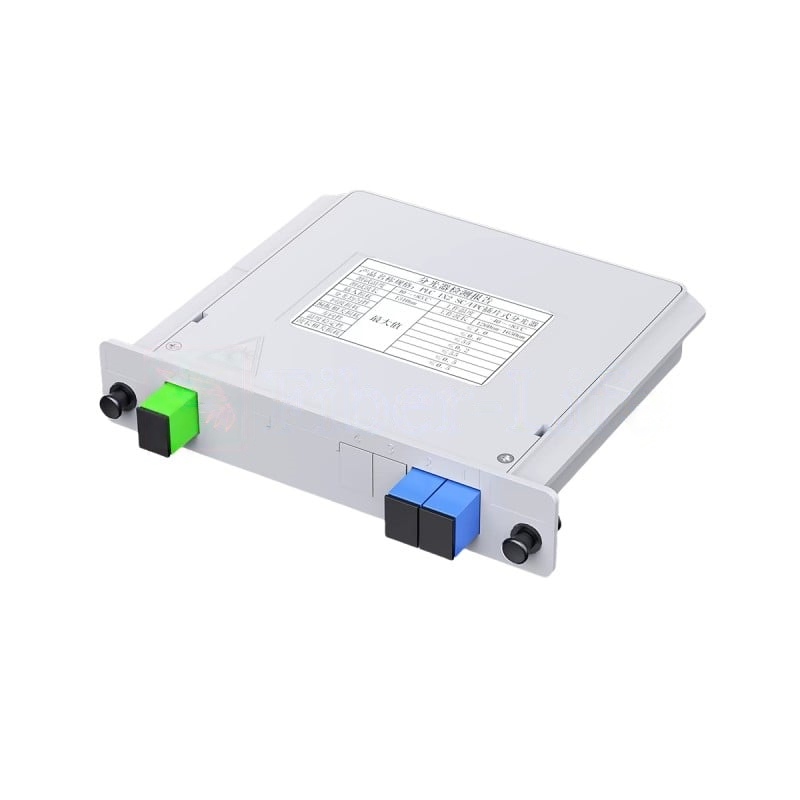

1×2 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×2 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and reliable optical power management device designed for FTTH and telecommunication networks. It utilizes planar lightwave circuit (PLC) technology to evenly split one input optical signal into two outputs with low insertion loss, high uniformity, and excellent reliability. The blade-type mini plug-in module design ensures easy installation into fiber distribution frames or wall-mounted boxes, making it ideal for space-constrained environments. This splitter supports singlemode fiber and complies with ITU-T G.657A/G.652D standards, ensuring stable performance across various network applications.
$11.60
1×2 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×2 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and reliable optical power management device designed for FTTH and telecommunication networks. It utilizes planar lightwave circuit (PLC) technology to evenly split one input optical signal into two outputs with low insertion loss, high uniformity, and excellent reliability. The blade-type mini plug-in module design ensures easy installation into fiber distribution frames or wall-mounted boxes, making it ideal for space-constrained environments. This splitter supports singlemode fiber and complies with ITU-T G.657A/G.652D standards, ensuring stable performance across various network applications.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
Related Products
1×8 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and reliable optical splitter designed for efficient signal distribution in FTTx, PON, and optical communication networks. Built with planar lightwave circuit (PLC) technology, it ensures low insertion loss, high channel uniformity, and excellent stability across a wide wavelength range. The miniature plug-in blade module is ideal for space-constrained installations and enables quick integration into fiber termination boxes or distribution panels. This splitter is a dependable solution for expanding network capacity in FTTH, CATV, and LAN applications.
1×32 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and efficient optical power distribution device designed for high-density fiber access networks. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it evenly splits a single optical input into 32 outputs with low insertion loss, excellent channel uniformity, and superior reliability. The mini plug-in blade module format enables quick installation into standard fiber distribution frames, making it ideal for FTTH, PON, and telecommunication systems. Built with G.657A1/G.652D compliant singlemode fiber, this splitter ensures stable performance across a wide range of operating conditions.
The 1×2 Singlemode ABS Box PLC Splitter is a compact and highly reliable optical power distribution device designed for FTTH and FTTx networks. Utilizing planar lightwave circuit (PLC) technology, it evenly splits a single optical signal into two outputs with minimal insertion loss and excellent uniformity. Housed in a durable ABS box, it offers easy installation and stable performance in both indoor and outdoor environments. Ideal for PON, GPON, and EPON systems, this splitter ensures long-term reliability and consistent signal transmission across your fiber optic network.
Explore SunmaFiber online store for 1xN, 2xN SingleMode Fiber PLC Splitter, 1U 19" Rack Mount in various configurations, Free shipping on orders over $200.

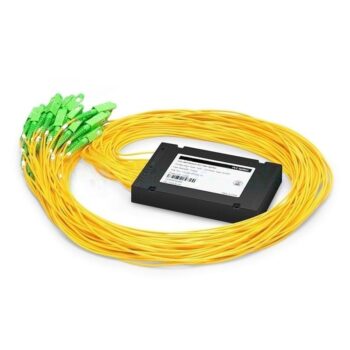

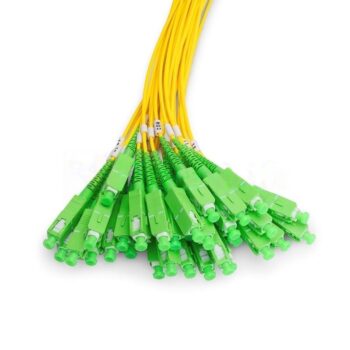

The 1×64 Singlemode ABS Box PLC Splitter is a high-density optical power splitter designed to divide a single input fiber into 64 uniform output channels with exceptional precision and reliability. Built using advanced PLC (Planar Lightwave Circuit) technology, it offers low insertion loss, excellent signal uniformity, and stable performance across all outputs. Housed in a compact and durable ABS enclosure, this splitter is ideal for large-scale FTTx deployments, PON networks, and central office applications, providing a cost-effective and efficient solution for high-capacity optical signal distribution.
