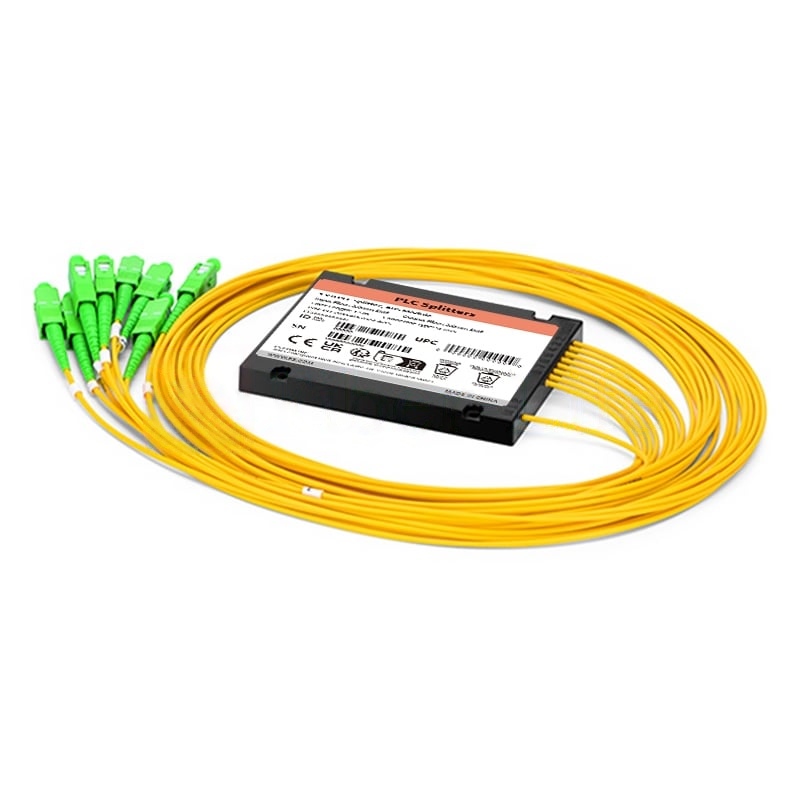

1×8 Singlemode ABS Box PLC Splitter
The 1×8 Singlemode ABS Box PLC Splitter is an essential passive optical component designed to split one input fiber into eight uniform output fibers with high precision and stability. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it offers low insertion loss, excellent channel uniformity, and superior reliability for long-term performance. Encased in a rugged ABS box, this splitter is ideal for FTTx deployments, PON networks, and CATV systems, ensuring easy installation and consistent signal distribution in various indoor network environments.
$20.10
1×8 Singlemode ABS Box PLC Splitter
The 1×8 Singlemode ABS Box PLC Splitter is an essential passive optical component designed to split one input fiber into eight uniform output fibers with high precision and stability. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it offers low insertion loss, excellent channel uniformity, and superior reliability for long-term performance. Encased in a rugged ABS box, this splitter is ideal for FTTx deployments, PON networks, and CATV systems, ensuring easy installation and consistent signal distribution in various indoor network environments.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
| Dimension (L×W×H) | 100mm × 80mm × 10mm | 120mm × 80mm × 18mm | 140mm × 115mm × 18mm | |||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
| High Reliability and Stability |
Dimension Drawing (Unit: mm)
