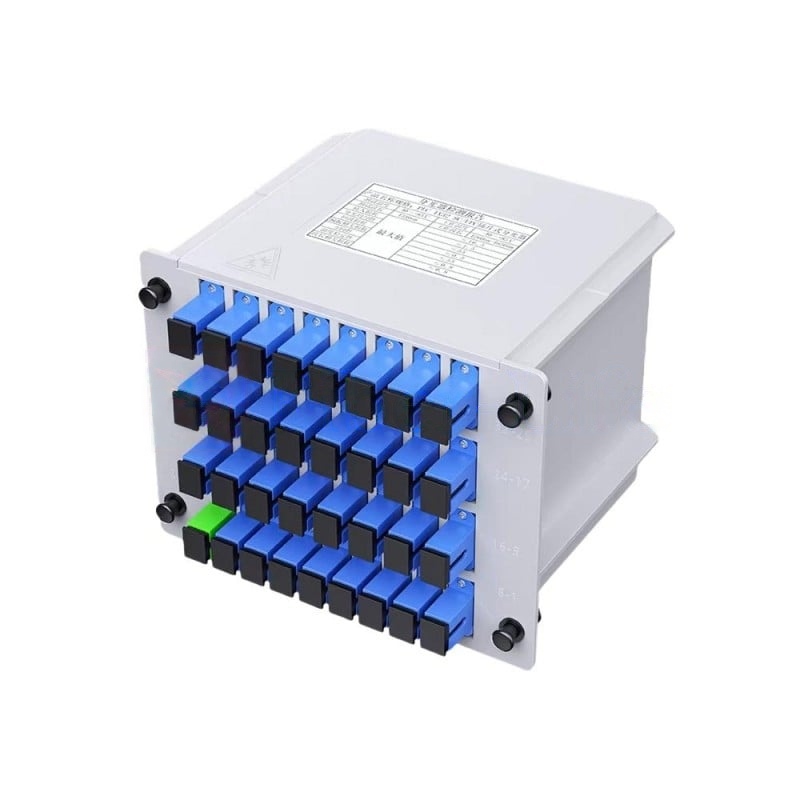

1×32 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×32 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and efficient optical power distribution device designed for high-density fiber access networks. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it evenly splits a single optical input into 32 outputs with low insertion loss, excellent channel uniformity, and superior reliability. The mini plug-in blade module format enables quick installation into standard fiber distribution frames, making it ideal for FTTH, PON, and telecommunication systems. Built with G.657A1/G.652D compliant singlemode fiber, this splitter ensures stable performance across a wide range of operating conditions.
$66.90
1×32 Singlemode Mini Plug-In, Blade Module PLC Splitter
1×32 Singlemode Mini Plug-In, Blade Module PLC Splitter is a compact and efficient optical power distribution device designed for high-density fiber access networks. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it evenly splits a single optical input into 32 outputs with low insertion loss, excellent channel uniformity, and superior reliability. The mini plug-in blade module format enables quick installation into standard fiber distribution frames, making it ideal for FTTH, PON, and telecommunication systems. Built with G.657A1 singlemode fiber, this splitter ensures stable performance across a wide range of operating conditions.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
