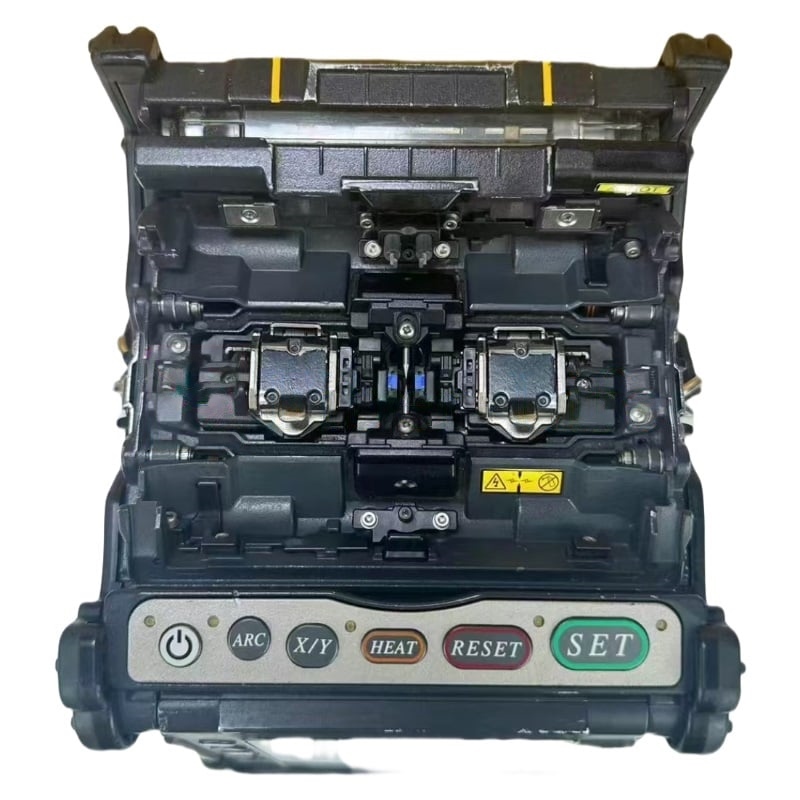

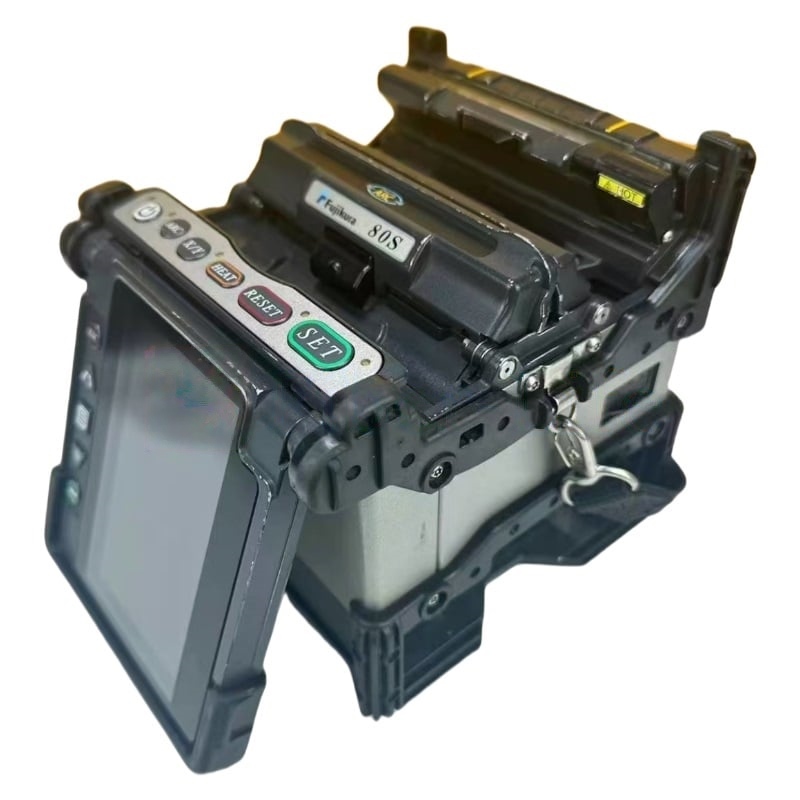

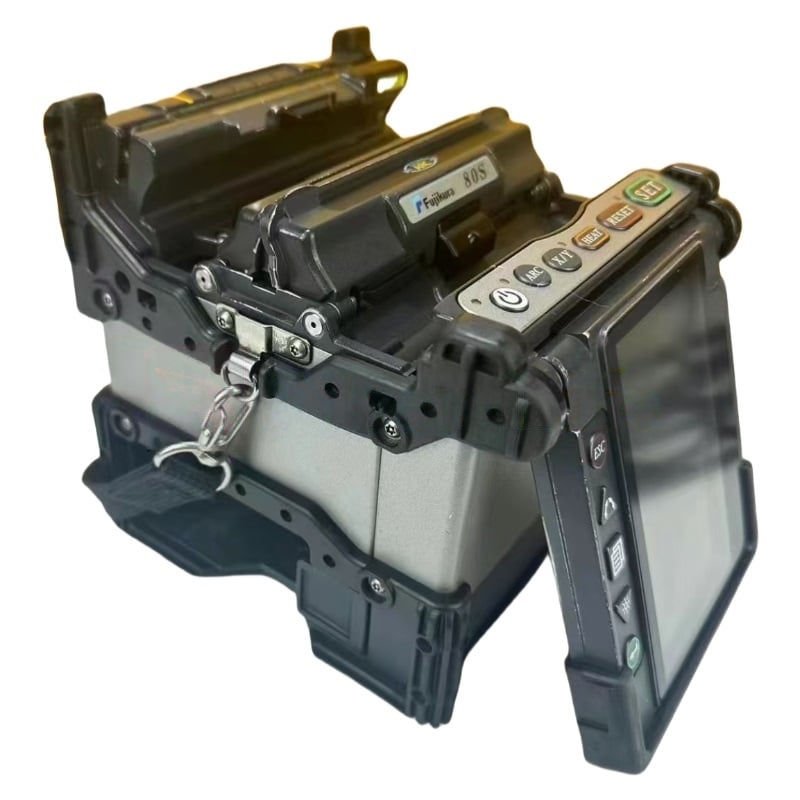

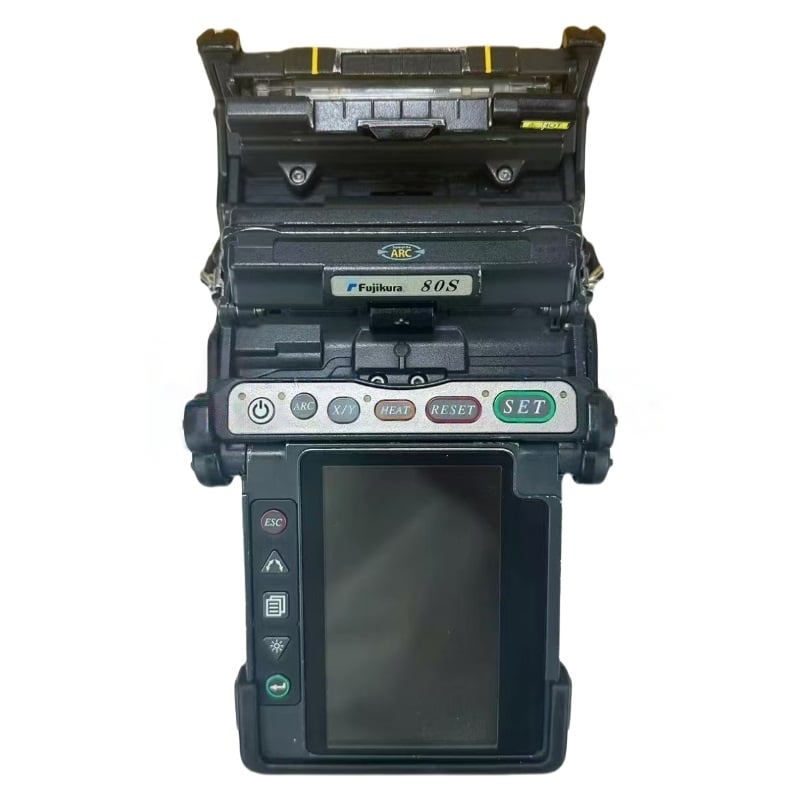

Fujikura FSM-80S Core Alignment Fiber Fusion Splicer, Equipped With CT-30A Fiber Cleaver
The Fujikura FSM-80S is a high-performance fiber fusion splicer designed for precise and efficient splicing in various fiber optic communication applications. Known for its durability and user-friendly design, it features core alignment technology for low-loss splices, a rugged construction suitable for outdoor use, and high-speed operation to enhance work efficiency. The splicer also includes automatic functions like arc calibration and wind protection, making it ideal for field technicians working on the installation, repair, and maintenance of optical fiber networks, particularly in telecommunications and data centers.
$8,485.00
Fujikura FSM-80S Core Alignment Fiber Fusion Splicer
The Fujikura FSM-80S is a high-performance fiber fusion splicer designed for precise and efficient splicing in various fiber optic communication applications. Known for its durability and user-friendly design, it features core alignment technology for low-loss splices, a rugged construction suitable for outdoor use, and high-speed operation to enhance work efficiency. The splicer also includes automatic functions like arc calibration and wind protection, making it ideal for field technicians working on the installation, repair, and maintenance of optical fiber networks, particularly in telecommunications and data centers.
Feature
- High-precision splicing: The FSM-80S uses advanced fiber alignment technology to achieve high-precision fiber splicing in a very short time, reducing fiber loss and ensuring the quality and stability of the splicing.
- Fast splicing and heating time: The splicing time of this splicer is very short, usually between 6 and 9 seconds, and the heating time is only 14 to 15 seconds, which greatly improves work efficiency.
- Rugged and durable design: The FSM-80S is designed to be very rugged and can perform well in harsh working environments. Its waterproof, dustproof and shockproof design makes it very suitable for outdoor operations.
- Automated functions: The device is equipped with many automated functions, such as automatic fiber cutting and automatic splicing parameter adjustment, which simplifies the operation steps, so that even beginners can quickly get started.
- Lightweight and portable: The FSM-80S is small in size, light in weight, easy to carry, and very suitable for field operations.
- Long battery life: Equipped with a high-capacity lithium battery, it can support up to 200 splicing and heating operations, suitable for long-term work needs.
- Compatible with multiple fiber types: It supports the splicing of single-mode, multi-mode and ribbon fibers, and is highly adaptable to meet the needs of various fiber construction.
- User-friendly interface: FSM-80S has an intuitive user interface and a clear display, which is simple and clear to operate, and provides multiple language options, suitable for global users.

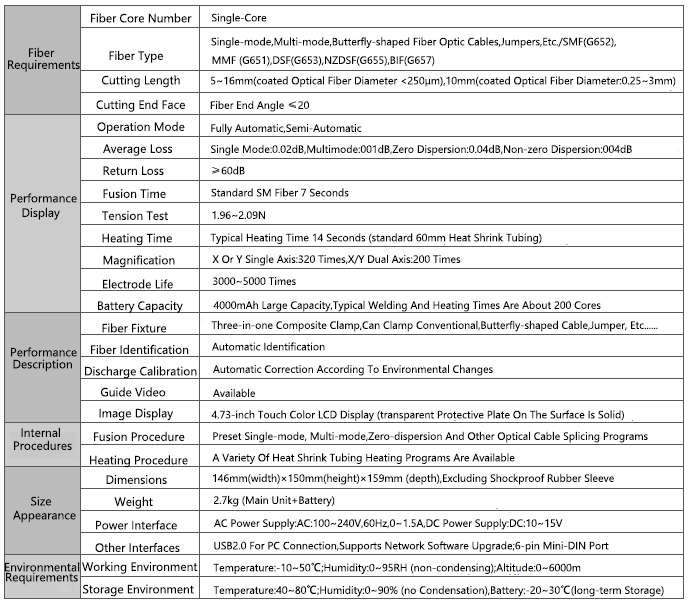

Specification

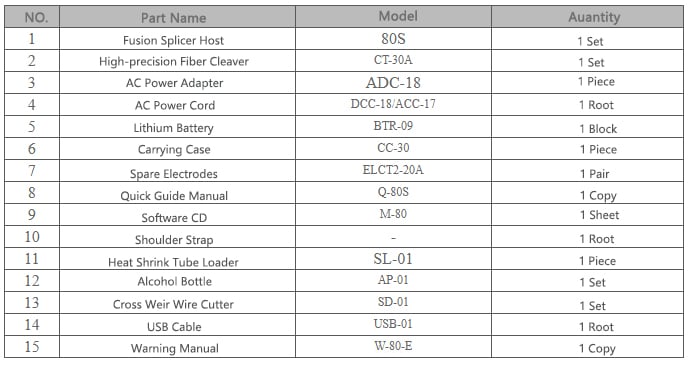

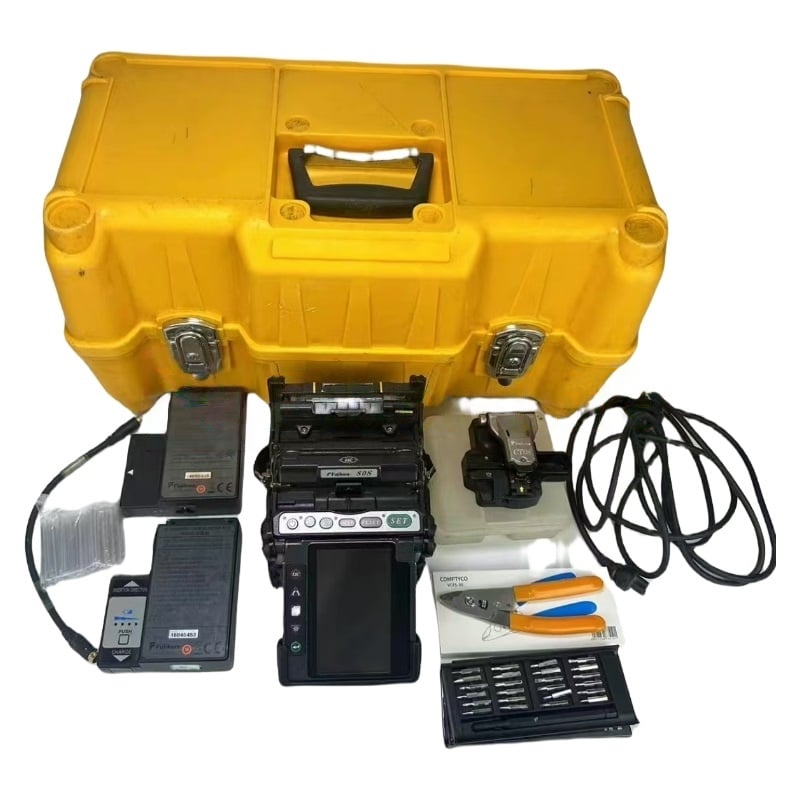

Product List
