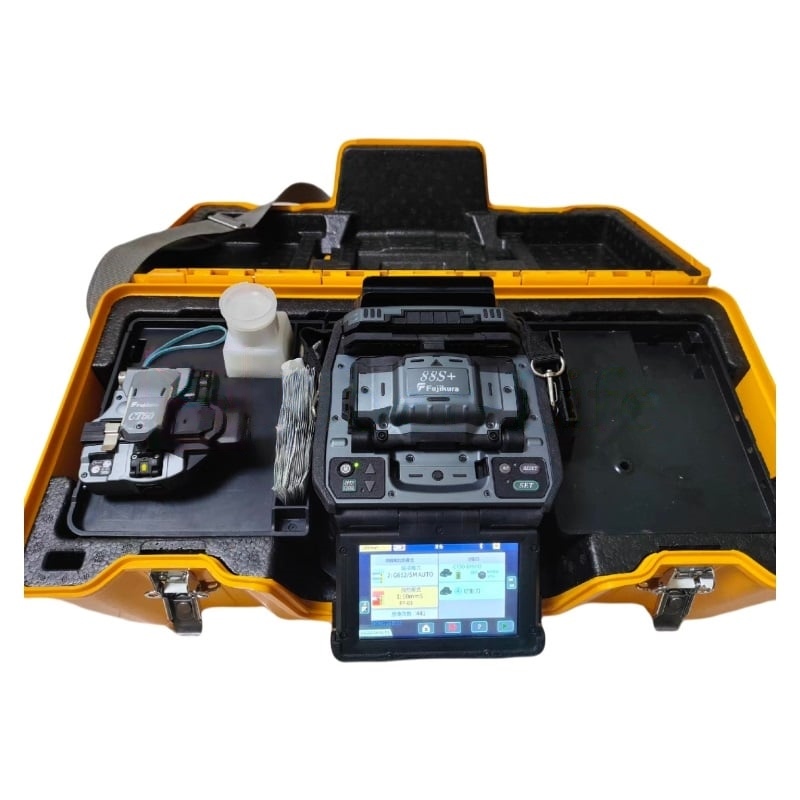

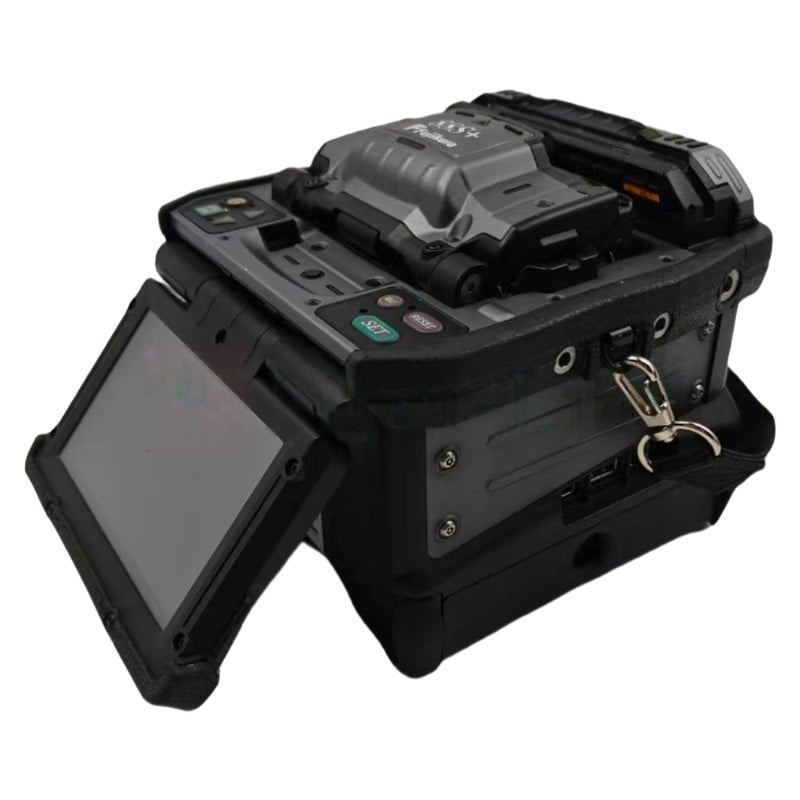

FUJIKURA FSM-88S+ Fiber Core Alignment Fusion Splicer, Equipped With CT-50 Fiber Cleaver
The latest 88S+ single-core fiber fusion splicer is based on the 88S and is equipped with two innovative technologies: intelligent blade management technology and intelligent splicing control technology. Their combination can provide stable low-loss splicing. Even if an accidental fiber cut occurs during splicing, the 88S+ can optimize the discharge parameters in real time to minimize the splicing loss, thereby minimizing the chance of re-splicing and rework.
$8,805.00

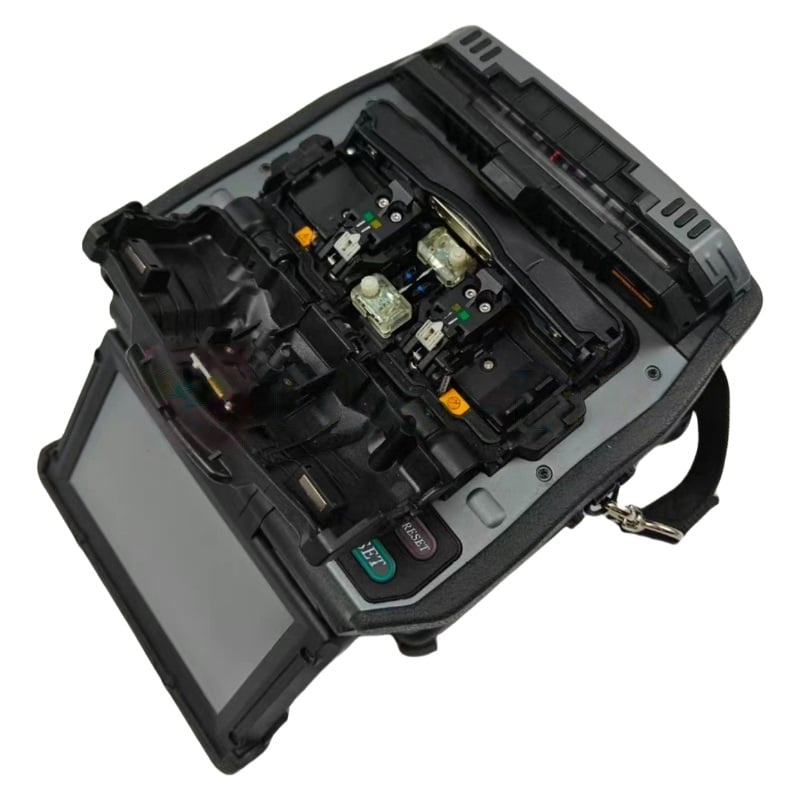

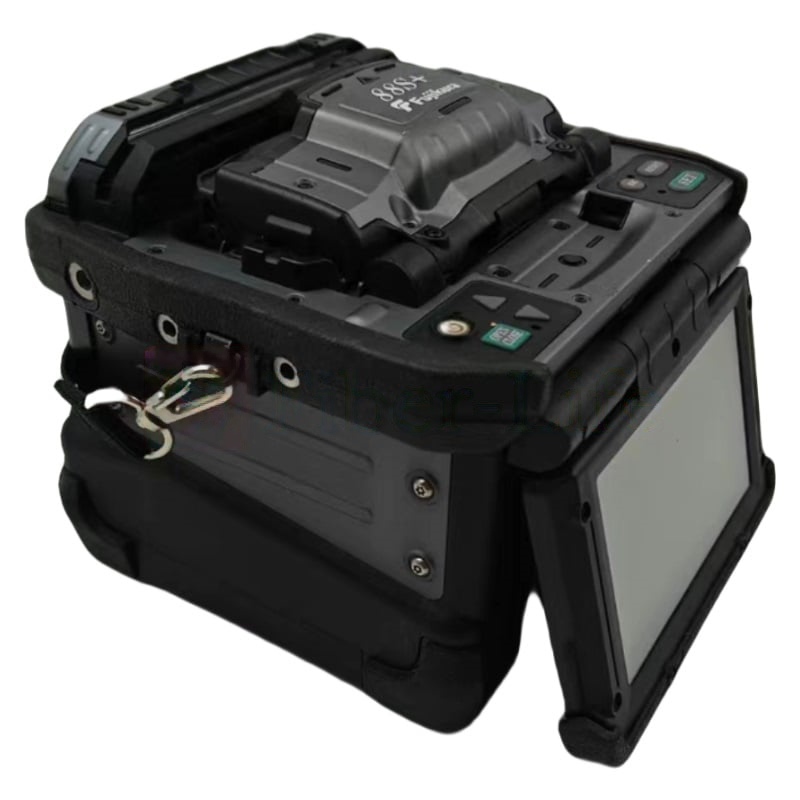

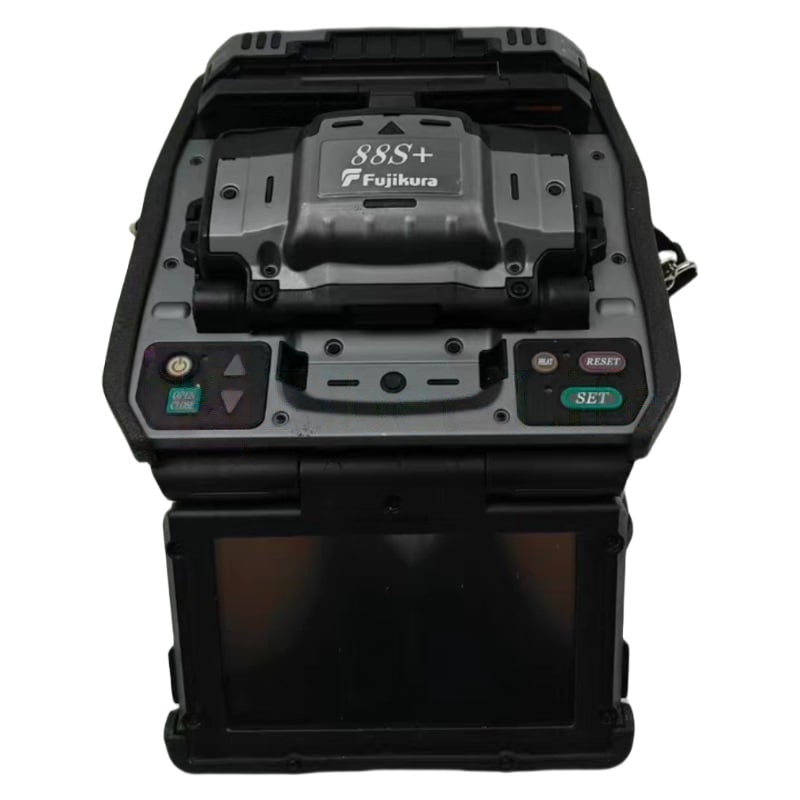

FUJIKURA FSM-88S+ Fiber Core Alignment Fusion Splicer
The latest 88S+ single-core fiber fusion splicer is based on the 88S and is equipped with two innovative technologies: intelligent blade management technology and intelligent splicing control technology. Their combination can provide stable low-loss splicing. Even if an accidental fiber cut occurs during splicing, the 88S+ can optimize the discharge parameters in real time to minimize the splicing loss, thereby minimizing the chance of re-splicing and rework.
Feature
- Intelligent welding control technology
- Intelligent blade management system
- Large-capacity battery
- 7 seconds to complete welding, 9 seconds to complete heating
- Large screen display
- Powerful automation function
- Fiber fixing clamp function
- Tool-free replacement of electrode rods

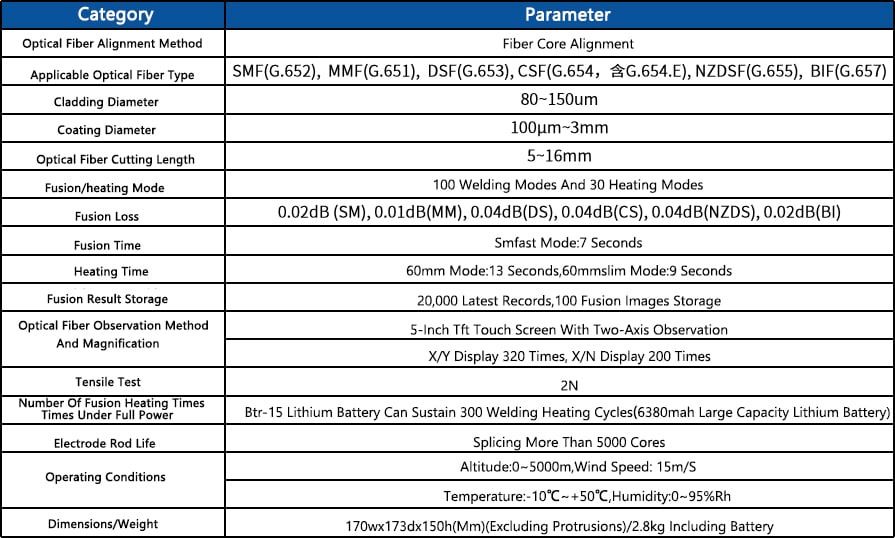

Specification
Product Detail

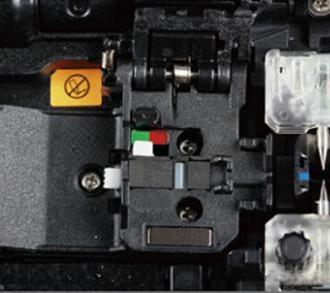

Compatible with loose tube optical fiber
- Flip the white plastic to enable the loose tube fiber compatible function
- When splicing loose tube fiber, there is no need to replace the fiber clamp like most splicers
- With eye-catching function on status prompt
Manually replaceable electrode rod
- Easy for operators to replace the electrode rod when it is worn out or outdoors
- Easy to maintain the objective lens without using tools
- Remember to use the discharge correction after reinstalling the electrode rod

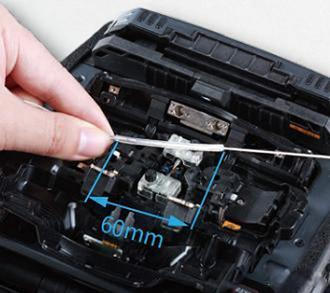

Extremely convenient sleeve alignment
- The distance between the two clamp edges is 60mm, and it is very convenient to align the heat shrink sleeve with the welding point
- The overall welding heating speed is significantly improved
- The operation is simpler and convenient for novices to use

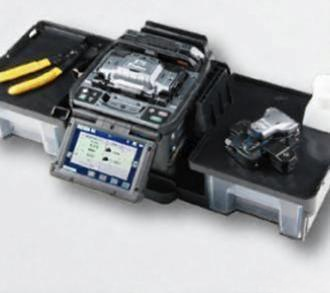

Newly designed workbench
- Can be freely spliced and disassembled to adapt to different environments
- Built-in large space to store various tools
- Equipped with a cooling tank to place the heated heat shrink tubing
