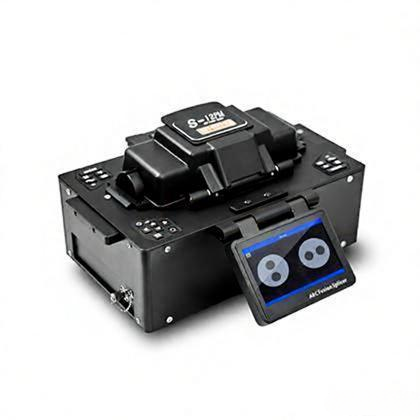

S-12 Fully Automatic Double Cat’s Eye Alignment PM Fiber Fusion Splicer
The S-12 PM fiber fusion splicer offers automatic double cat’s eye alignment for 80-250μm fibers, supporting precise multi-angle splicing, data export, and easy operation.
$53,820.00
S-12 Fully Automatic Double Cat’s Eye Alignment PM Fiber Fusion Splicer
The S-12 pm fiber fusion splicer is a fully automatic device that uses double cat’s eye alignment technology. It is designed for the fusion of 80-125μm polarization-maintaining fibers (including elliptical and bowtie types). It supports fusion splicing at 0° to 45°, 90° and custom rotation angles to ensure high-precision operation. The fusion splicer achieves direct alignment of the fiber end faces through dual-end face imaging, and is suitable for different types of fiber fusion with the profile/end face dual-mode axis alignment technology. Its integrated propulsion and new focusing design further ensure the accuracy of the core alignment. During the fusion process, the arc size is calibrated in real time, the arc position is adjustable, and it supports fiber alignment at different angles to ensure the versatility of fusion. In addition, the device is equipped with a windshield opening and closing signal output function, and supports software upgrades, which facilitates the export of fusion data and images and improves data management capabilities. The humanized engineering design makes it easy to operate and maintain, making it an ideal choice in the field of optical fiber communications.

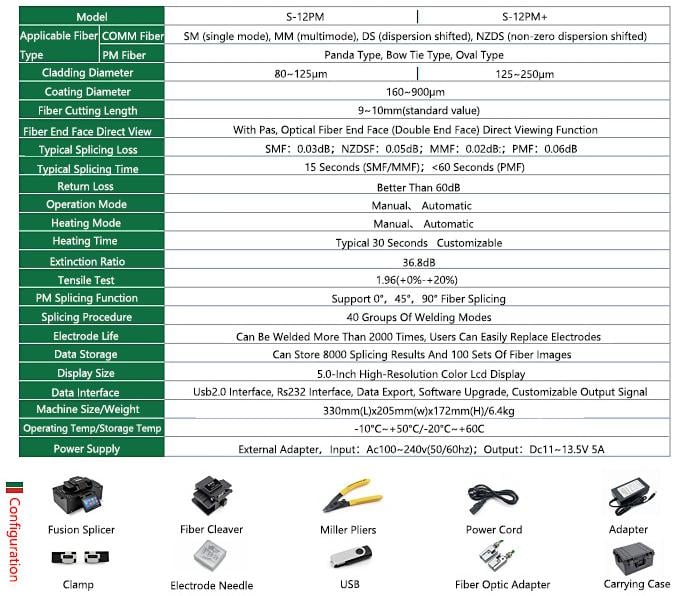

Specifications
Features

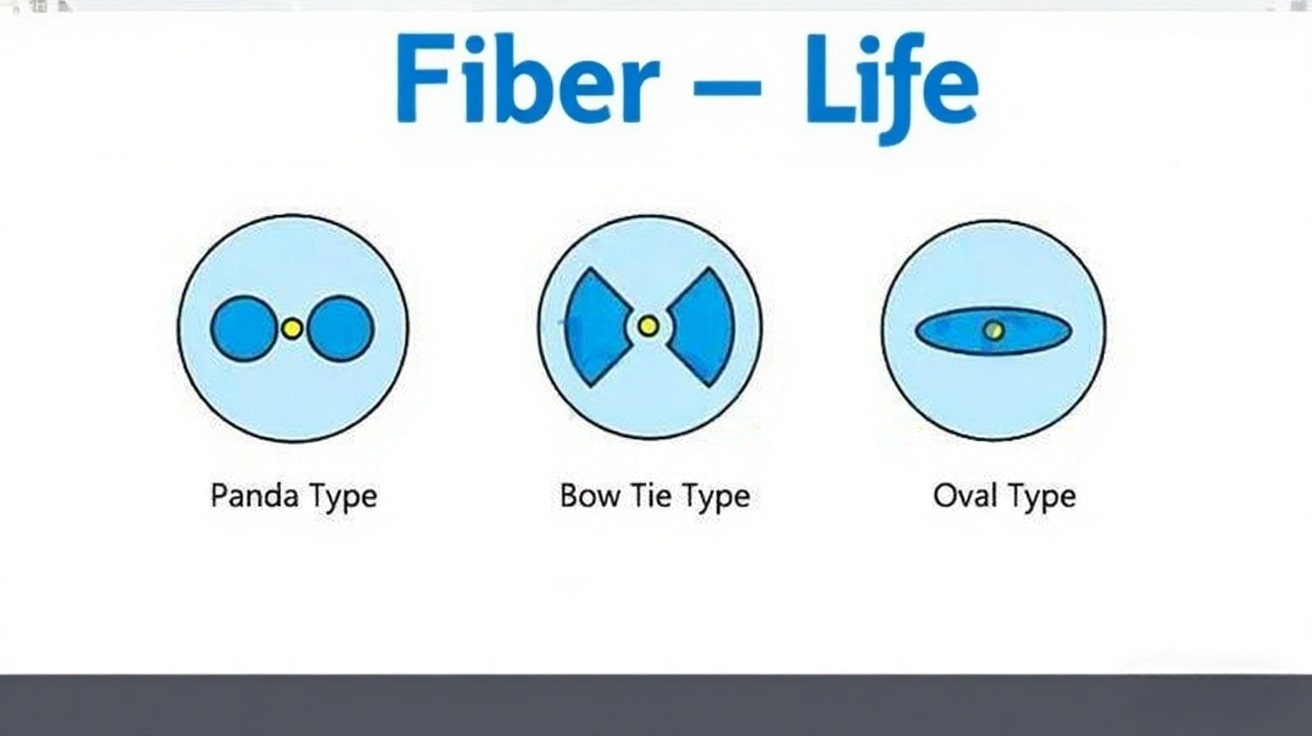

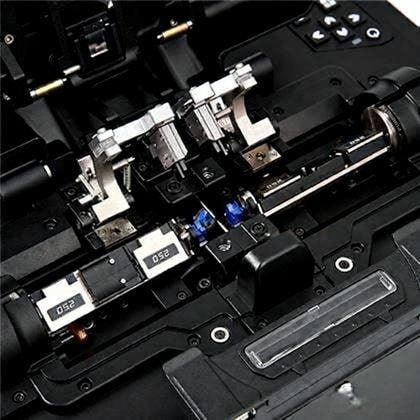

Supports Mutual Fusion Of Different Polarization-Maintaining Fibers

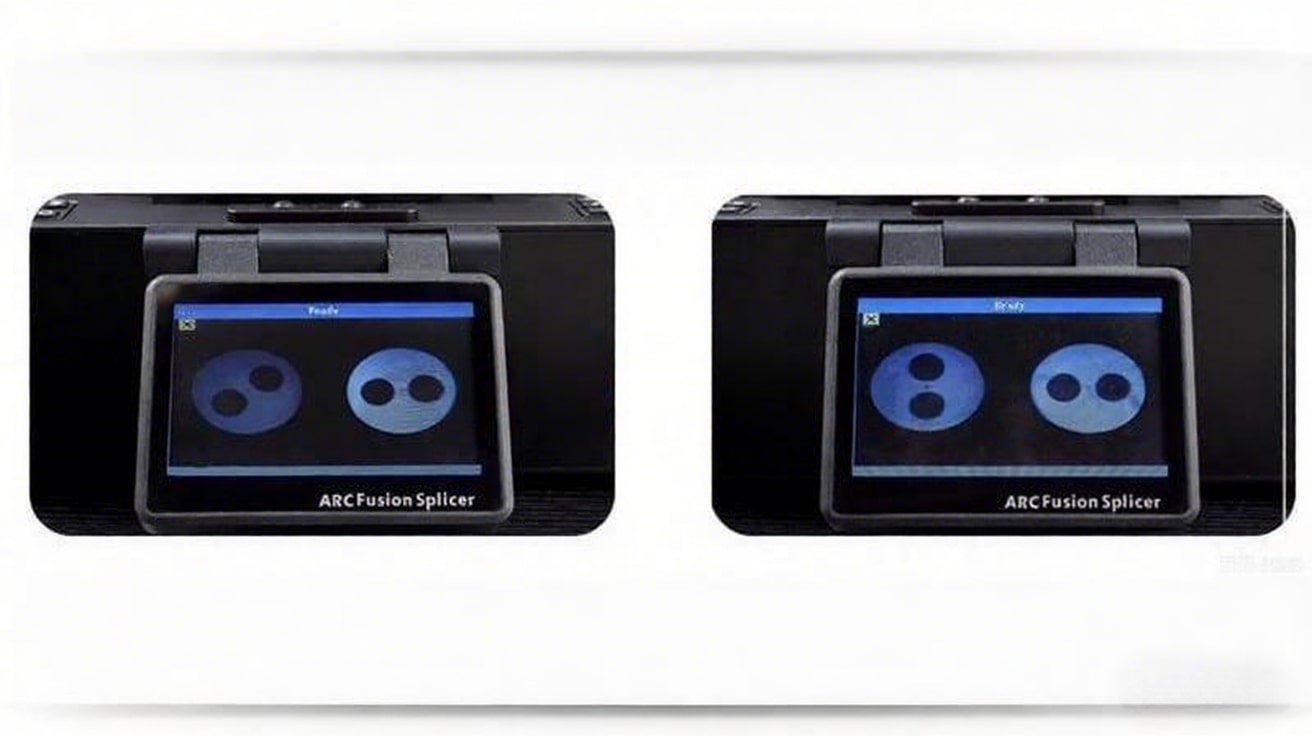

Supports Different Angles Of Fiber Alignment
Related Products

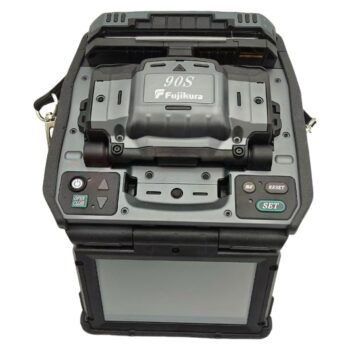

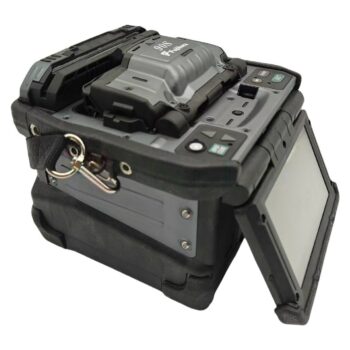

The Fujikura FSM-90S+ is an advanced fiber fusion splicer designed for the fiber optic communication field, suitable for efficient splicing of single-mode, multimode, and specialty fibers. It features core alignment technology to ensure low-loss and high-quality connections, along with automated functions like discharge calibration, wind protection, and auto-focus, which enhance operational efficiency. Its built-in wind protection allows stable splicing even in windy environments, and its compact design makes it portable and ideal for fieldwork. The FSM-90S+ is widely used in the deployment and maintenance of high-speed networks such as 5G and data center interconnections.

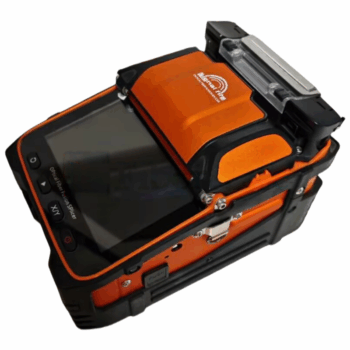

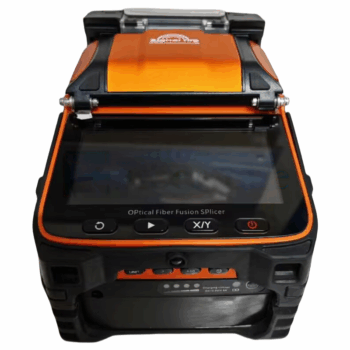

The Signal Fire AI-9 fusion splicer offers fast 5-second splicing, core alignment, high efficiency, and durability in harsh conditions with a powerful 260-core lithium battery.

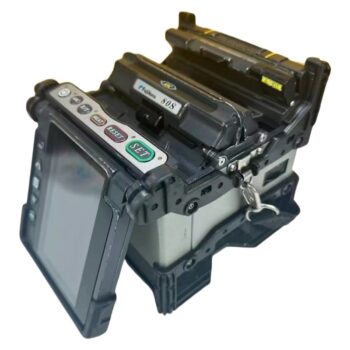

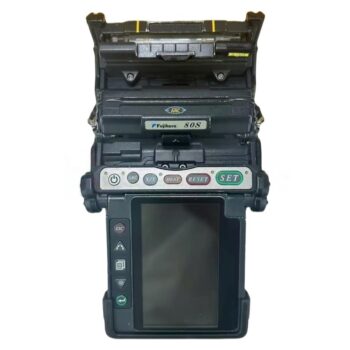

The Fujikura FSM-80S is a high-performance fiber fusion splicer designed for precise and efficient splicing in various fiber optic communication applications. Known for its durability and user-friendly design, it features core alignment technology for low-loss splices, a rugged construction suitable for outdoor use, and high-speed operation to enhance work efficiency. The splicer also includes automatic functions like arc calibration and wind protection, making it ideal for field technicians working on the installation, repair, and maintenance of optical fiber networks, particularly in telecommunications and data centers.

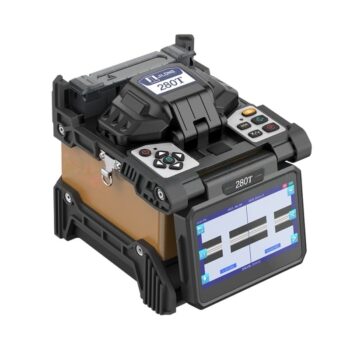

The JILONG 280T Core Alignment Fiber Fusion Splicer is a high-performance machine engineered for precision, durability, and ease of use. It features a powerful core alignment system and supports up to 300 splicing and heat cycles per charge. With a 4.3-inch capacitive touch screen, the device offers intuitive operation, while its fully automatic splicing and heating functions enhance efficiency. Designed for field use, it comes with tool-free replaceable electrodes lasting up to 5000 uses, and a robust 6800mAh lithium battery ensures long operation time. Its rugged, dustproof, moisture-resistant, and weatherproof construction makes it suitable for challenging environments. Additional highlights include accurate fiber alignment with visible core display and a 3-year warranty for long-term reliability.

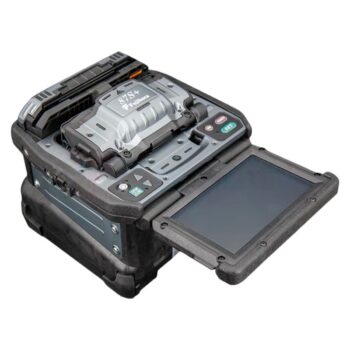

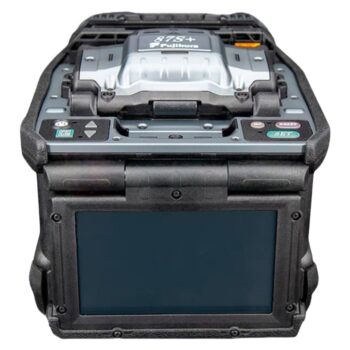

Fujikura 87S+ fusion splicer is a high-precision and low-loss fusion splicer equipped with "intelligent fusion control technology" to achieve lower fusion loss. In addition, the 87S+ fusion splicer is equipped with Fujikura's first "intelligent blade management technology", which can be connected to 2 CT50 cutters via Bluetooth at the same time. As Fujikura's new fusion splicer, the 87S+ itself has extremely excellent performance. With the newly designed carrying case and workbench, it has become a new upgraded single-core fiber fusion splicer that far exceeds the previous version.
