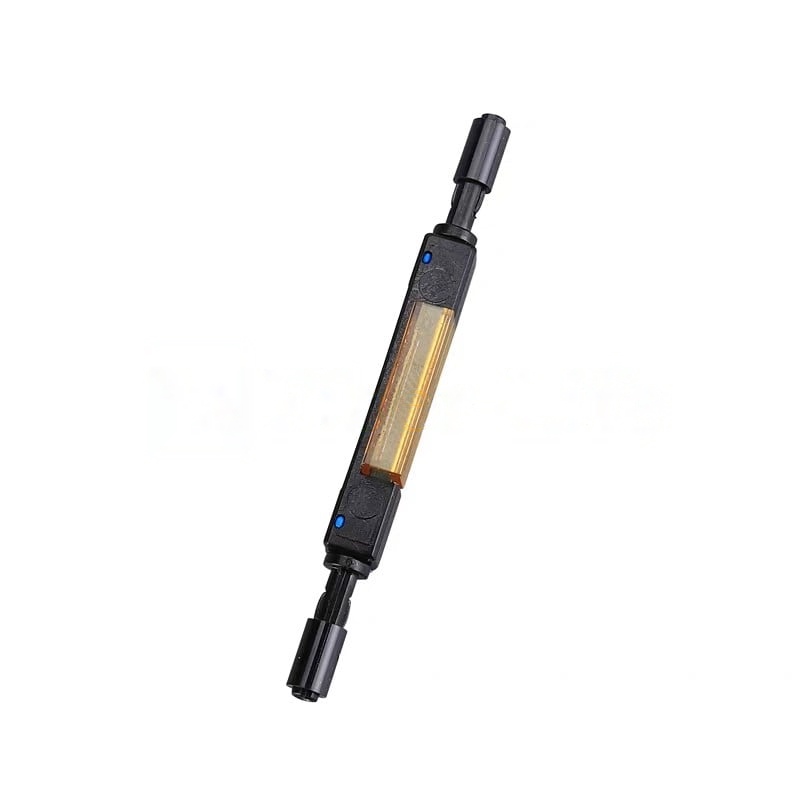

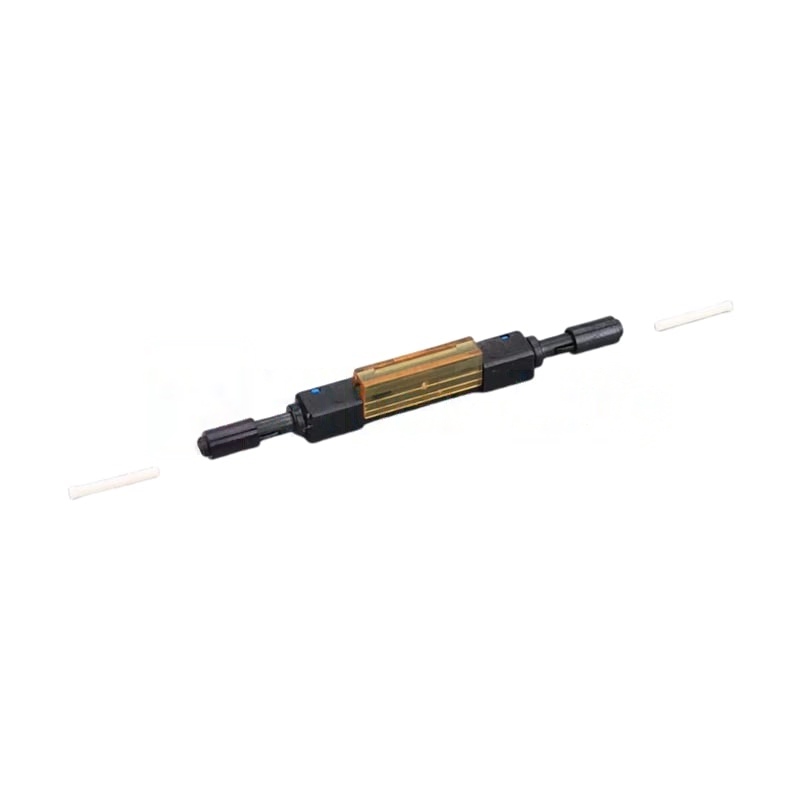

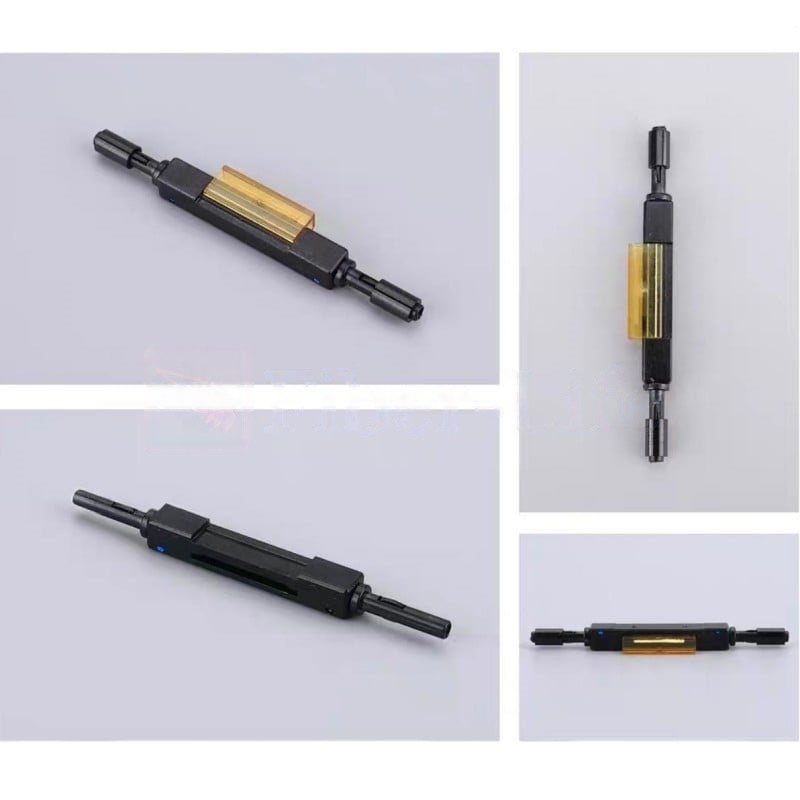

MC-L925B Optical Fiber Mechanical Splicer, 5pcs/Pack
MC-L925B Optical Fiber Mechanical Splicer, 5pcs/Pack is designed for quick and reliable fiber optic splicing without the need for fusion splicing equipment. This mechanical splicer ensures low insertion loss and high return loss, making it ideal for emergency repairs, FTTH applications, and field installations. Compatible with singlemode and multimode fibers (250μm/900μm), the MC-L925B features a transparent body for visual alignment and a reliable V-groove structure to secure the fibers. Each pack includes 5 ready-to-use splicers, simplifying deployment and reducing downtime.
$14.10
MC-L925B Optical Fiber Mechanical Splicer, 5pcs/Pack
MC-L925B Optical Fiber Mechanical Splicer, 5pcs/Pack is designed for quick and reliable fiber optic splicing without the need for fusion splicing equipment. This mechanical splicer ensures low insertion loss and high return loss, making it ideal for emergency repairs, FTTH applications, and field installations. Compatible with singlemode and multimode fibers (250μm/900μm), the MC-L925B features a transparent body for visual alignment and a reliable V-groove structure to secure the fibers. Each pack includes 5 ready-to-use splicers, simplifying deployment and reducing downtime.
Specifications
| Model | L925B | Applicable Fiber Diameter | Φ0.25mm & Φ0.9mm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥40dB |
| Repeatability (10 times) | △ IL ≤ 0.2dB, △ RL ≤ 5dB | Operating Temperature | -40 ~ 80°C |
| Dimension | L45 x W4 x H4mm | Package | 5pcs/Pack |

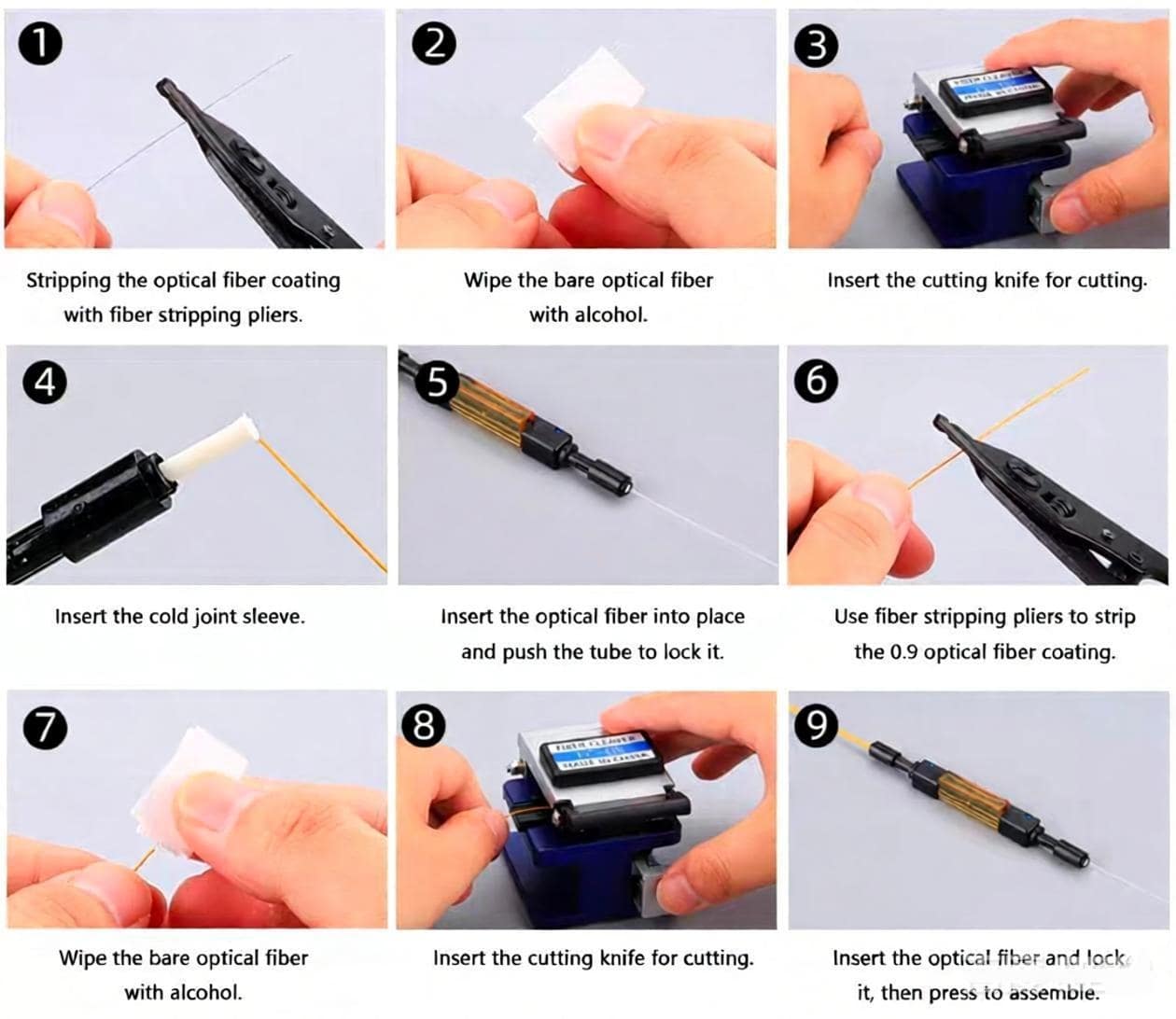

Operating Steps

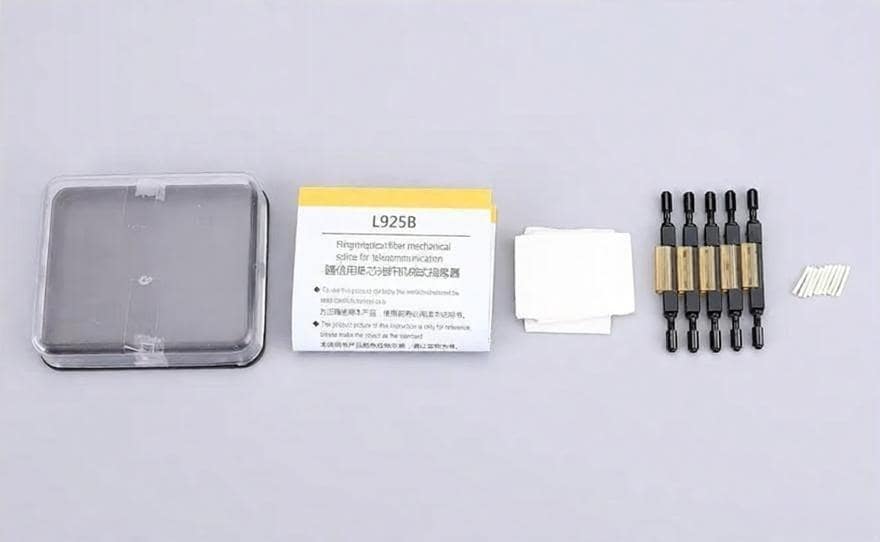

Packaging Details
Related Products
The Fujikura FSM-80S is a high-performance fiber fusion splicer designed for precise and efficient splicing in various fiber optic communication applications. Known for its durability and user-friendly design, it features core alignment technology for low-loss splices, a rugged construction suitable for outdoor use, and high-speed operation to enhance work efficiency. The splicer also includes automatic functions like arc calibration and wind protection, making it ideal for field technicians working on the installation, repair, and maintenance of optical fiber networks, particularly in telecommunications and data centers.
The Signal Fire AI-9 fusion splicer offers fast 5-second splicing, core alignment, high efficiency, and durability in harsh conditions with a powerful 260-core lithium battery.
The latest 88S+ single-core fiber fusion splicer is based on the 88S and is equipped with two innovative technologies: intelligent blade management technology and intelligent splicing control technology. Their combination can provide stable low-loss splicing. Even if an accidental fiber cut occurs during splicing, the 88S+ can optimize the discharge parameters in real time to minimize the splicing loss, thereby minimizing the chance of re-splicing and rework.

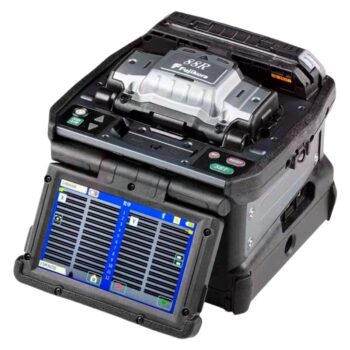

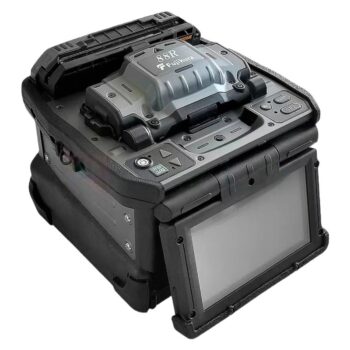

The Fujikura 88R ribbon fiber fusion splicer is equipped with a large heating area that can handle up to 12 cores of optical fiber. It can melt the optical fiber evenly between the electrode rods and control the discharge intensity in real time by analyzing the brightness of the arc. Although the ribbon fiber splicer does not have the ability to align the core, Fujikura has effectively reduced the impact of fiber deviation by analyzing and utilizing the tension on the surface of the optical fiber during the discharge process.
