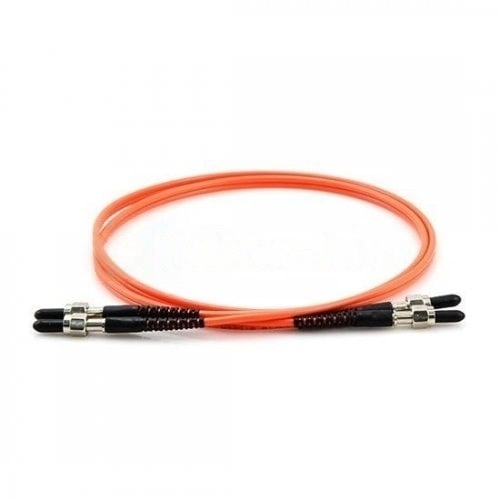

SMA905 To SMA905 Duplex OM2 Multimode Fiber Patch Cable
SMA905 to SMA905 Duplex OM2 Multimode Fiber Patch Cable is designed for high-performance multimode data transmission in short-reach applications. Featuring two SMA905 connectors on each end and OM2 50/125μm fiber, it ensures low insertion loss and stable signal transmission. Ideal for medical, industrial, and test environments requiring robust mechanical stability. Custom lengths, outer diameters, and jacket materials are available upon request. For special requirements, please contact sales@SunmaFiber.com.
$31.40
SMA905 To SMA905 Duplex OM2 Multimode Fiber Patch Cable
SMA905 to SMA905 Duplex OM2 Multimode Fiber Patch Cable is designed for high-performance multimode data transmission in short-reach applications. Featuring two SMA905 connectors on each end and OM2 50/125μm fiber, it ensures low insertion loss and stable signal transmission. Ideal for medical, industrial, and test environments requiring robust mechanical stability. Custom lengths, outer diameters, and jacket materials are available upon request. For special requirements, please contact sales@sunmafiber.net.
Specifications
| Parameter | Value | |||||||
| The numerical Aperture of The Quartz Fiber | 0.22-0.37 | |||||||
| Fiber Diameter | 0.2mm | 0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.65mm | 0.8mm | |
| Minimum Bending Radius | 10D | |||||||
| Fiber Core (Coating Layer) | 1:1.05 or 1:1.4 | |||||||
| Numerical Aperture | 0.21-0.37 | |||||||
| Transmission (%/m0) | Transmission (0.20–0.4μm) | 85–98 | ||||||
| Visible Light (0.4–0.7μm) | 97–99 | |||||||
| Near-Infrared (0.76–1.6μm) | 90–99 | |||||||
| Helium-Neon (0.6328μm) | 99 | |||||||
| YAG (1.06μm) | 98 | |||||||
| Argon (0.5145μm) | 98 | |||||||
| Transmission Power | >130w (Fibre [email protected]) | |||||||
| Connector Type | Metal Ferrule or Zirconia Ferrule | |||||||
| Inner Hole Size | 0.127mm ~ 1.200mm | |||||||
| Concentricity | ≤3.0μm | |||||||
| Roundness | ≤2.0μm | |||||||
| Core Material | Stainless Steel (Metal Ferrule) or Cupronickel (Zirconia Ferrule) | |||||||
Note: The default ferrule of the connector is metal ferrule (without groove), and the default inner hole size is 127 μm with a tolerance of +3/–0μm.
Features
Comparison Between Metal Ferrule and Zirconia Ferrule for SMA905 Connectors
Comparison Between Metal Ferrule with groove and Metal Ferrule without groove
HPSMA905 Connector with Extended Tailstock
