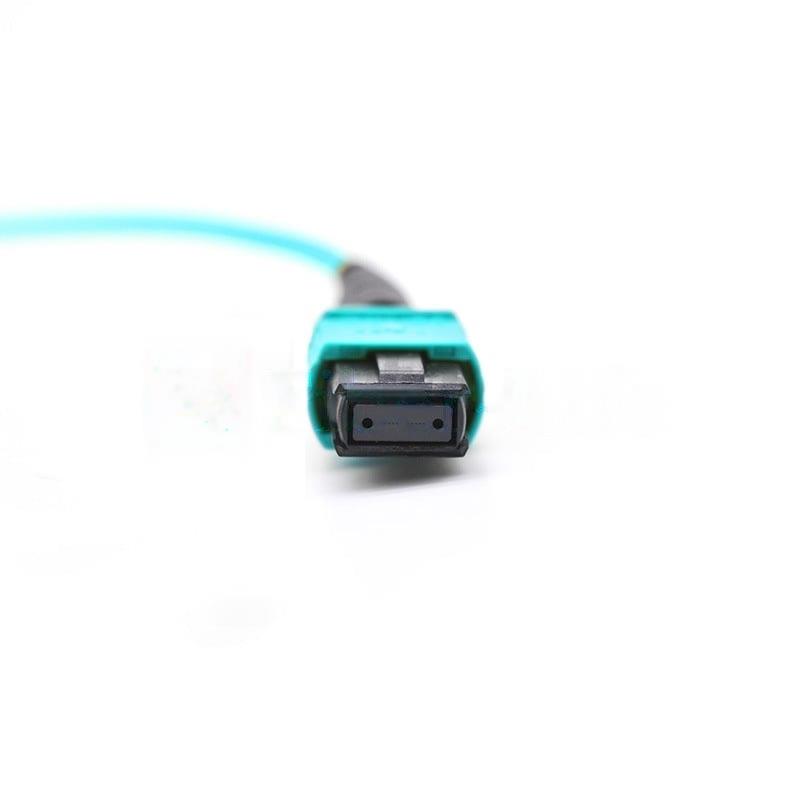

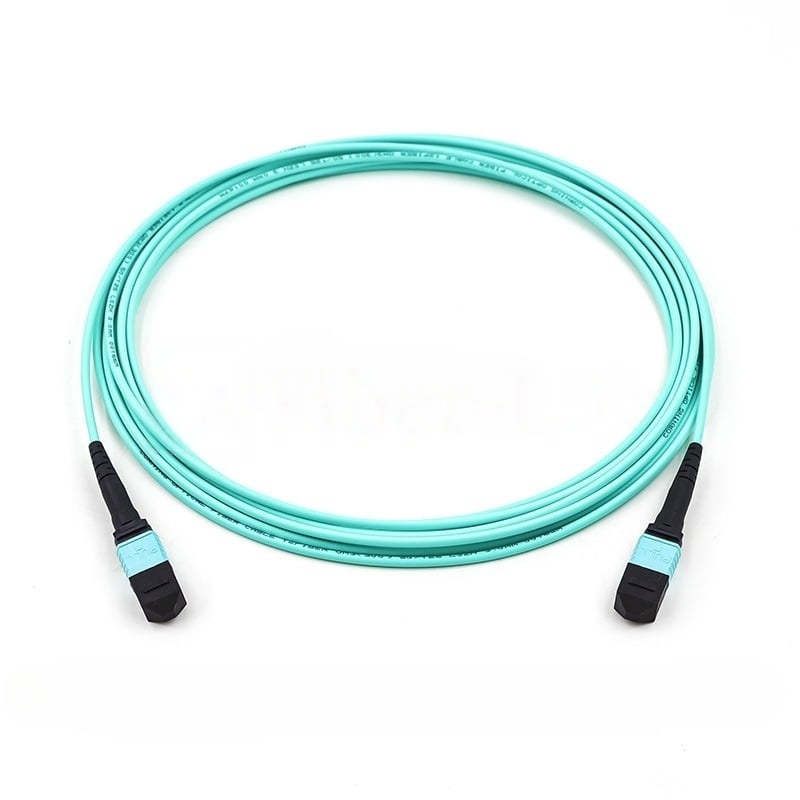

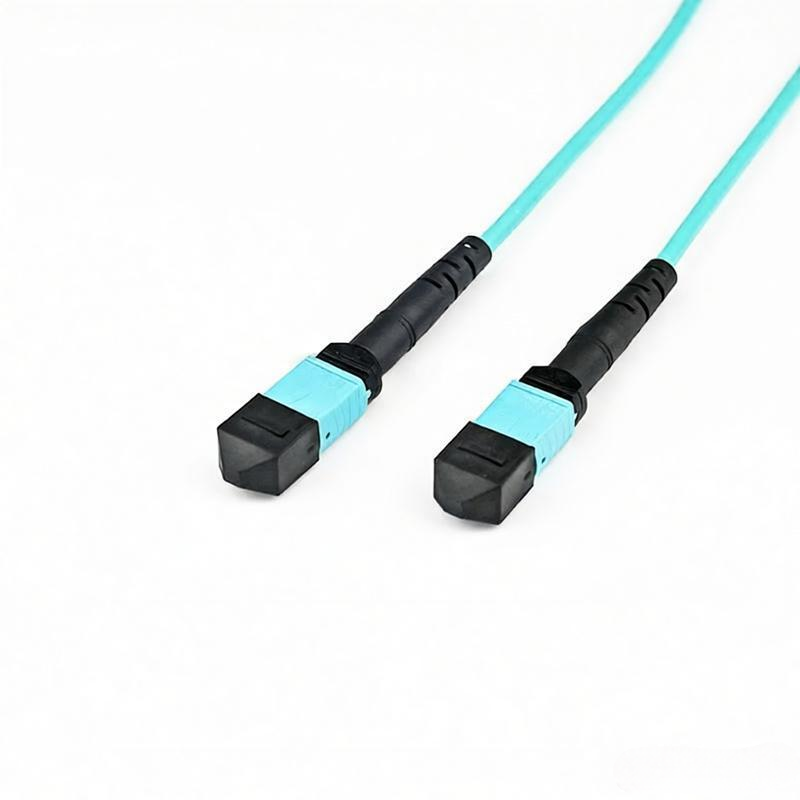

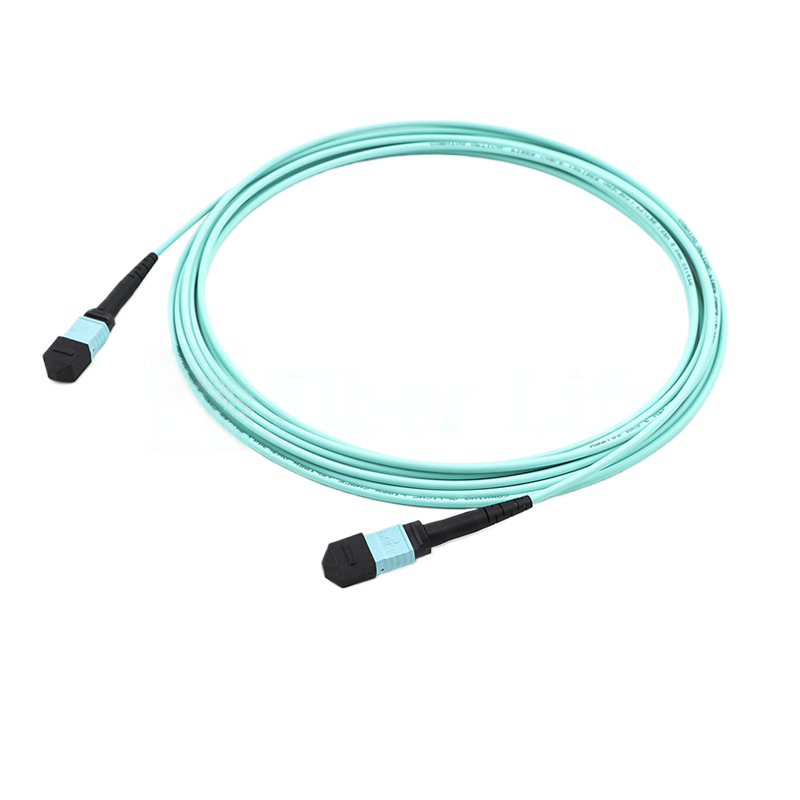

OM3 Multimode MPO-12 Trunk Cable, Aqua
OM3 Multimode MPO-12 Trunk Cable for high-speed data transmission, supporting 100G Ethernet, ideal for data centers and networks with high-density, low-latency connections.
$35.80
OM3 Multimode MPO-12 To MPO-12 Trunk Cable, Aqua
OM3 Multimode MPO-12 Trunk Cable is a high-performance multimode fiber cable equipped with a 12-core MPO connector, designed for high-speed data transmission and high-density connectivity. It supports 100G Ethernet and other high-speed network protocols, making it ideal for data centers, enterprise networks, and local area networks (LANs). With low attenuation and high bandwidth, OM3 fiber provides fast signal transmission over short to medium distances (typically up to 300 meters).
The MPO connector enables high-density connections, facilitating quick network deployment and expansion. This cable’s high-capacity transmission and compact design make it well-suited for modern network infrastructures.
Specifications
| Connector A | MPO | Connector B | MPO |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Diameter | 3.0mm | Polish Type | UPC to UPC |
| Insertion Loss (dB) | ≤0.35dB | Return Loss (dB) | ≥20dB |
| Operating Temperature | -10 To 70°C (14 To 158℉) | Storage Temperature | -40 To 80°C (-40 To 176℉) |
Features
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Three Jacket MaterialsThe differences between OFNP, PVC, LSZH jackets.
|
Related Products
OM4 Multimode MPO-12 Trunk Cable for high-speed data transmission, supporting 100G/400G Ethernet, ideal for data centers and networks requiring high-density, long-distance connectivity.
The OM4 Multimode LC/SC/FC/ST to MPO-12 Breakout Cable offers high-speed, scalable connectivity for data centers and telecom networks, supporting up to 100Gbps with efficient fiber management.

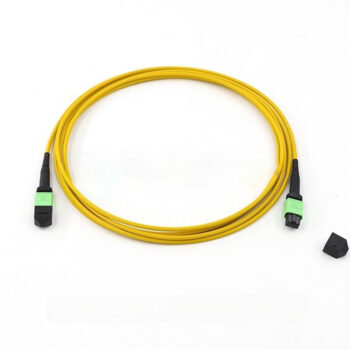

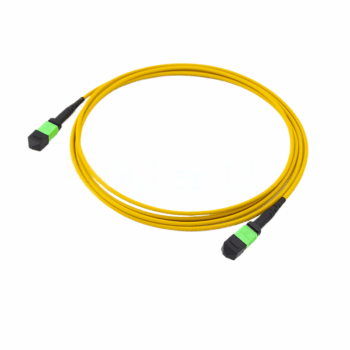

High-performance OS2 SingleMode MPO-24 trunk cable for long-distance, high-bandwidth applications in data centers, supporting 100G/400G Ethernet with easy installation and scalable connectivity.
