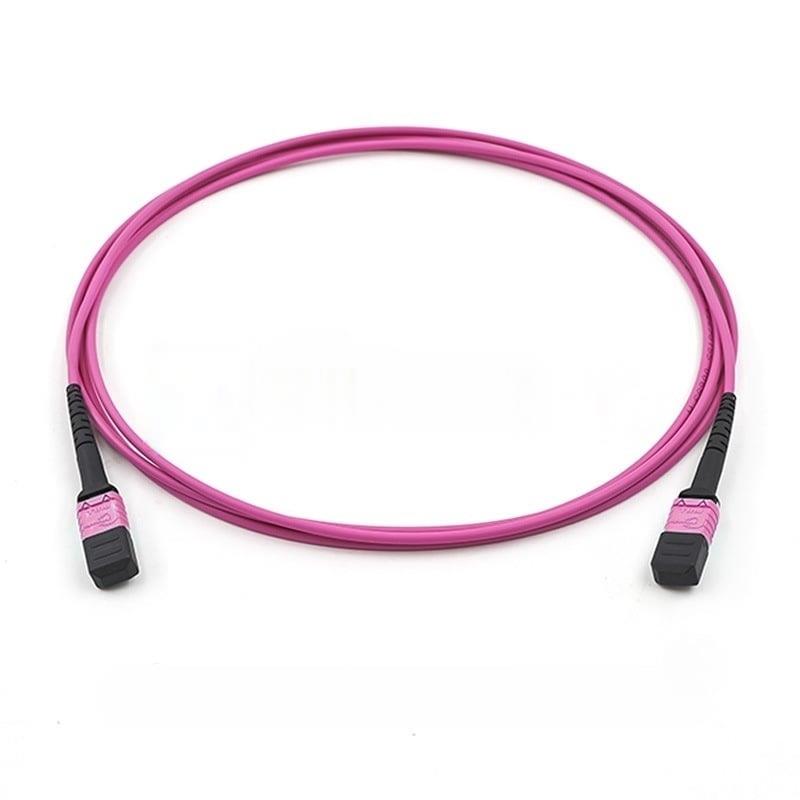

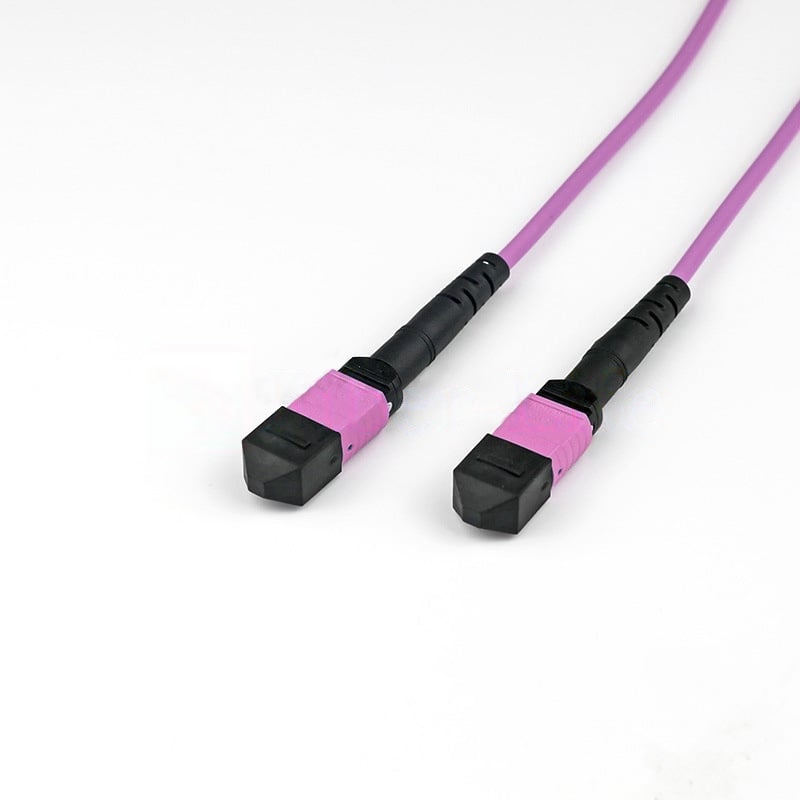

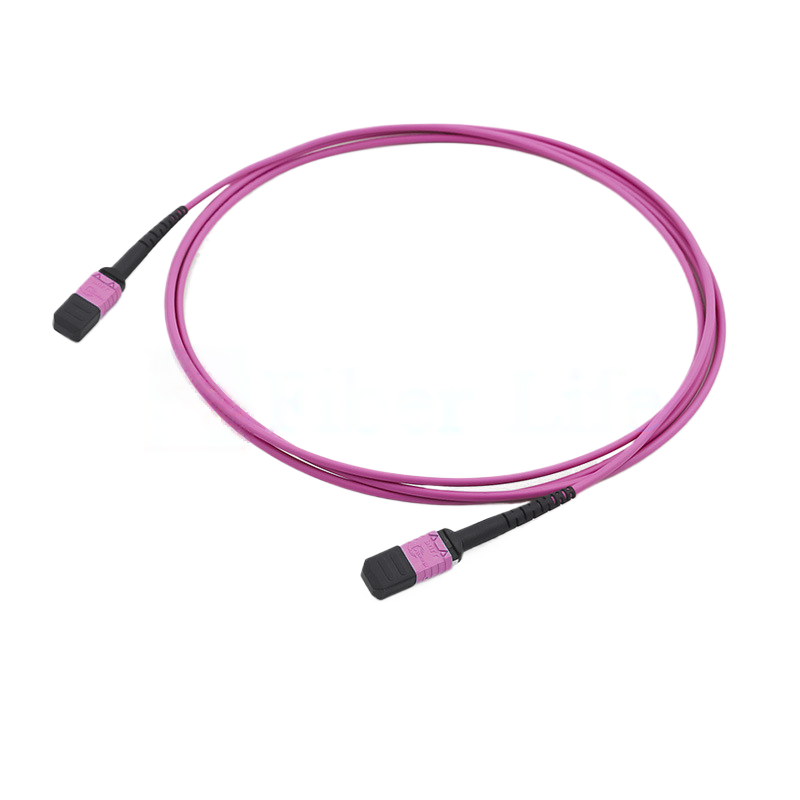

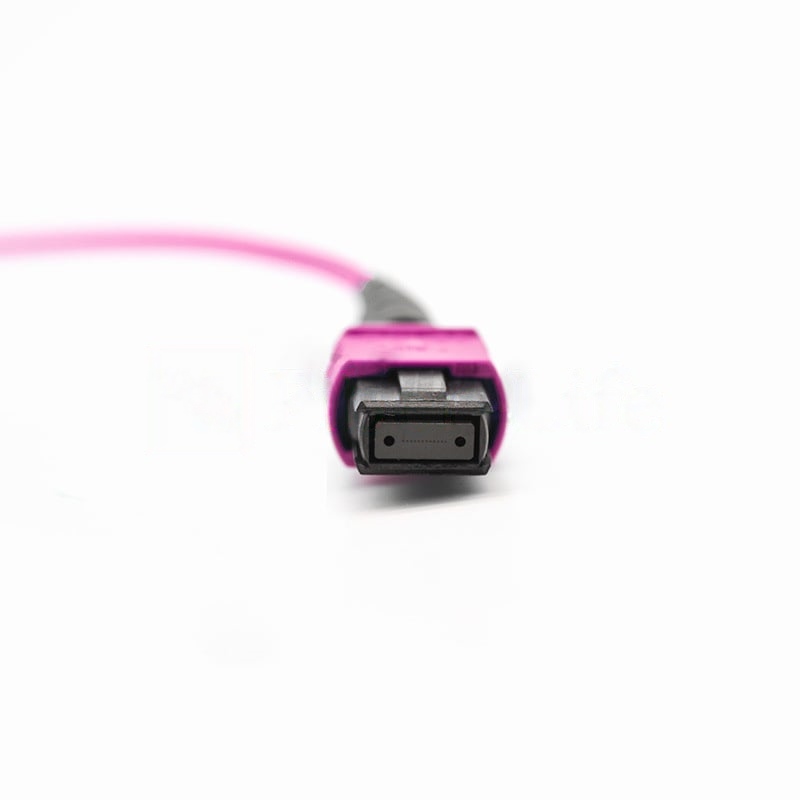

OM4 Multimode MPO-12 Trunk Cable, Magenta
OM4 Multimode MPO-12 Trunk Cable for high-speed data transmission, supporting 100G/400G Ethernet, ideal for data centers and networks requiring high-density, long-distance connectivity.
$28.60
OM4 Multimode MPO-12 To MPO-12 Trunk Cable, Aqua
The OM4 Multimode MPO-12 Trunk Cable is a high-performance multimode fiber trunk cable equipped with a 12-core MPO connector, designed for high-speed data transmission and high-density fiber connectivity. It uses OM4 multimode fiber, offering higher bandwidth and lower attenuation, supporting high-speed network protocols such as 100G and 400G Ethernet, ideal for large-scale data centers, enterprise networks, and high-performance computing environments.
OM4 fiber typically supports longer transmission distances (up to 500 meters), providing high-speed signal transmission over short to medium ranges. The MPO-12 connector offers high-density fiber connections, enabling quick deployment and network expansion. Its compact design and high transmission capacity make it an ideal choice for modern high-speed networks and large-capacity data transmission needs.
Specifications
| Connector A | MPO | Connector B | MPO |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Diameter | 3.0mm | Polish Type | UPC to UPC |
| Insertion Loss (dB) | ≤0.35dB | Return Loss (dB) | ≥20dB |
| Operating Temperature | -10 To 70°C (14 To 158℉) | Storage Temperature | -40 To 80°C (-40 To 176℉) |
Features
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Three Jacket MaterialsThe differences between OFNP, PVC, LSZH jackets.
|
