Customized OM4 Multimode 4-12 Fibers LC/SC/FC/ST/E2000(LSH) Ribbon Fiber Optic Pigtail
Explore SunmaFiber online store for Customized OM4 Multimode 4-12 Fibers LC/SC/FC/ST/E2000(LSH) Ribbon Fiber Optic Pigtail, available for global sales with free shipping on orders over $200.
$9.30

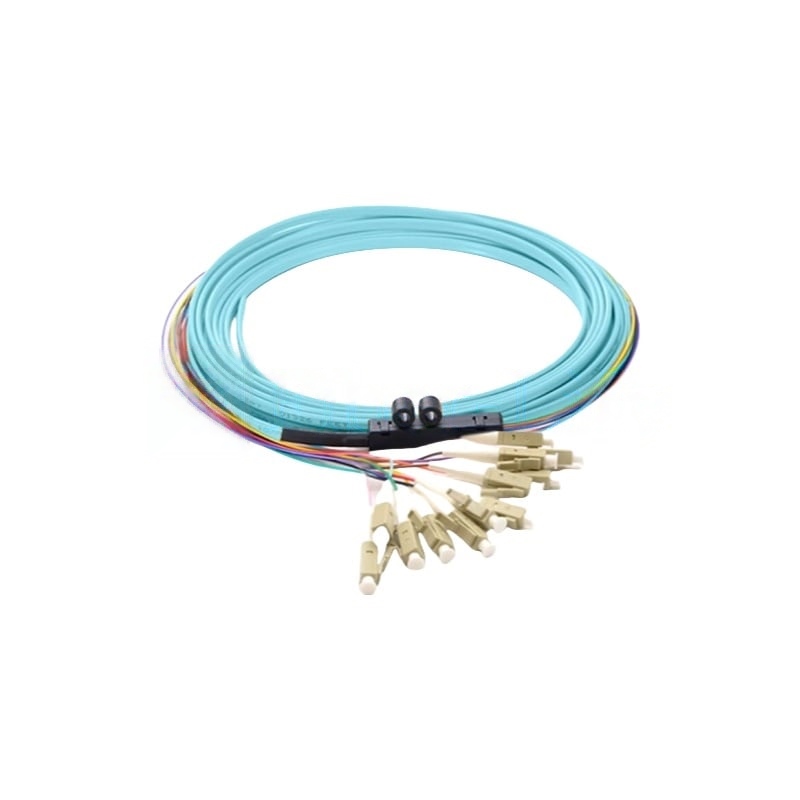

4-12 Fibers LC/SC/FC/ST/E2000(LSH) OM4 Multimode Ribbon Fiber Optic Pigtail

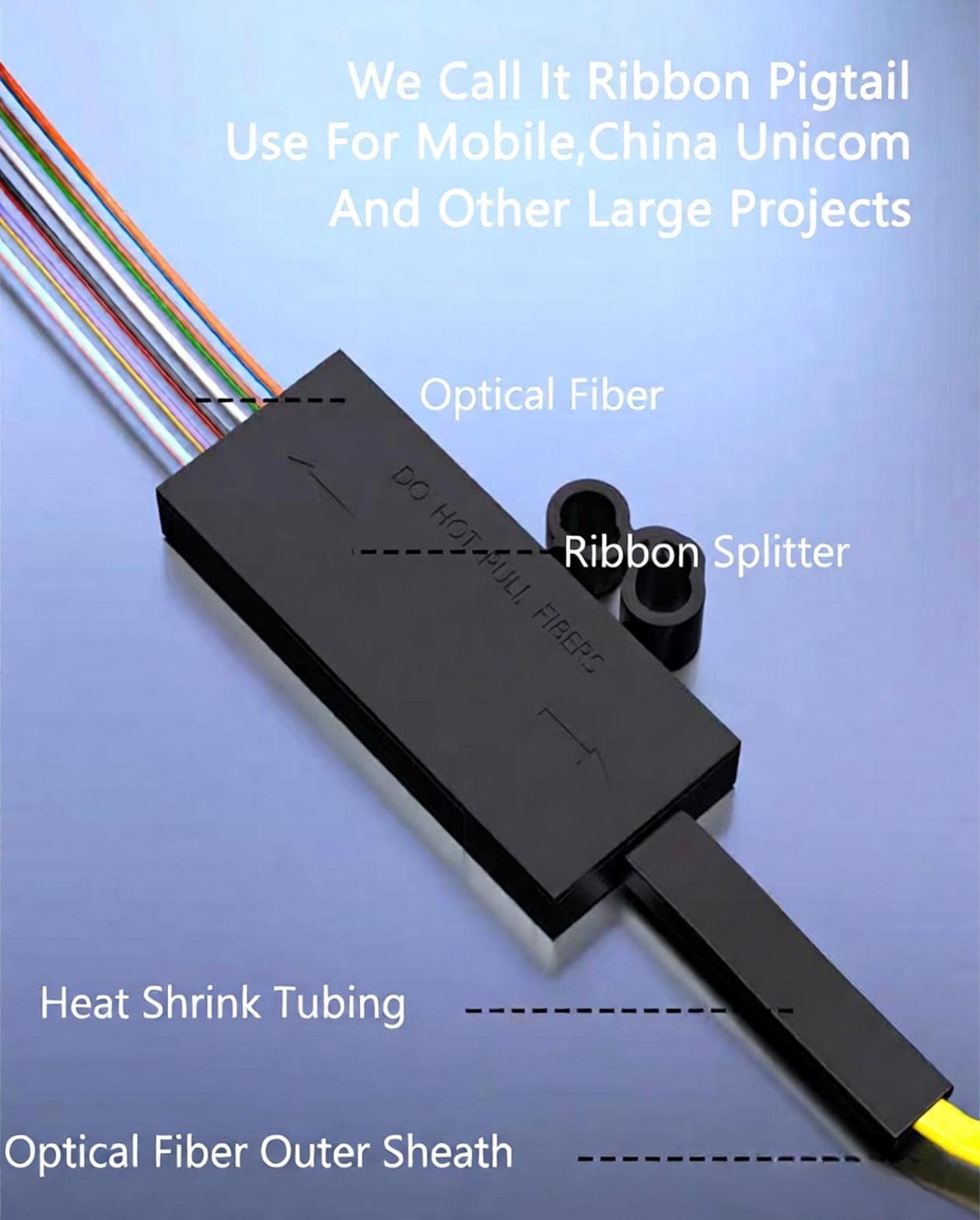

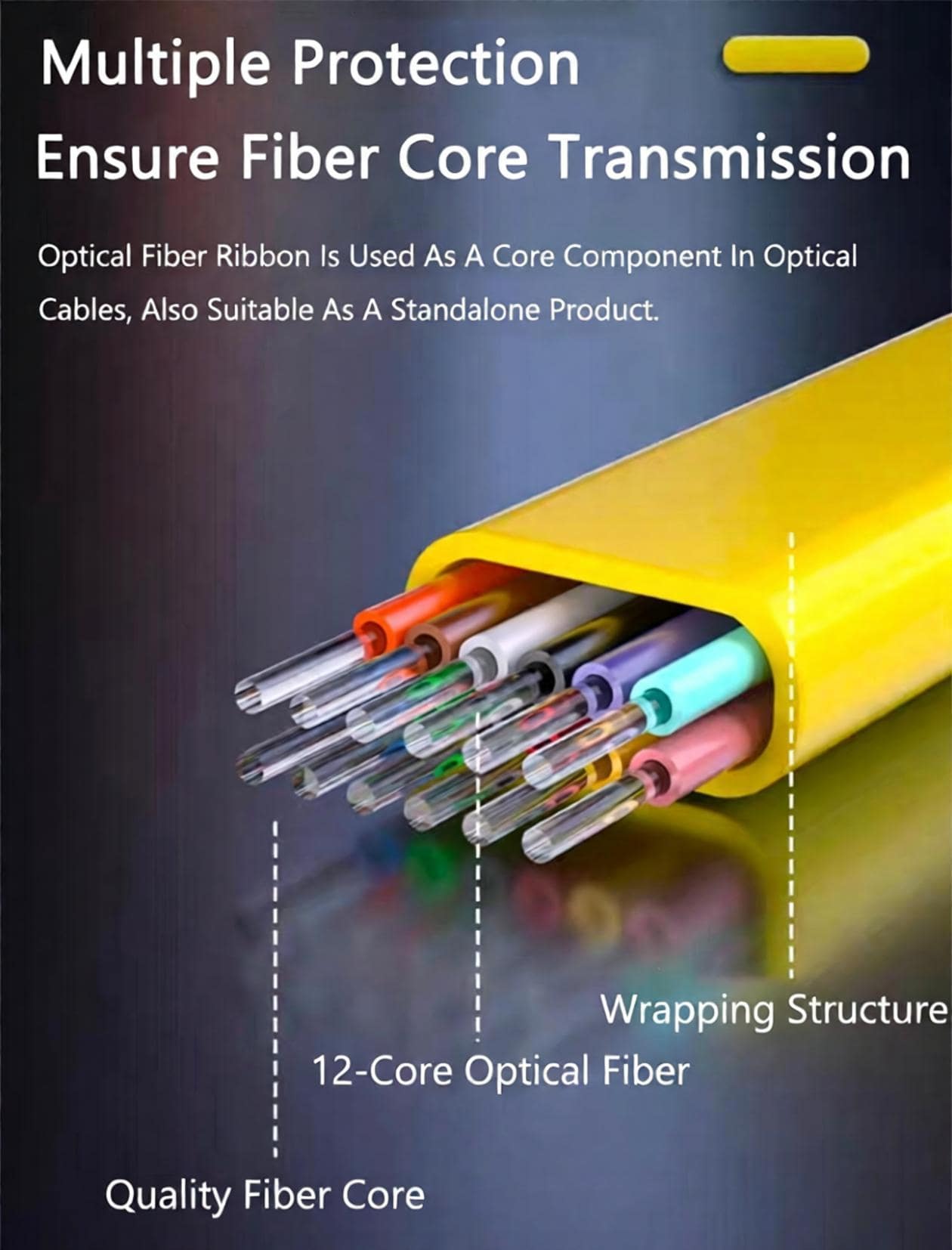

A ribbon fiber optic pigtail is a high-density cable solution designed for efficient management and splicing of multiple optical fibers. Featuring a flat, ribbon-like configuration with fibers arranged in parallel rows, these pigtails allow for mass fusion splicing, where all fibers can be spliced simultaneously, significantly reducing installation time and complexity. Pre-terminated with connectors like LC, SC, or E2000(LSH) on one end and bare fibers on the other, ribbon fiber pigtails are ideal for use in data centers, telecommunications networks, and fiber-to-the-home (FTTH) deployments, where space efficiency and high reliability are paramount.
Specifications
| Connector Type | LC/SC/FC/ST/E2000(LSH) | Polish Type | UPC |
| Fiber Mode | OM4 Multimode | Wavelength | 850/1300 nm |
| Cable Type | Ribbon | Fiber Count | 4/6/8/12 |
| Fiber Grade | Bend Insensitive | Min. Bend Radius (Color-coded) | 7.5 mm |
| Insertion Loss (dB) | ≤0.3 | Return Loss (dB) | ≥20 |
| Attenuation At 850nm | 3.0 dB/km | Attenuation At 1300nm | 1.0 dB/km |
| Cable Jacket | PVC/LSZH | Cable Outside Diameter (OD) | 0.9mm |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
