Customized Simplex OM1/OM2 LC/SC/FC/ST/E2000(LSH) Fiber Optic Pigtail
Explore SunmaFiber online store for Customized Simplex OM1/OM2 LC/SC/FC/ST/E2000(LSH) Fiber Optic Pigtail, available for global sales with free shipping on orders over $200.
$1.36

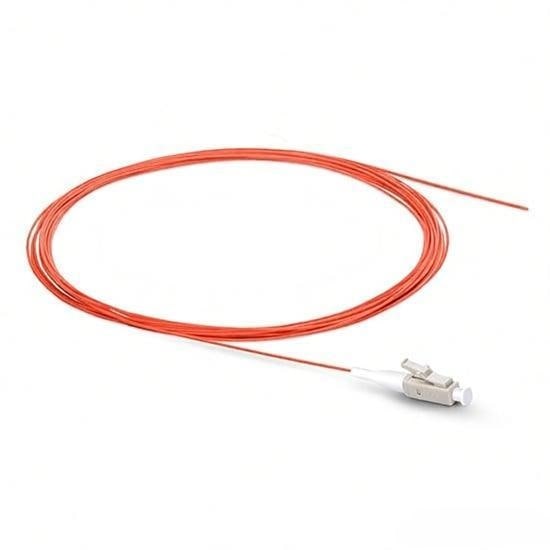

OM1/OM2 LC/SC/FC/ST/E2000(LSH) Simplex OM1/OM2 Multimode Fiber Optic Pigtail
A Simplex Multimode Fiber Optic Pigtail is a fiber cable with a single strand of multimode fiber, featuring a connector on one end and a bare fiber on the other. It’s commonly used in short-distance optical communication applications, such as within buildings or campuses, where it enables high-speed data transmission. The pigtail connects optical devices to a multimode fiber network or is spliced with other fibers to extend the network. Its design ensures efficient, reliable data transmission in environments requiring high data throughput over shorter distances.
Specifications
| Connector Type | LC/SC/FC/ST/E2000(LSH) | Polish Type | UPC |
| Fiber Mode | OM1/OM2 | Wavelength | 850/1300 nm |
| Fiber Count | Simplex | Cable Jacket | PVC/LSZH |
| Fiber Grade | G.651(OM1)/Bend lnsensitive(OM2) | Minimum Bend Radius | 15 mm(OM1)/7.5 mm(OM2) |
| Cable Outside Diameter (OD) | 0.9/2.0mm | Jacket Color | Orange |
| Insertion Loss (dB) | ≤0.3 dB | Return Loss (dB) | ≥20 dB |
| Attenuation At 1310nm | 3.0 dB/km | Attenuation At 1550nm | 1.0 dB/km |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Quality Certifications
.svg)
Feature
Strong tensile strength
Adopt new environmentally friendly PVC and LSZH materials, strong tensile strength, low carbon and environmentally friendly.
Internal structure
Fiber pigtail structure diagram.

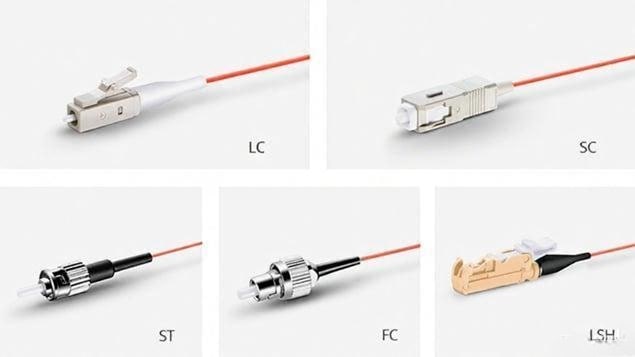

Optional Connectors
A range of connectors is available, including LC, SC, FC, ST, and LSH, with UPC polish options, to accommodate diverse application requirements.
Multiple processes
Multiple processes strictly screen and ensure quality.
