Customized Simplex OM3 Multimode LC/SC/FC/ST/E2000(LSH) Fiber Optic Pigtail
Shop at SunmaFiber for premium Customized Simplex OM3 Multimode LC/SC/FC/ST/E2000(LSH) Fiber Optic Pigtail. Enjoy global sales and free shipping on purchases over $200.
$1.50

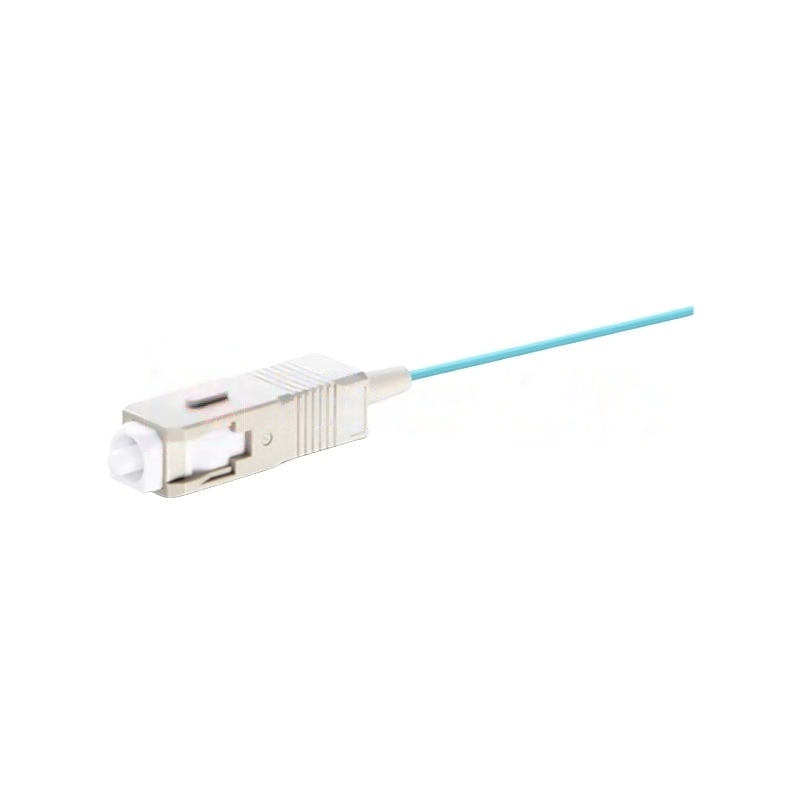

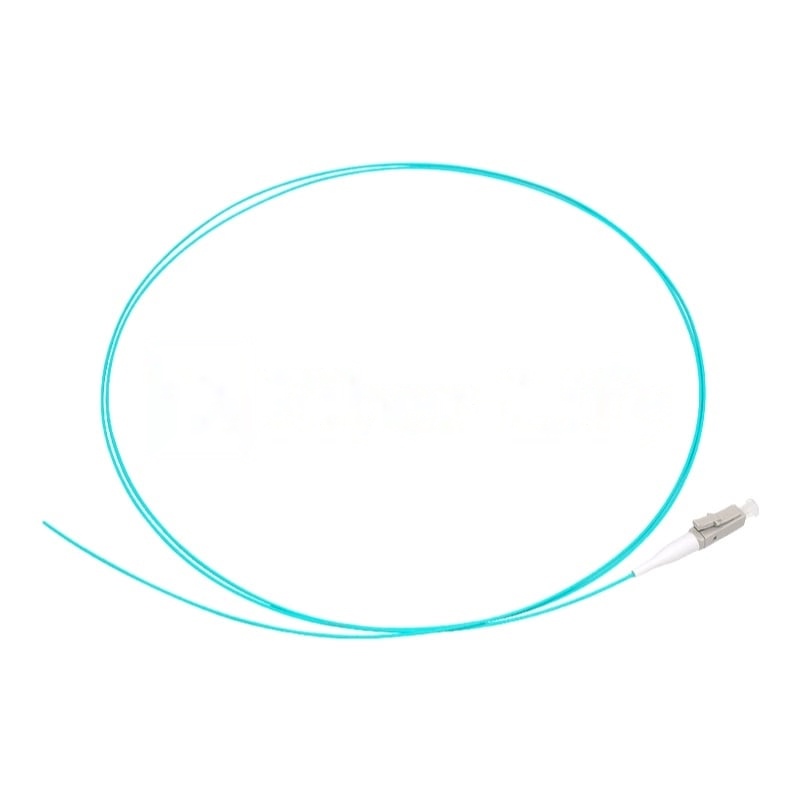

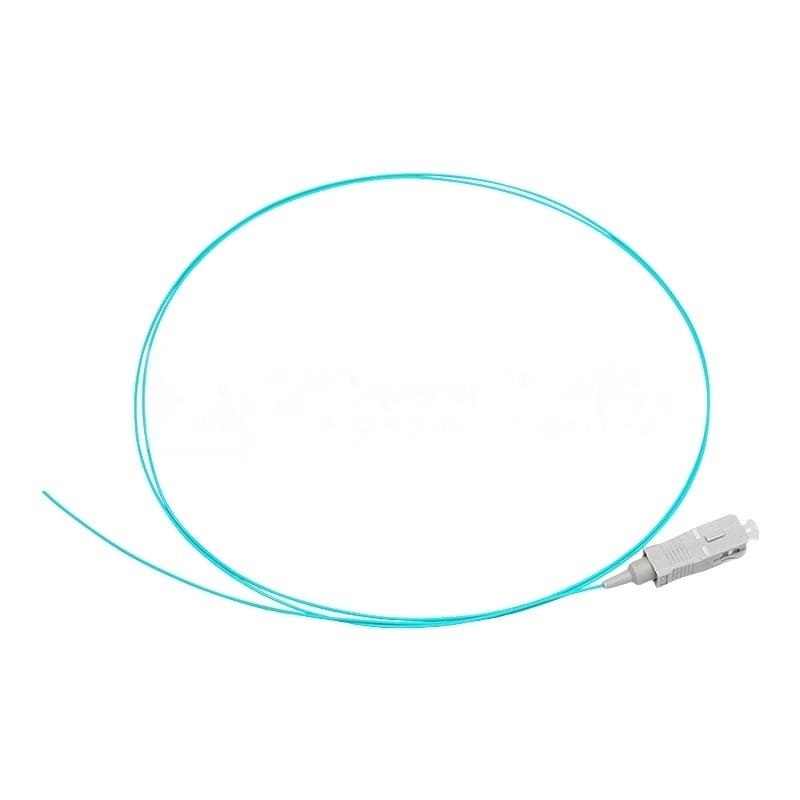

LC/SC/FC/ST/E2000(LSH) Simplex OM3 Multimode Fiber Optic Pigtail
A Simplex OM3 multimode fiber optic pigtail is a single-core fiber optic connector used widely for high-speed, short-distance data transmission. The OM3 standard indicates multimode fiber, typically supporting 10G, 40G, and 100G networks, with a core diameter of 50 microns and optimized for 850 nm wavelength lasers. Multimode fiber can transmit multiple light signals simultaneously through different paths, making it ideal for data centers and enterprise networks. The pigtail has a pre-installed fiber optic connector on one end, while the other end is bare fiber, designed to be spliced into fiber distribution frames or terminal boxes, ensuring reliable connections in fiber optic cabling systems.
Specifications
| Connector Type | LC/SC/FC/ST/E2000(LSH) | Polish Type | UPC |
| Fiber Mode | OM3 | Wavelength | 850/1300 nm |
| Fiber Count | Simplex | Cable Jacket | PVC/LSZH |
| Fiber Grade | Bend lnsensitive | Minimum Bend Radius | 7.5 mm |
| Cable Outside Diameter (OD) | 0.9/2.0mm | Jacket Color | Aqua |
| Insertion Loss (dB) | ≤0.3 dB | Return Loss (dB) | ≥20 dB |
| Attenuation At 1310nm | 3.0 dB/km | Attenuation At 1550nm | 1.0 dB/km |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Quality Certifications
.svg)
Feature

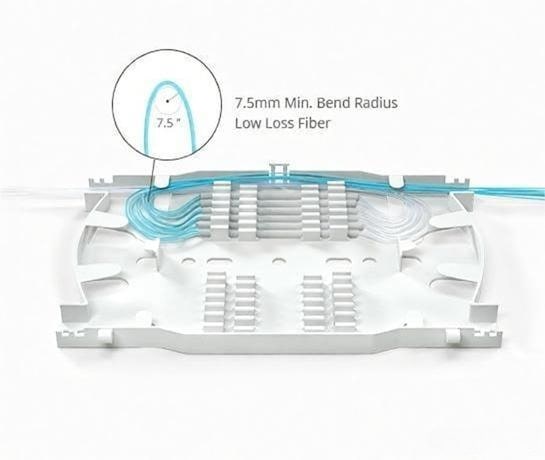

Suitable for high-density splicing and fiber fusion applications
Strong tensile strength
Adopt new environmentally friendly PVC and LSZH materials, strong tensile strength, low carbon and environmentally friendly.
Internal structure
Fiber pigtail structure diagram.

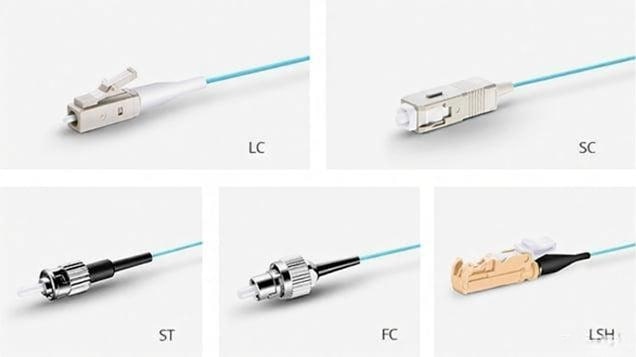

Optional Connectors
A range of connectors is available, including LC, SC, FC, ST, and LSH, with UPC polish options, to accommodate diverse application requirements.

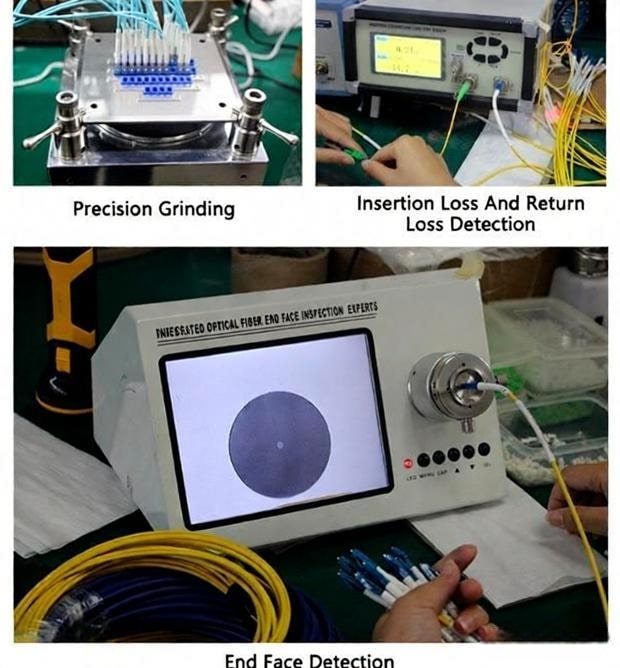

Multiple processes
Multiple processes strictly screen and ensure quality.
