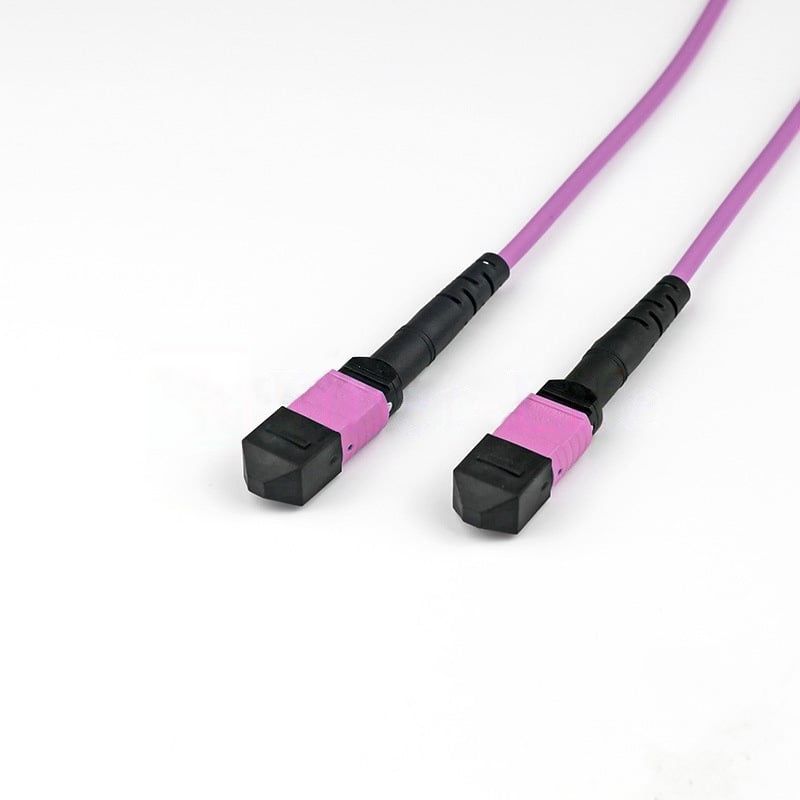

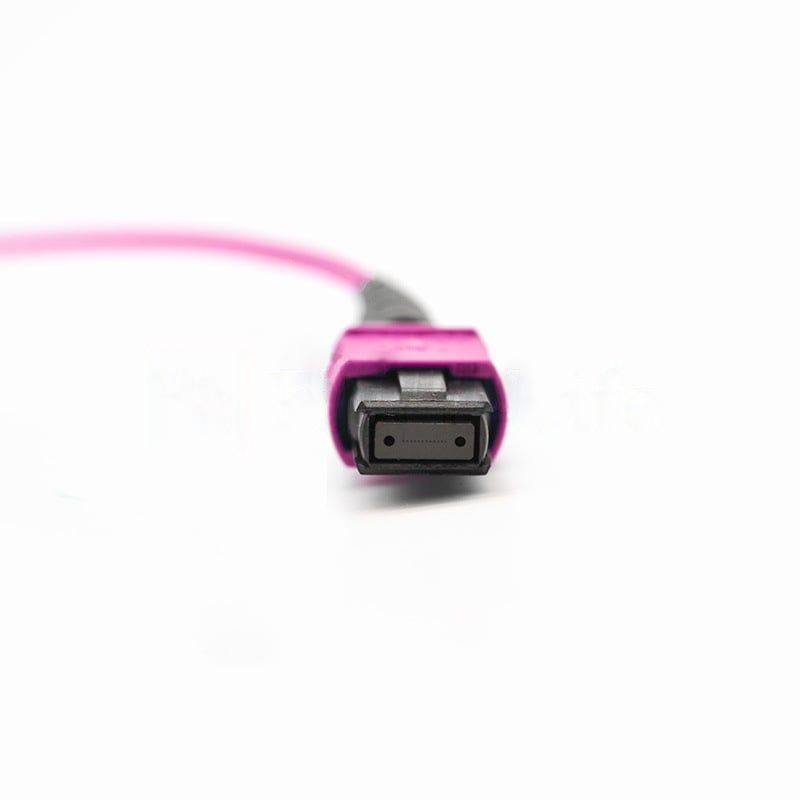

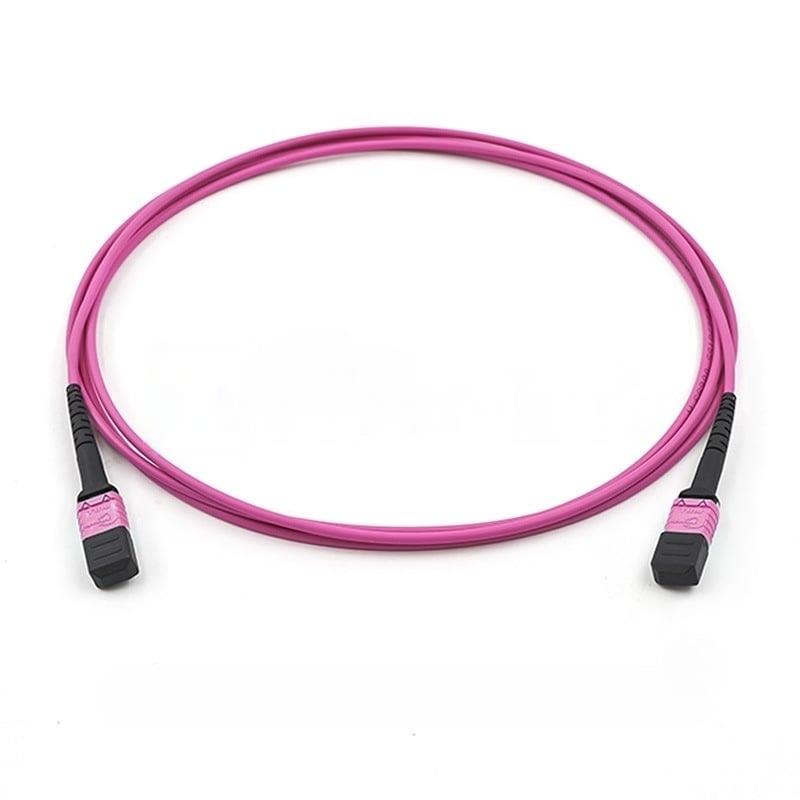

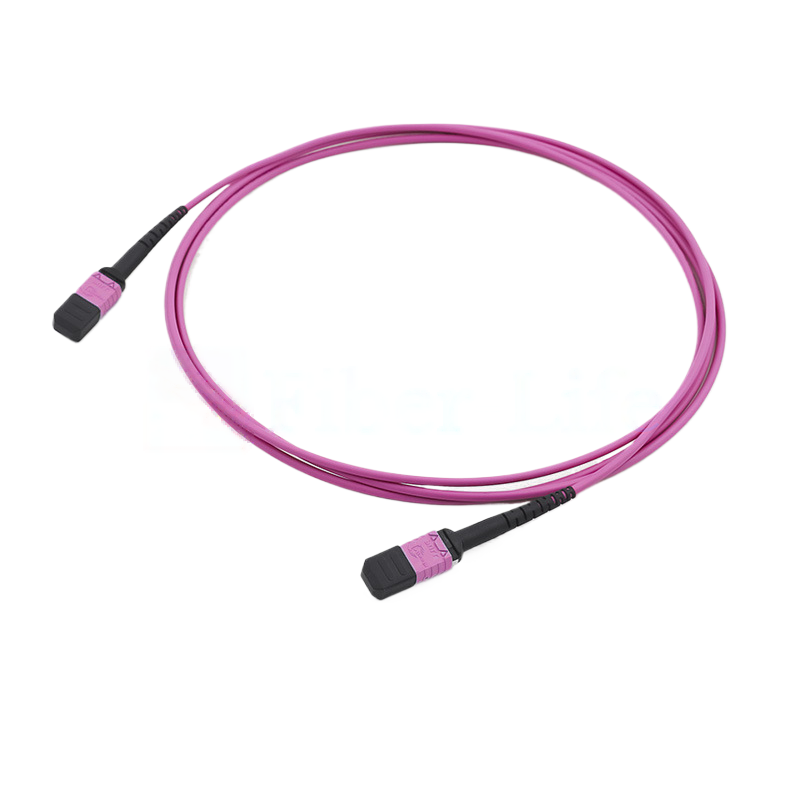

OM4 Multimode MTP-12 Trunk Cable, Magenta
OM4 MTP-12 Trunk Cable delivers high-speed, high-density connections for data centers, ideal for low-latency, short-distance transmissions up to 100Gbps over 150 meters.
$40.50
OM4 Multimode MTP-12 To MTP-12 Trunk Cable, Aqua
The OM4 Multimode MTP-12 Trunk Cable is a high-performance multimode fiber optic trunk cable designed for data centers and high-density network applications, supporting ultra-high-speed, short-distance data transmission. Utilizing OM4 fiber, which offers enhanced bandwidth and longer reach than OM3, it can transmit up to 400 meters at 10Gbps and up to 150 meters at 40Gbps and 100Gbps, making it ideal for high-bandwidth demands.
Equipped with 12-fiber MTP connectors on both ends, it allows for quick, high-density connections, compatible with MPO connectors. As a trunk cable, it links patch panels and devices to form a high-speed backbone, streamlining cable structure and conserving space. This cable is typically used for short-distance, high-bandwidth connections between servers, switches, and storage devices, making it a perfect choice for modern data centers requiring low latency and high data rates.
Specifications
| Connector A | US Conec MTP | Connector B | US Conec MTP |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Diameter | 3.0mm | Polish Type | UPC to UPC |
| Insertion Loss (dB) | ≤0.35dB | Return Loss (dB) | ≥20dB |
| Operating Temperature | -10 To 70°C (14 To 158℉) | Storage Temperature | -40 To 80°C (-40 To 176℉) |
Features

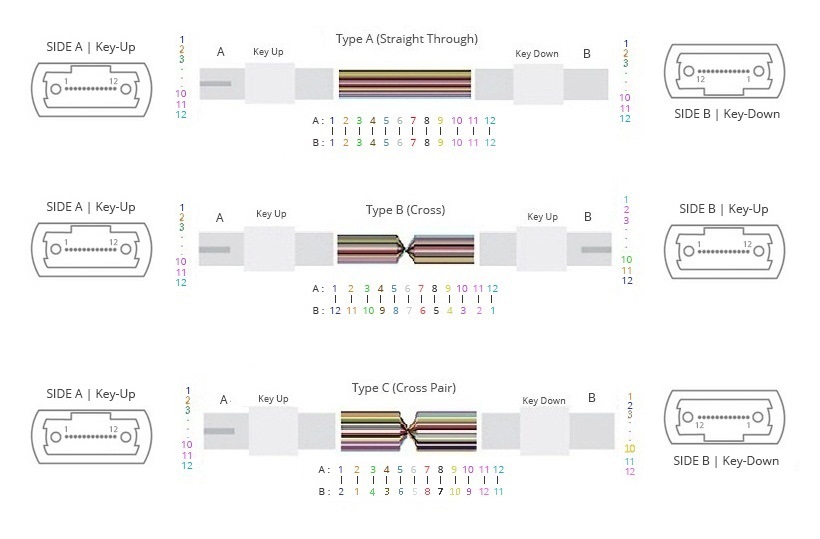

Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Three Jacket MaterialsThe differences between OFNP, PVC, LSZH jackets.
|
Related Products

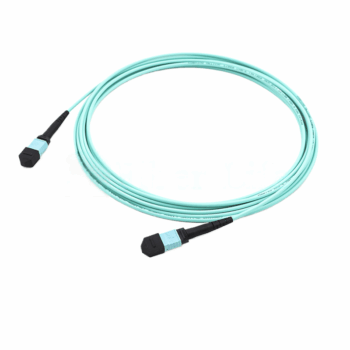

OM3 multimode MTP-12 trunk cable offers high-speed, high-density connections for data centers, ideal for low-latency, short-distance transmissions up to 100 meters at 100Gbps.

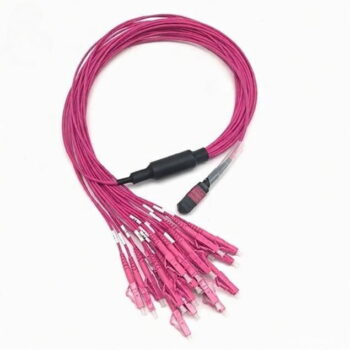

High-performance OM4 Multimode LC/SC/FC/ST to MTP-24 breakout cable for data centers and high-density networks, offering low attenuation, high bandwidth, and flexible fiber management.

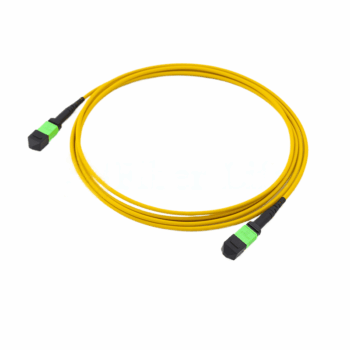

High-density OS2 SingleMode MTP-24 Trunk Cable for long-distance, high-speed fiber connections in data centers and telecom networks, optimizing space and enhancing transmission reliability.
