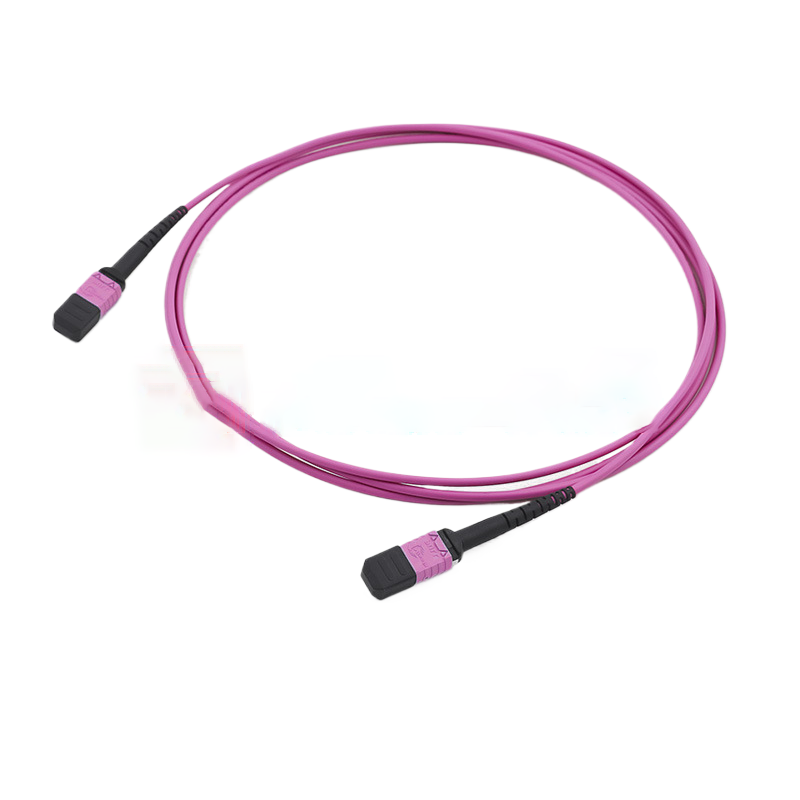

OM4 Multimode MTP-24 Trunk Cable, Magenta
OM4 MTP-24 Trunk Cable provides high-speed, high-density connections for data centers, ideal for low-latency, short-distance transmissions up to 100Gbps over 150 meters.
$108.40

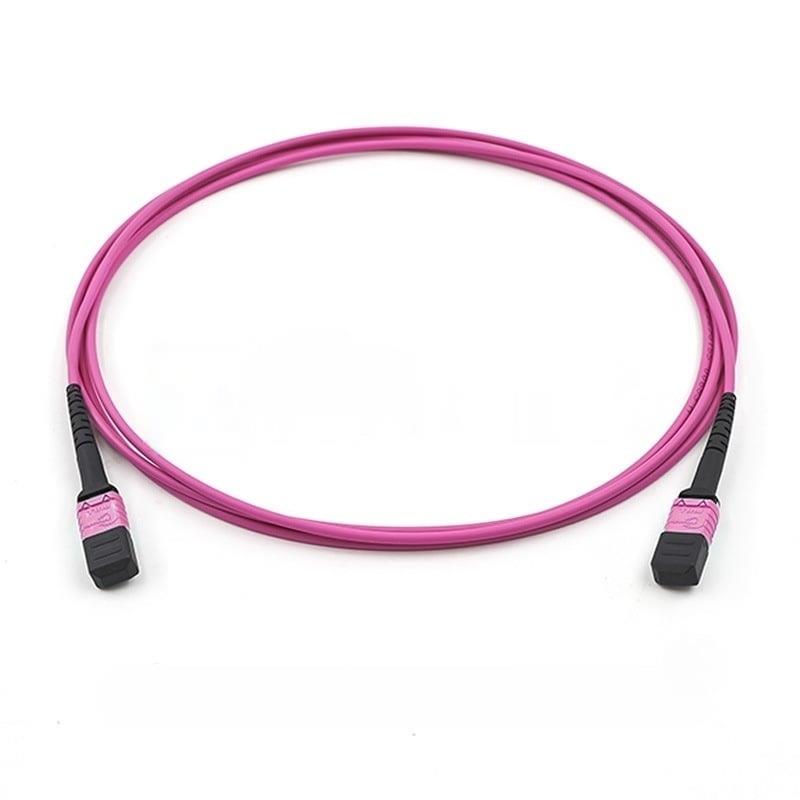

OM4 Multimode MTP-24 To MTP-24 Trunk Cable
The OM4 Multimode MTP-24 Trunk Cable is a high-bandwidth multimode fiber optic trunk cable designed for data centers and high-density network environments, supporting ultra-high-speed, short-distance data transmission. Built with OM4 fiber, it provides enhanced bandwidth and extended reach over OM3, enabling transmission up to 400 meters at 10Gbps and up to 150 meters at 40Gbps and 100Gbps, ideal for high-bandwidth applications.

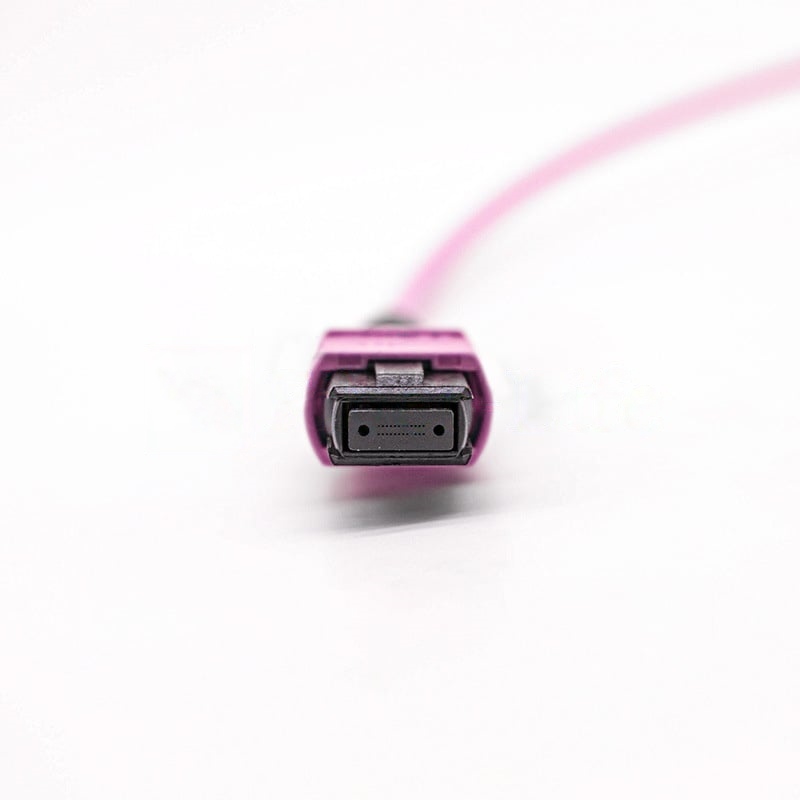

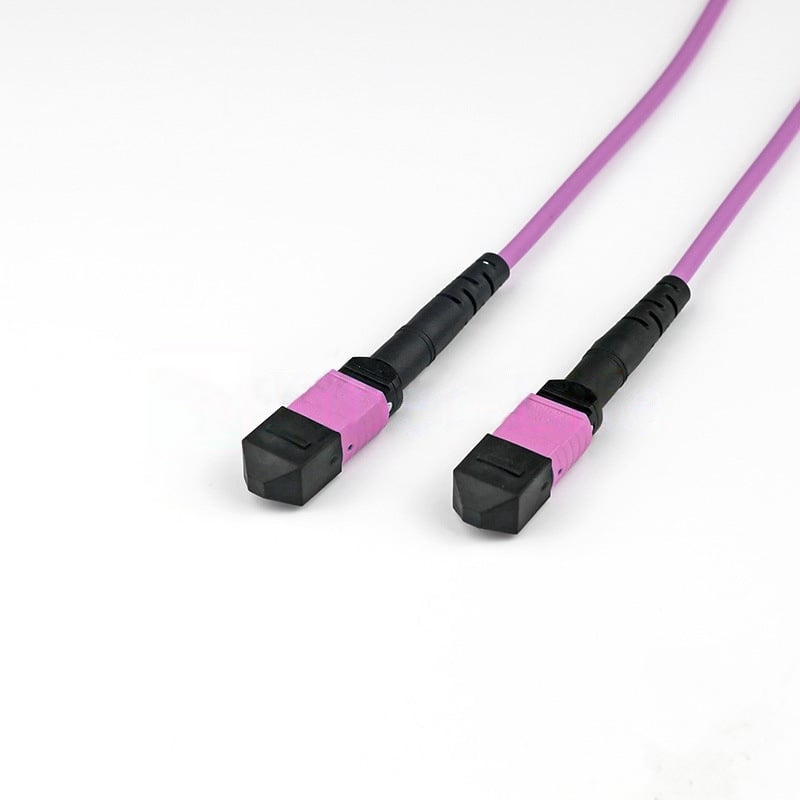

Equipped with 24-fiber MTP connectors on both ends, it allows for rapid, high-density connections compatible with MPO connectors, making it perfect for high-density cabling needs. As a trunk cable, it links patch panels and devices, creating a high-speed backbone that simplifies cabling structures, conserves space, and boosts cabling efficiency. Commonly used for short-distance, high-bandwidth connections between servers, switches, and storage devices, the OM4 MTP-24 Trunk Cable is an optimal choice for modern data centers demanding high performance and efficient cabling.
Specifications
| Connector A | US Conec MTP | Connector B | US Conec MTP |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Diameter | 3.0mm | Polish Type | UPC to UPC |
| Insertion Loss (dB) | ≤0.35dB | Return Loss (dB) | ≥20dB |
| Operating Temperature | -10 To 70°C (14 To 158℉) | Storage Temperature | -40 To 80°C (-40 To 176℉) |
Features
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Three Jacket MaterialsThe differences between OFNP, PVC, LSZH jackets.
|
