OSFP 800GBASE-DR8 Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Optical Transceiver Module, Support 8 x 100G-DR, Arista Networks Compatible
Shop at SunmaFiber for premium OSFP 800GBASE-DR8 Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Optical Transceiver Module, Support 8 x 100G-DR, Arista Networks Compatible. Enjoy global sales and free shipping on purchases over $200. Get reliable fiber transceiver module today.
$1,199.00
Arista Networks Compatible 800GBASE-DR8 OSFP Optical Transceiver Module (SMF, 1310nm, 500m, Dual MTP/MPO-12, DOM, Finned Top)
The 800GBASE-DR8 OSFP transceiver supports up to 500m link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G DR4 or 8x 100G DR, Data Center and Cloud Networks.
Specifications
| Arista Compatible | OSFP-DR8-800G | Vendor Name | SunmaFiber |
| Form Factor | OSFP Finned Top | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 500m |
| Connector | Dual MTP/MPO-12 APC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.9~4.0dBm | Minimum Receiver Power | -5.9dBm |
| Power Budget | 3dB | Receiver Overload | 5dBm |
| Power Consumption | ≤16.5W | Extinction Ratio | >3.5dB |
| Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
| CDR (Clock And Data Recovery) | TX & RX Built-in DSP | Inbuilt FEC | No |
| Protocols | IEE802.3ck, IEEE 802.3cu, OSFP MSA | Warranty | 5 Years |
Quality Certifications
.svg)
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features

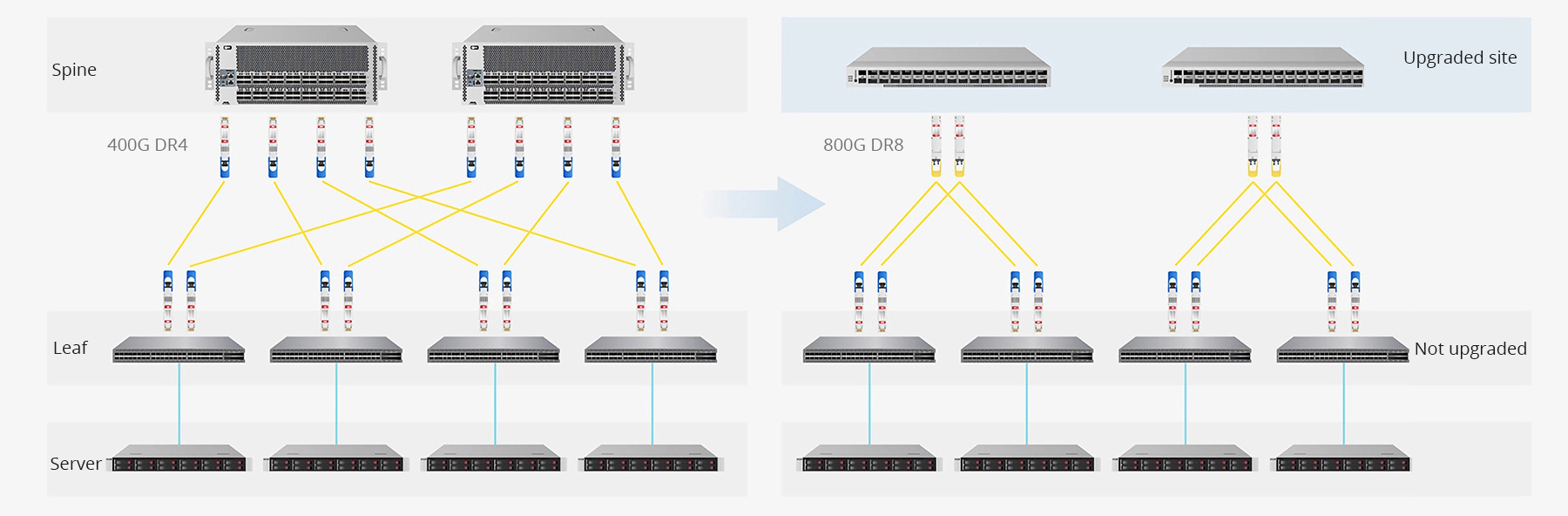

Upgrade Your Network One Site at a Time
Upgrade just one site to 800G gear, and still connect it to the existing 400G sites.
Connect New 800G Sites to Legacy 400G SitesFull Utilize Your 800G Port BandwidthRe-use 400G Optics in New 800G Ports
Leading Performance and Quality for 800G

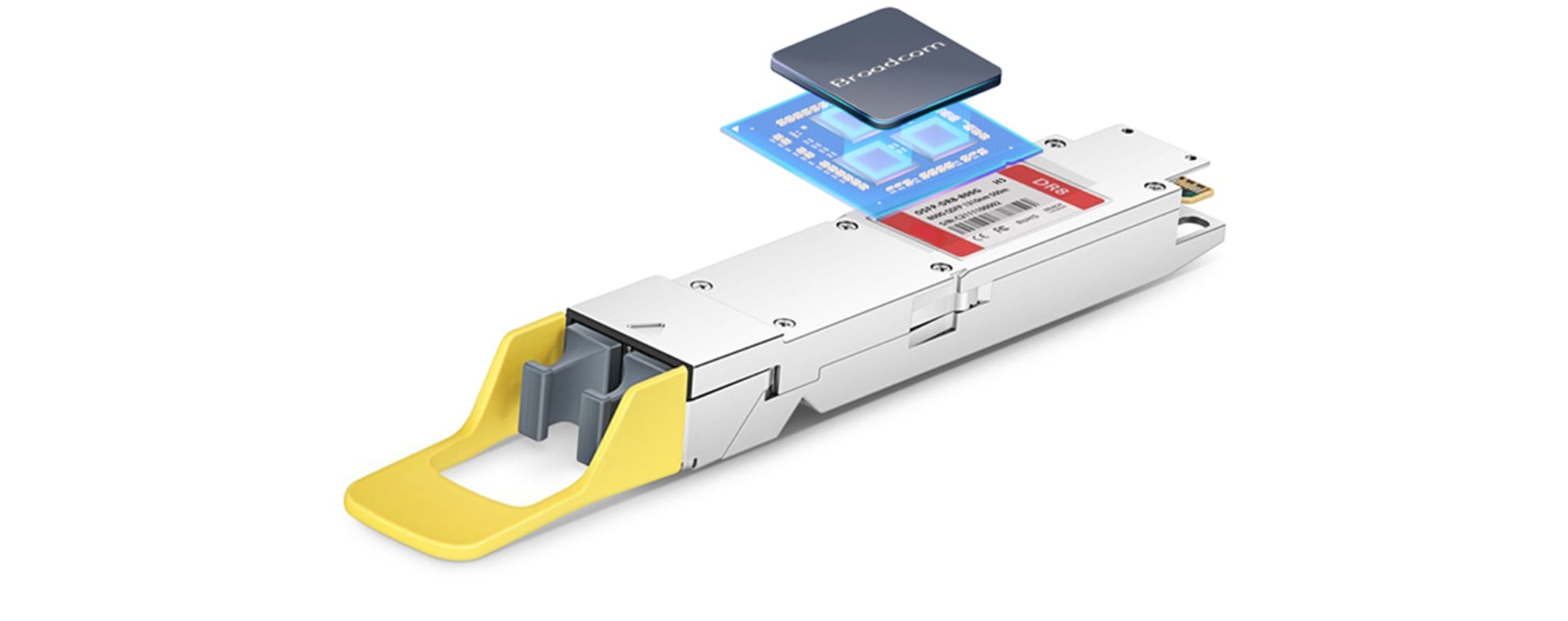

Built-in Broadcom DSP Chip, the OSFP transceiver offers high-speed, and low-power in 800G links.
Broadcom 7nm DSP≤16.5W53G EML Laser
Stable TransmissionLow Power ConsumptionEnsure Production
