QSFP28 100GBASE-PSM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Support 4 x 25G-LR, Cisco QSFP-100G-PSM4-S Compatible
Explore SunmaFiber online store for QSFP28 100GBASE-PSM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Support 4 x 25G-LR, Cisco QSFP-100G-PSM4-S Compatible , Global sales, Free shipping on orders over $200.
$370.00

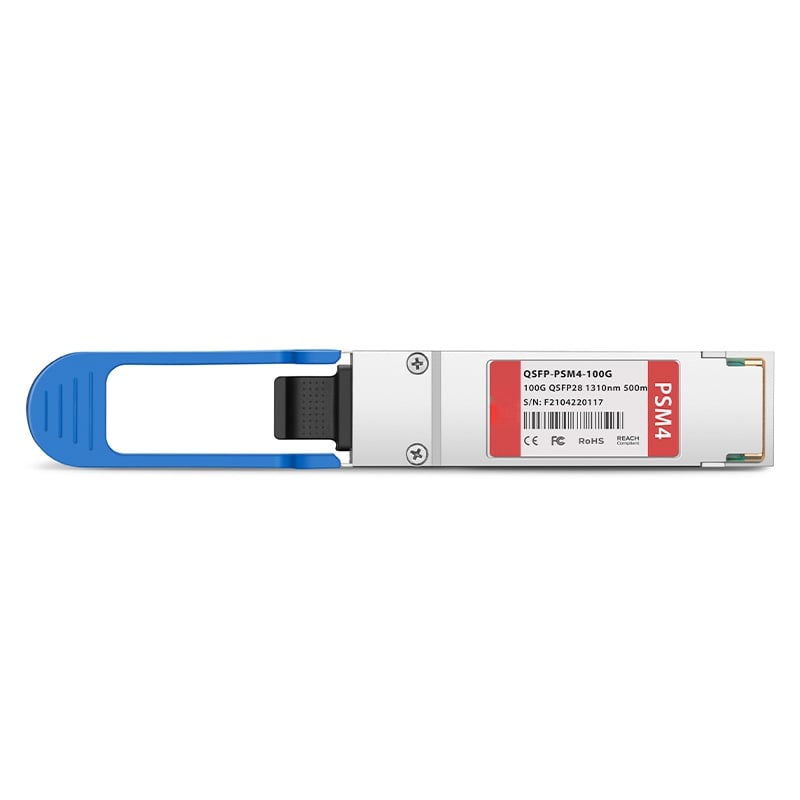

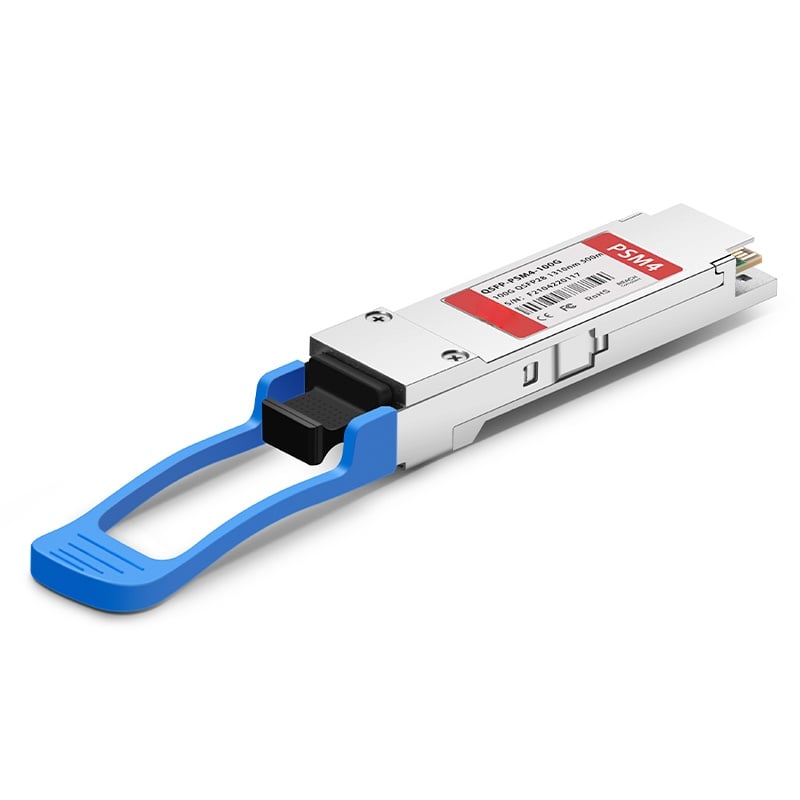

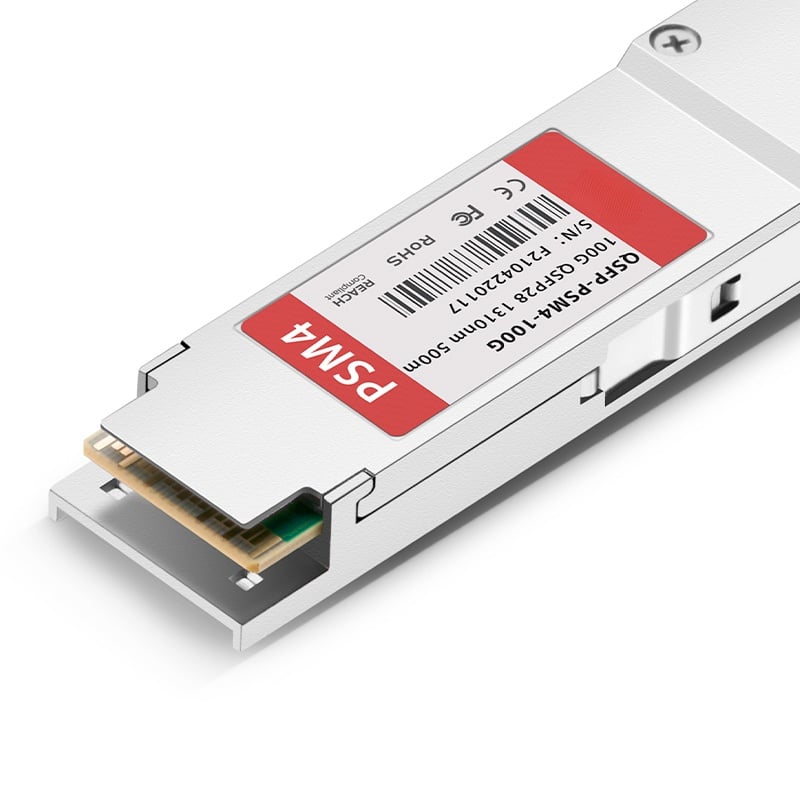

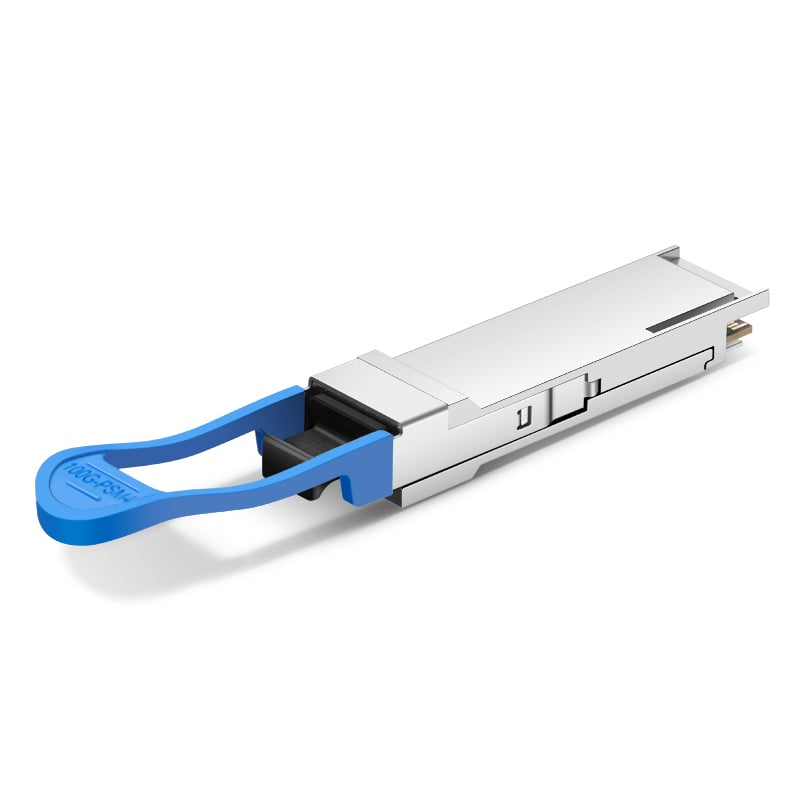

Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)
The Cisco QSFP-100G-PSM4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
Specifications
| Cisco Compatible | QSFP-100G-PSM4-S | Vendor Name | SunmaFiber |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 500m |

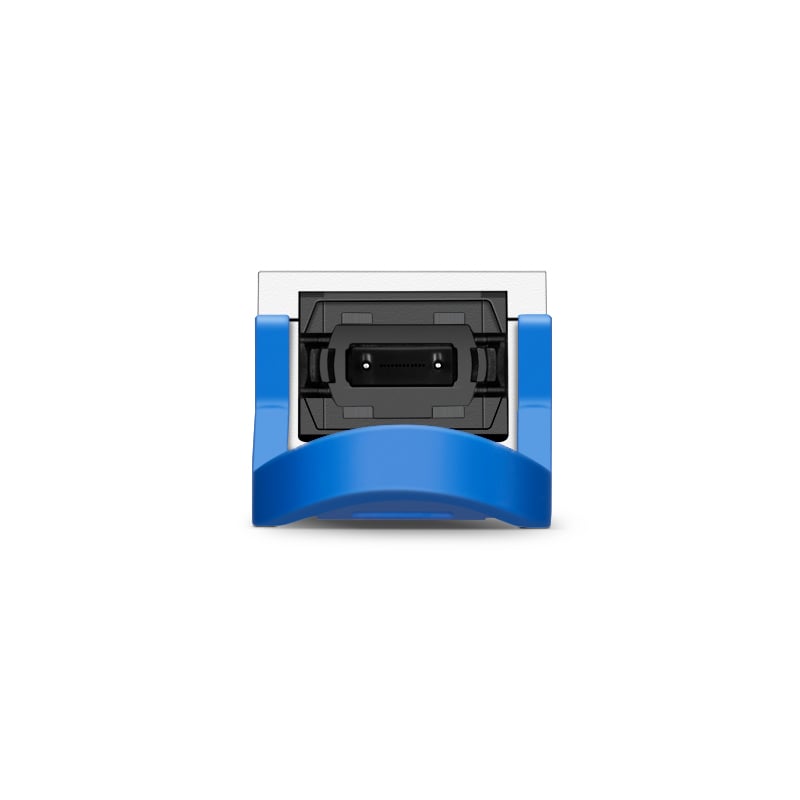

| Connector | MTP/MPO-12 | Media | SMF |
| Transmitter Type | 4x DFB | Receiver Type | PIN |
| TX Power | -9.4~2dBm | RX Power | -12.66~2dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >3.5dB |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
| DDM/DOM | Supported | Commercial Temperature Range | 0 To 70°C (32 To 158°F) |
| Packaging Technology | BOX Packaging | Modulation Format | 4x 25G NRZ |
| Core Size | 9um/125um | Protocols | QSFP28 MSA Compliant |
Quality Certifications
.svg)
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features

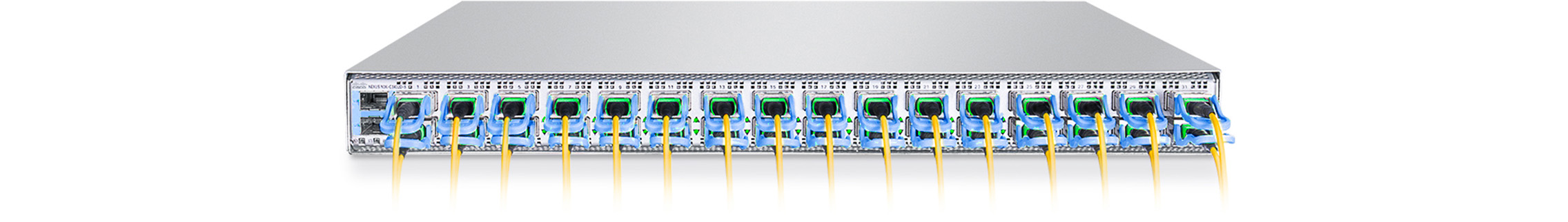

100G Connectivity for Data Center
Featured with 3.5W low-power, high-density and high-speed, the QSFP28 transceiver offers a popular way to help you quickly ramp up to 100G transmission.

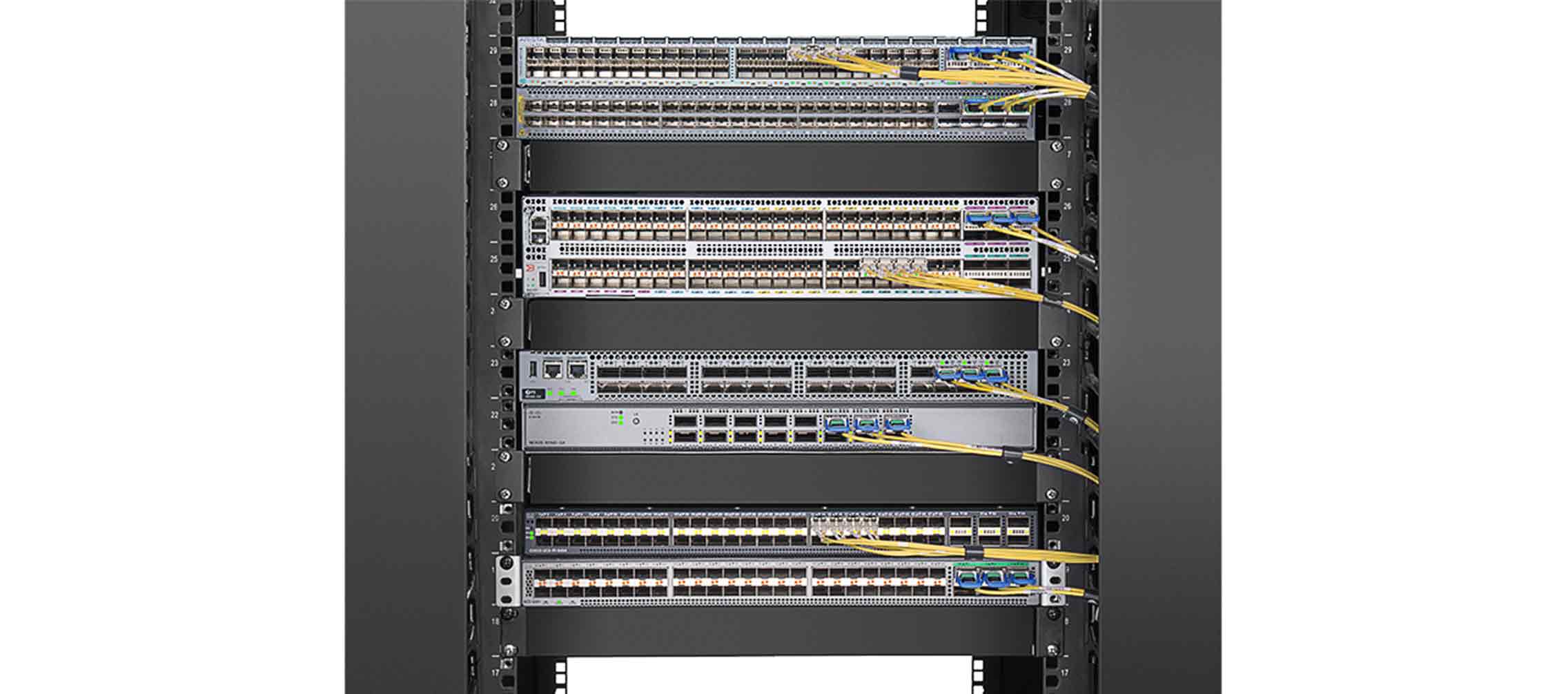

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

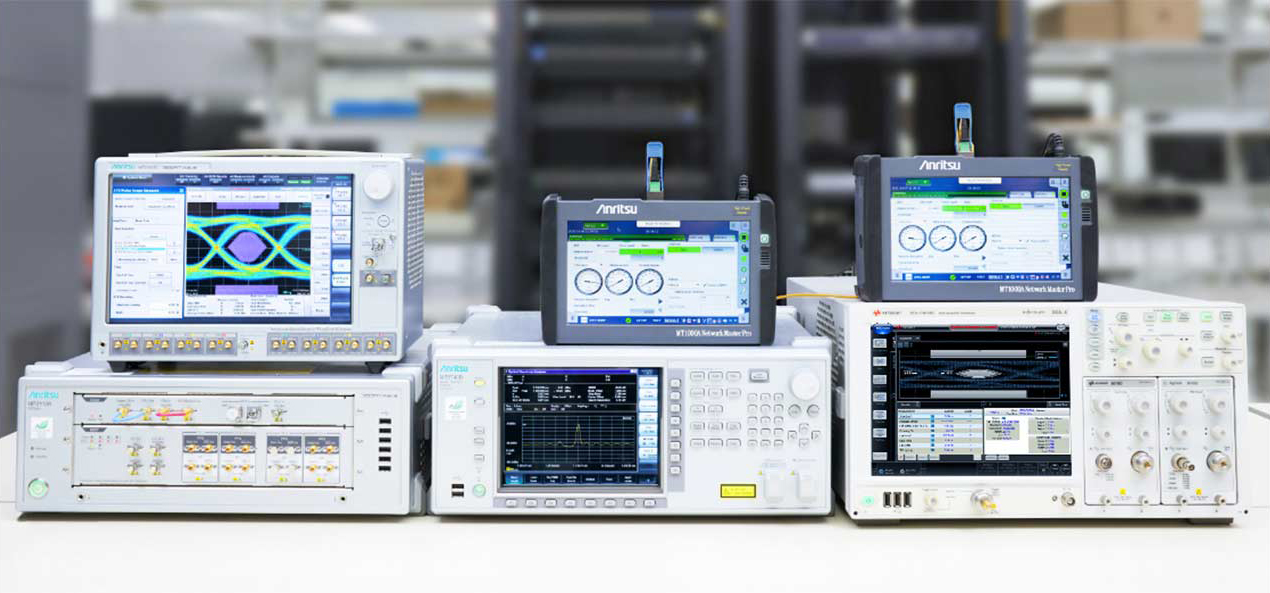

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Optical Spectrum TestEye Pattern TestBit Error Rate TestTemperature Test
No Packet Loss & CRCMask Margin >20%BER 1E-120~70°C
