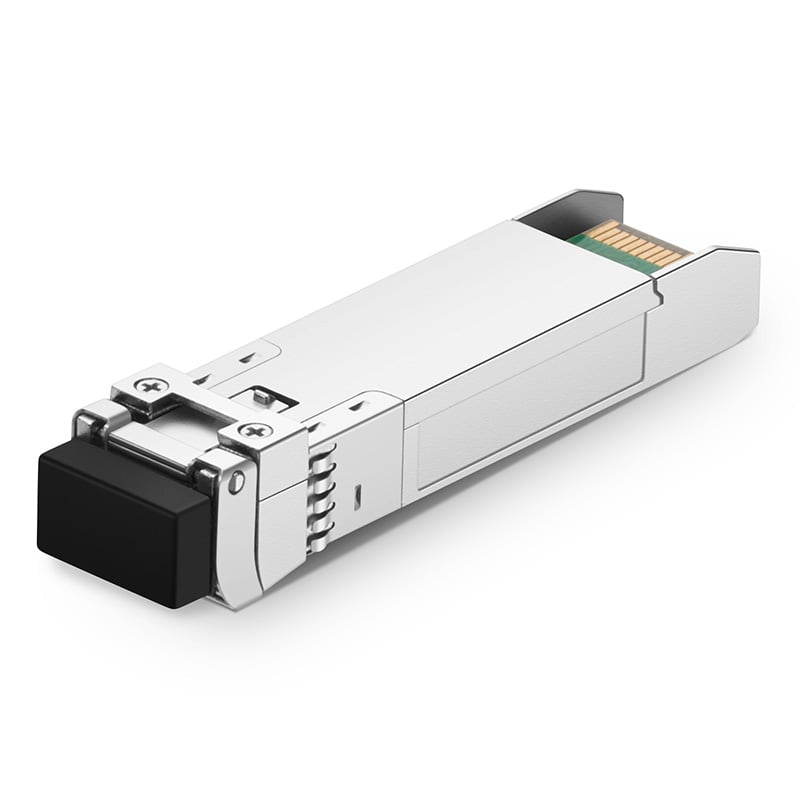

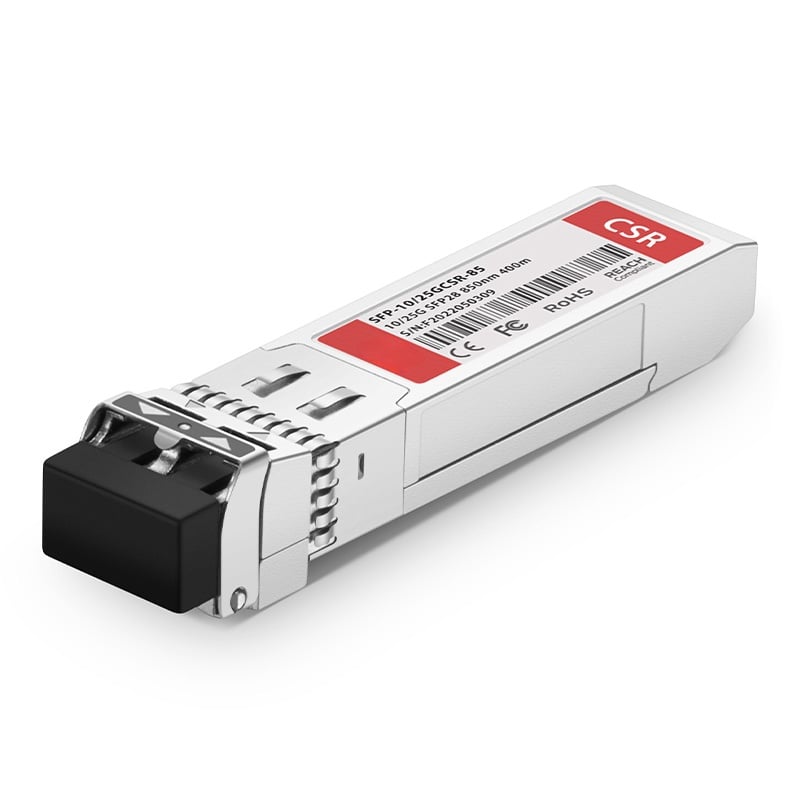

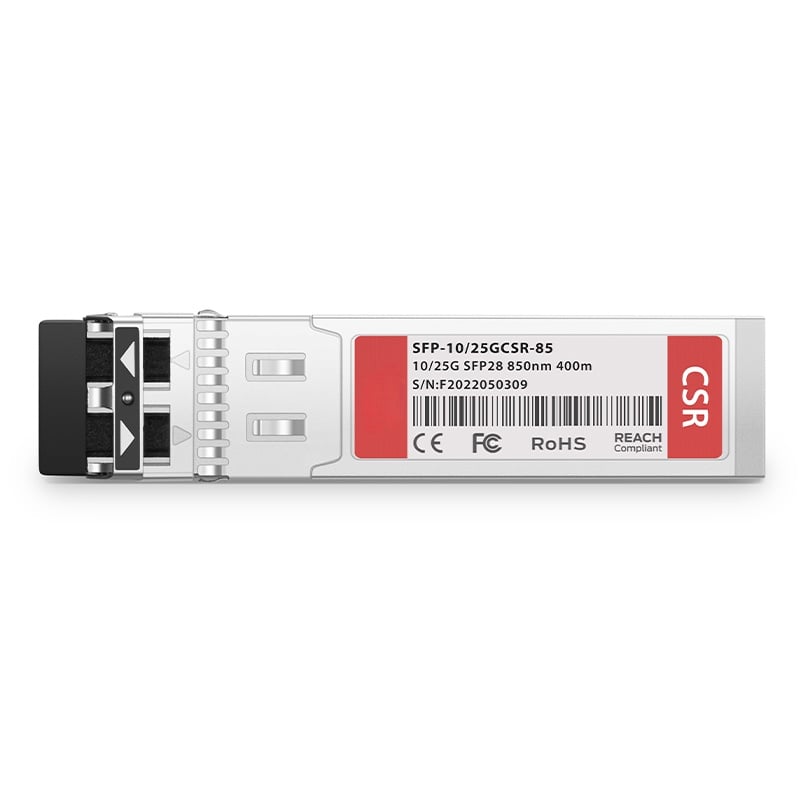

SFP28 10/25GBASE-CSR Dual-rate 850nm 400m DOM Duplex LC/UPC MMF Optical Transceiver Module, Cisco SFP-10/25G-CSR-S Compatible
Explore SunmaFiber online store for SFP28 10/25GBASE-CSR Dual-rate 850nm 400m DOM Duplex LC/UPC MMF Optical Transceiver Module, Cisco SFP-10/25G-CSR-S Compatible, Global sales, Free shipping on orders over $200.
$59.00

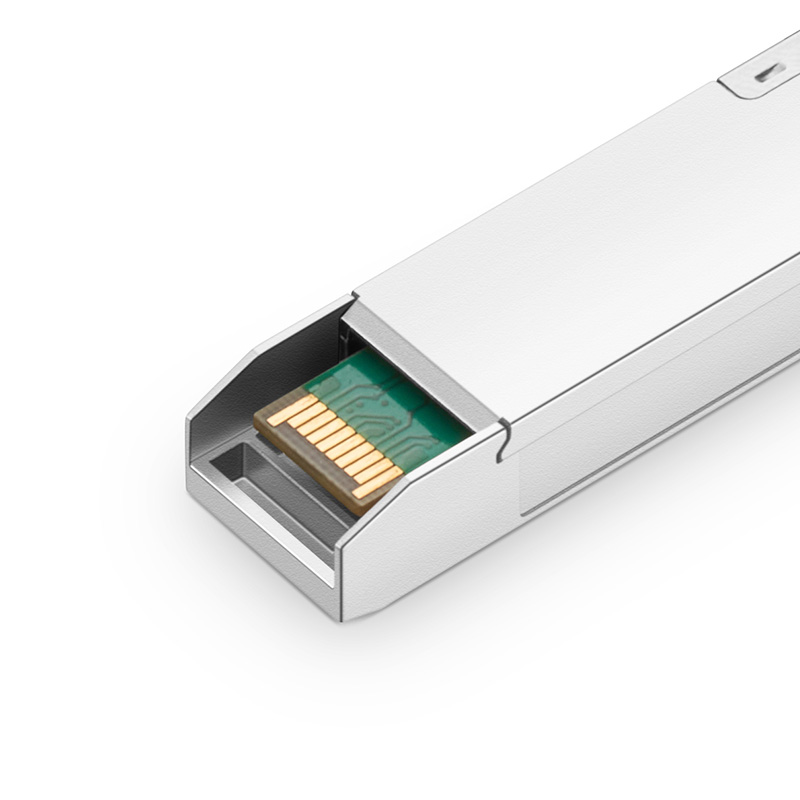

Cisco SFP-10/25G-CSR-S Compatible 10/25GBASE-CSR SFP28 Optical Transceiver Module for Data Center ( MMF, 850nm, 400m, LC, DOM)
The Cisco SFP-10/25G-CSR-S compatible SFP28 transceiver provides 10/25GBase-CSR throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. This module provides 10G backward compatibility and simplifies network upgrade. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFF-8472, SFF-8024, SFF-8431 and IEEE802.3by standard. Featuring low power consumption and high speed, this 25G transceiver is ideal for 25G Ethernet, Telecom, and Data Center.
Specifications
| Cisco Compatible | SFP-10/25G-CSR-S | Vendor Name | SunmaFiber |
| Form Factor | SFP28 | Max Data Rate | 25Gbps |
| Wavelength | 850nm | Max Cable Distance | 400m@OM4/300m@OM3 |

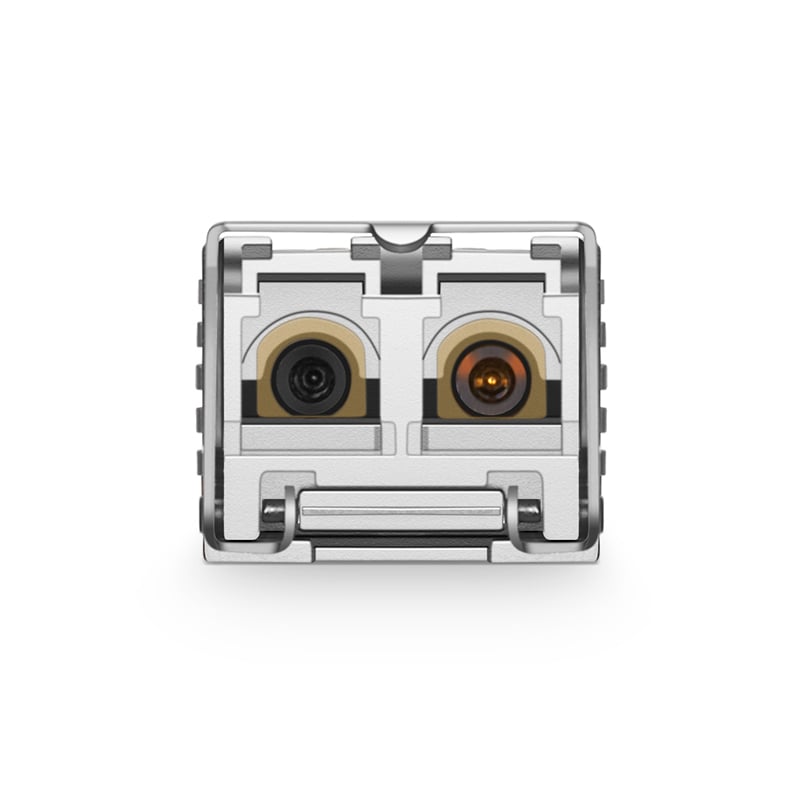

| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6.4~2.4dBm | Receiver Sensitivity | ＜-6dBm |
| Power budget | -0.4dB | Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W | Extinction Ratio | >2dB |
| CDR (Clock and Data Recovery) | TX and RX Built-in CDR | FEC Function | Support RS-FEC |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE802.3by |
| Core Size | 50/125 µm | Packaging Technology | COB Packaging |
| DOM | Supported | Warranty | 5 Years |
Quality Certifications
.svg)
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features

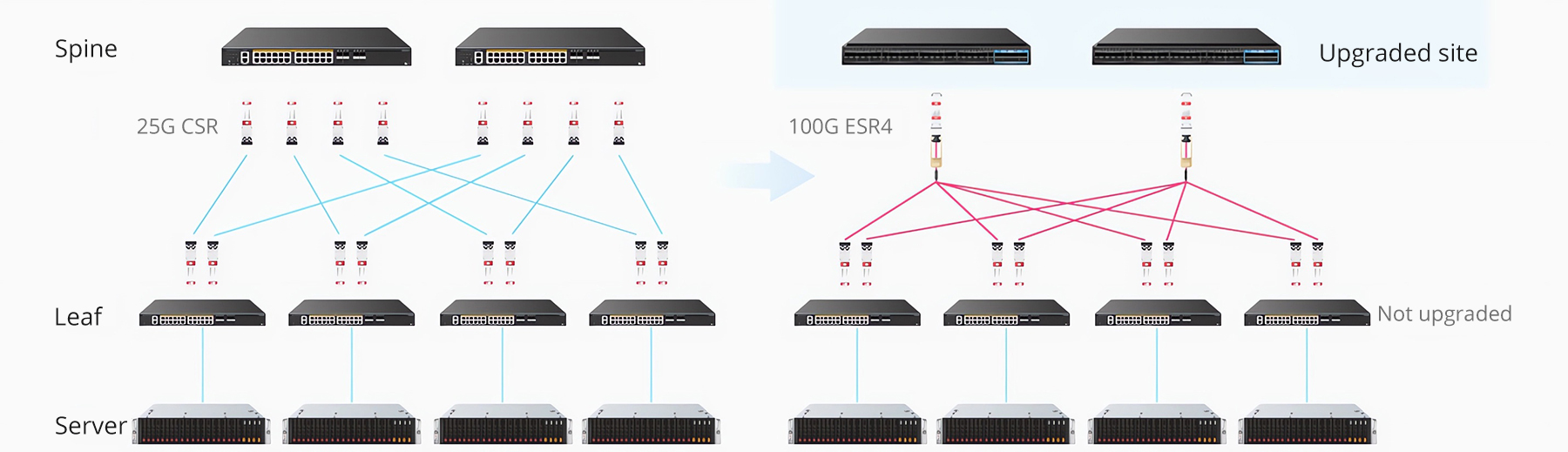

Upgrade Your Network One Site at a Time
Upgrade just one site to 100G gear, and still connect it to the existing 25G sites.
Connect New 100G Sites to Legacy 25G SitesFull Utilize Your 100G Port BandwidthRe-use 25G Optics in New 100G Ports

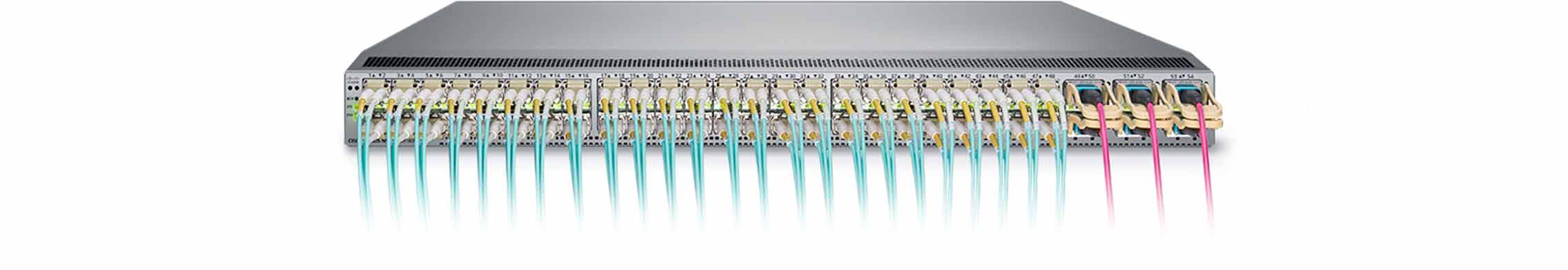

25G Connectivity for Data Center
Featured with low-power, high-density and high-speed, the SFP28 transceiver offers a popular way to help you quickly ramp up to 25G transmission.

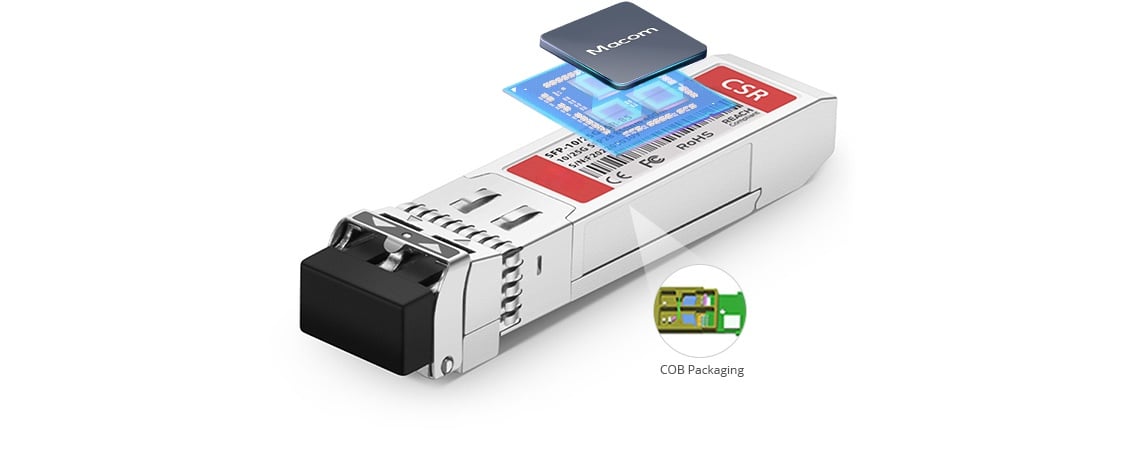

Leading Performance and Quality for 25G
Built-in Macom Chip, the SFP28 25G transceiver offers high-speed, and low-power in 25G links. Equipped with individually designed COB packaging.
Macom Chip≤1WCOB Packaging
Stable TransmissionLow Power ConsumptionGreat Airtightness
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Optical Spectrum TestEye Pattern TestBit Error Rate TestTemperature TestNo Packet Loss & CRCMask Margin >20%BER 1E-120~70°C
