Customized Simplex OS2 Single Mode LC/SC/FC/ST/E2000(LSH) Fiber Optic Pigtail
Explore SunmaFiber online store for Customized Simplex OS2 Single Mode LC/SC/FC/ST/E2000(LSH) Fiber Optic Pigtail, Global sales, Free shipping on orders over $200.
$1.36

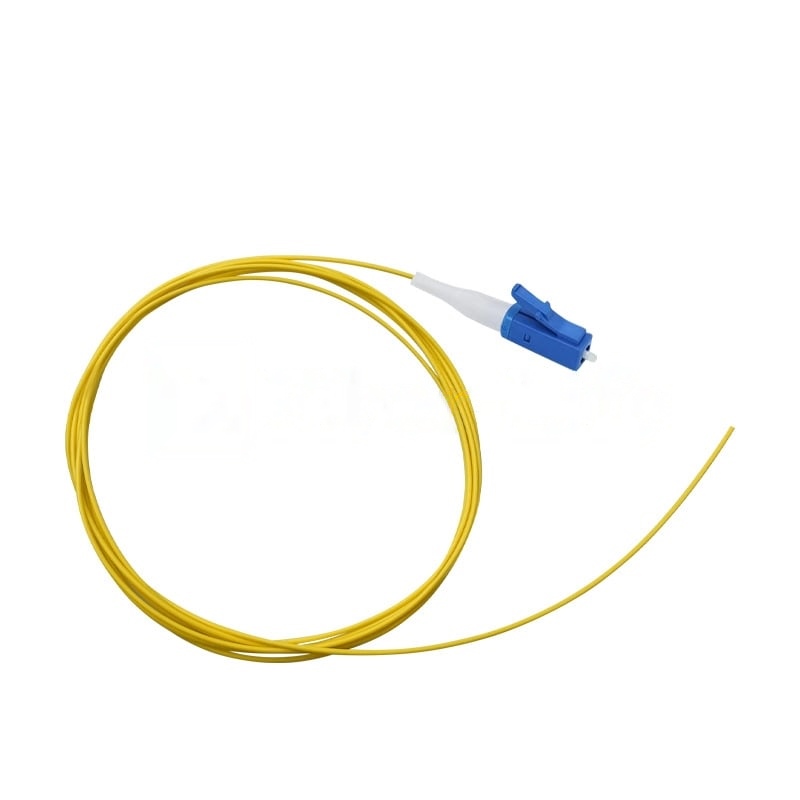

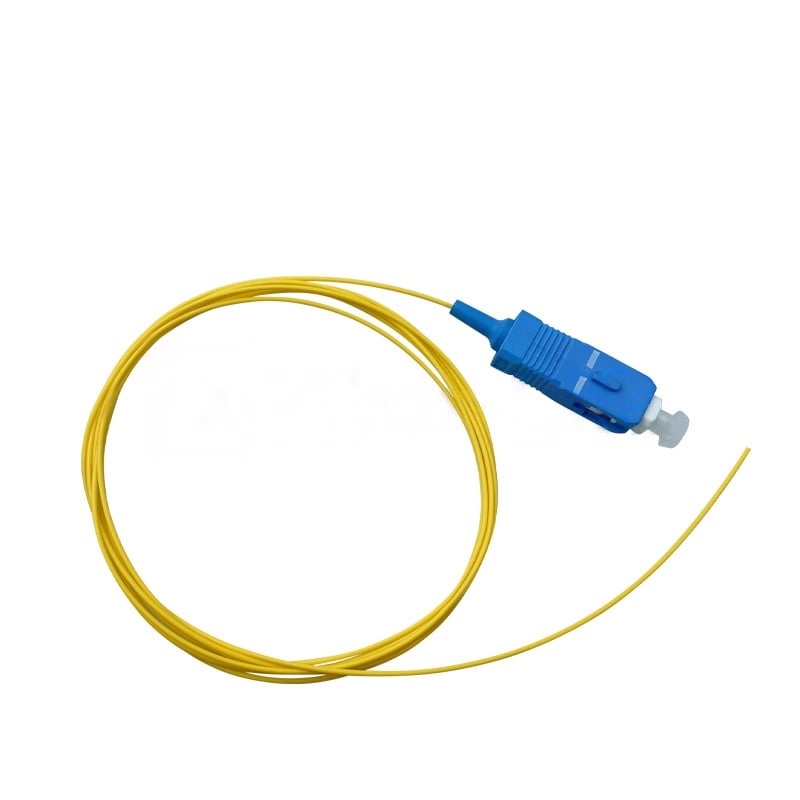

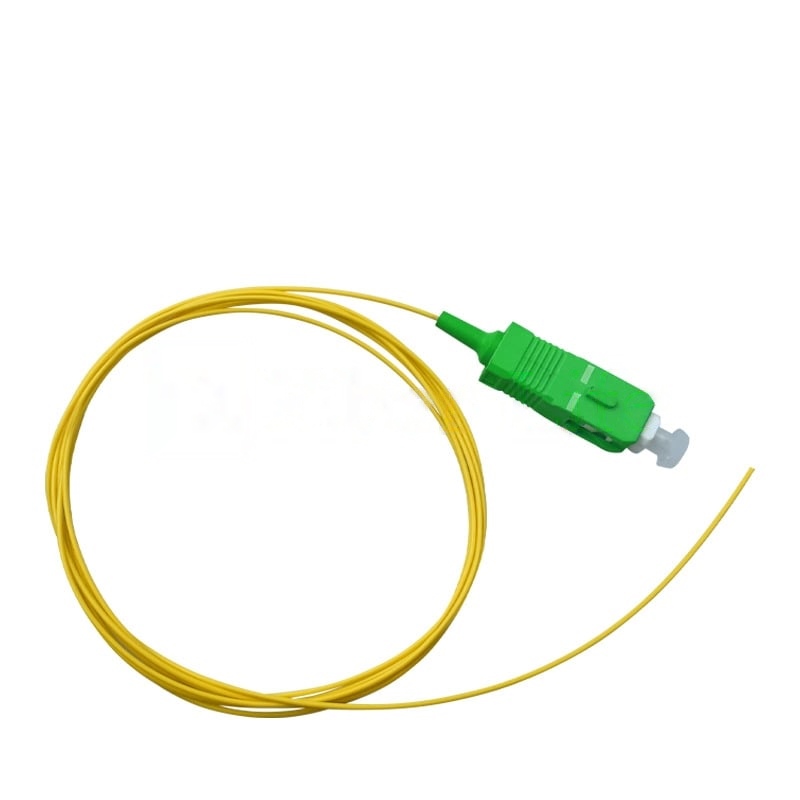

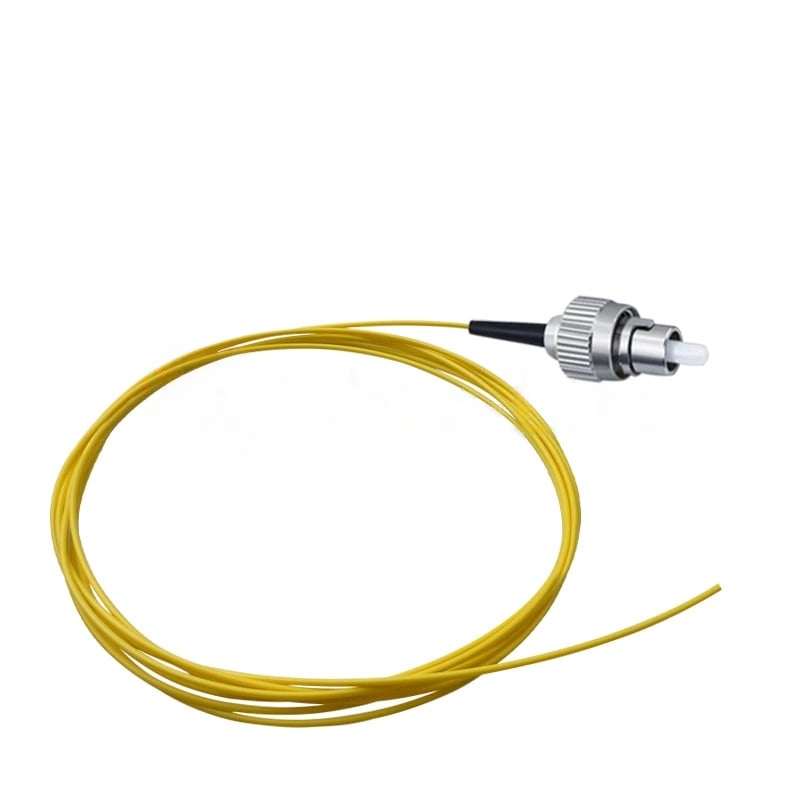

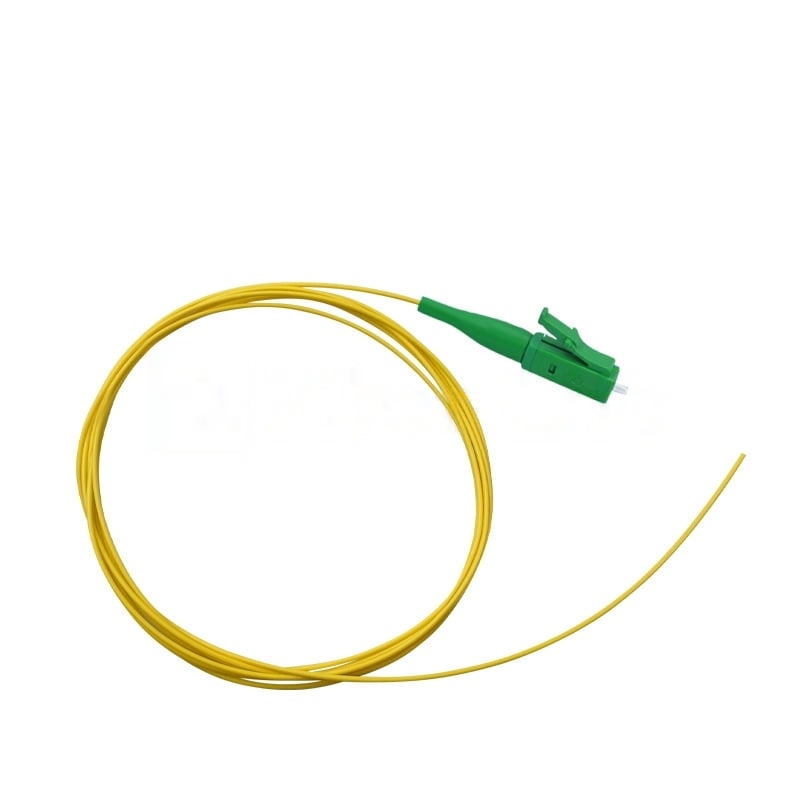

LC/SC/FC/ST/E2000(LSH) Simplex Single Mode Fiber Optic Pigtail
The Simplex Single Mode Fiber Optic Pigtail is essential in optical fiber communication systems, serving as a crucial link between optical devices and the network. It is commonly used for connecting equipment to the network, splicing to optical cables, and terminating fiber optic cables. The pigtail’s single-mode fiber design ensures minimal signal attenuation and distortion, making it ideal for high-precision applications that require long-distance communication and high-bandwidth transmission. This makes it a vital component in ensuring reliable and high-quality connections in optical networks.
Specifications
| Connector Type | LC/SC/FC/ST/E2000(LSH) | Polish Type | UPC/APC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | Simplex | Cable Jacket | PVC/LSZH |
| Fiber Grade | G.657.A1/G.657.A2 (Compatible with G.652.D) |
Minimum Bend Radius | 30mm/10mm/7.5mm |
| Cable Outside Diameter (OD) | 0.9/2.0mm | Jacket Color | Yellow/White |
| Insertion Loss (dB) | ≤0.3 | Return Loss (dB) | UPC≥50, APC≥60 (LC/SC/ST/FC) UPC≥55, APC≥75 (LSH) |
| Attenuation at 1310nm | 0.36 dB/km | Attenuation at 1550nm | 0.22 dB/km |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Quality Certifications
.svg)
Feature
High-quality pigtails
Strong compatibility and wide application
Widely used in fiber optic communication rooms, fiber-to-the-home, fiber optic data transmission, local area network and other equipment.

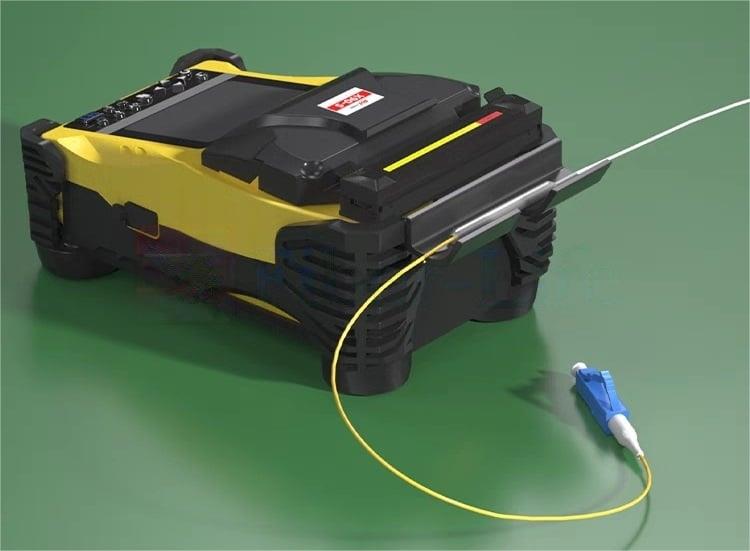

Can be used for splicing
Good repeatability and strong stability
Product quality is guaranteed after strict testing before leaving the factory, fully automatic standardized production, reduced manual intervention, stable quality.

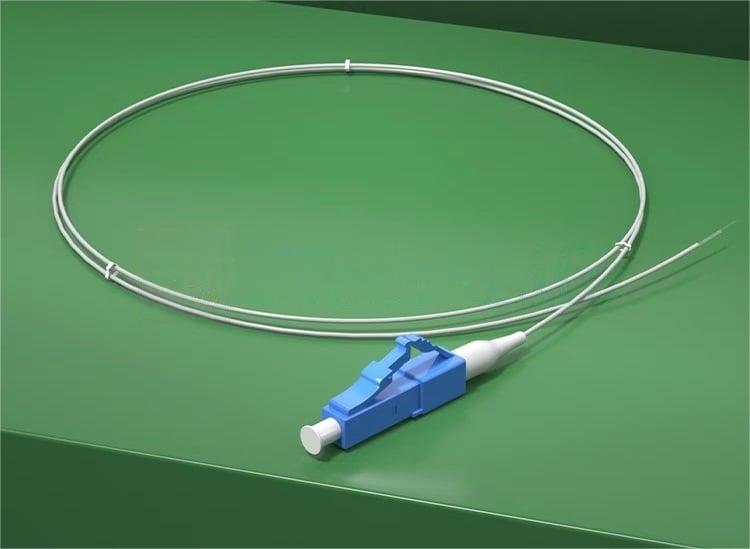

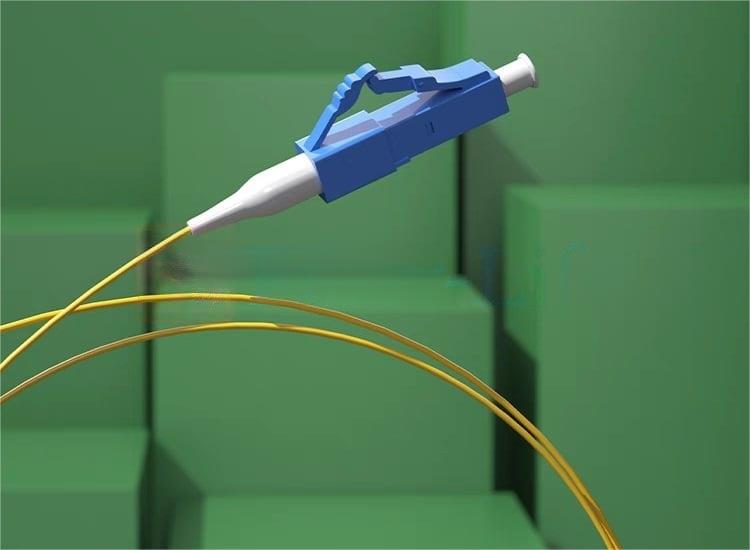

High-quality plug
Low insertion loss and high return loss
High-quality LC fiber optic plug, not easy to deform and break, resistant to plugging and unplugging, and anti-falling off.

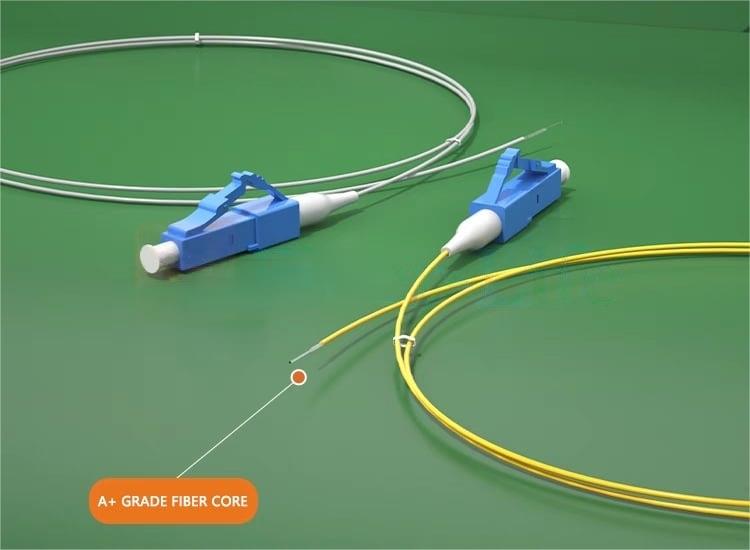

All-fiber structure
A+ grade fiber core has good light transmittance
Fully adopt high-quality fiber core, fully optimize attenuation and light dispersion characteristics, accurately ensure high welding efficiency.

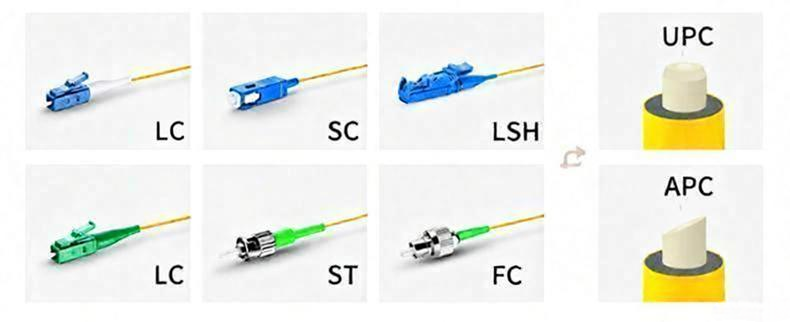

Optional connectors
Various connectors are available, LC/SC/FC/ST/LSH, UPC/APC polish, to suit the needs of different applications.

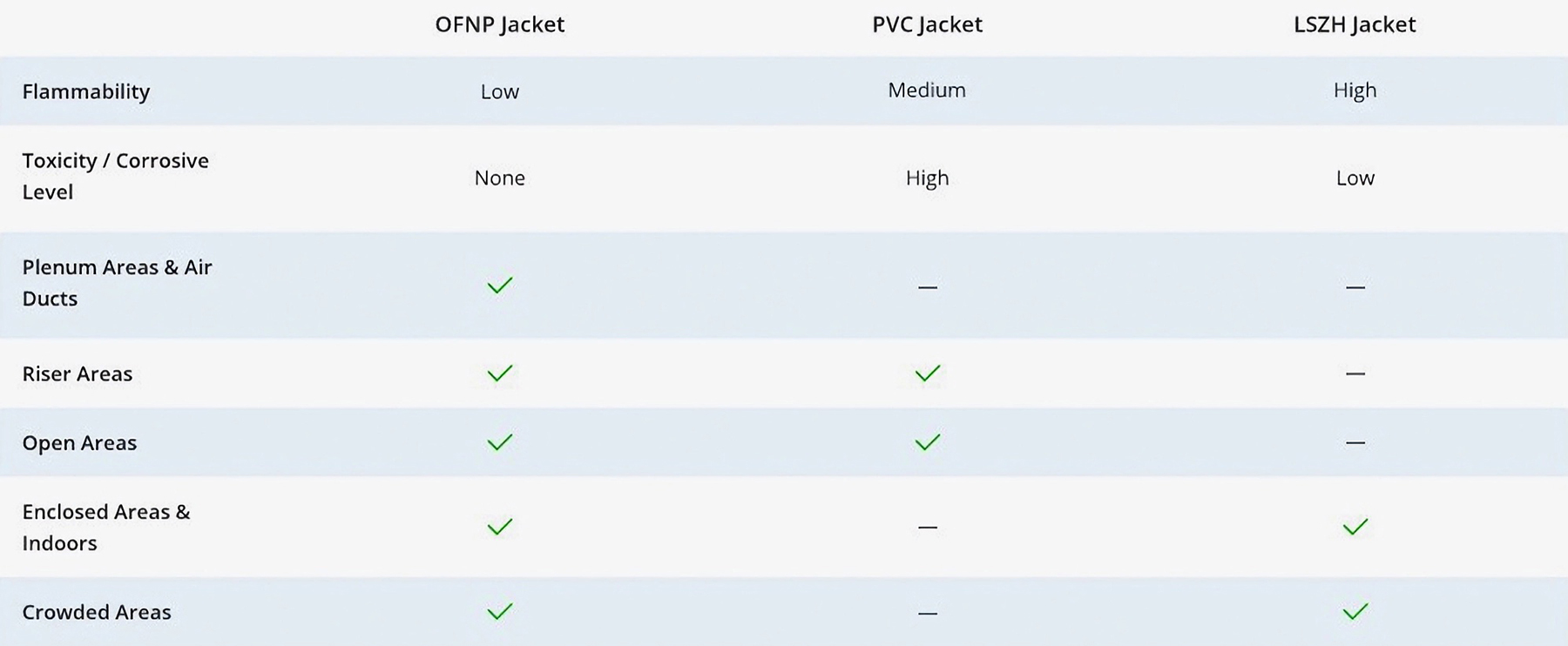

Three Jacket Materials Used in Diverse Cabling Zone
