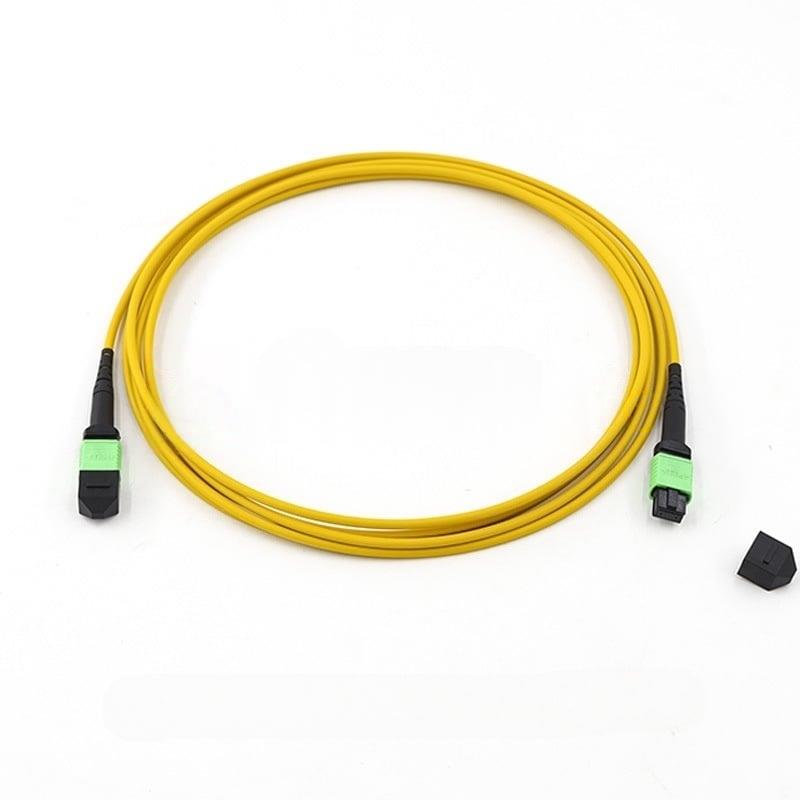

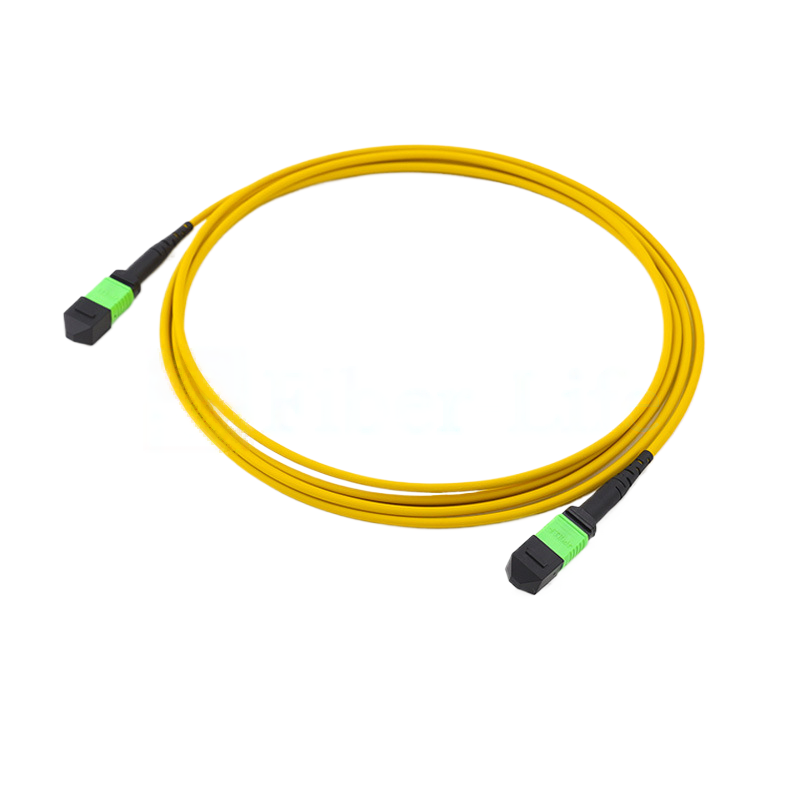

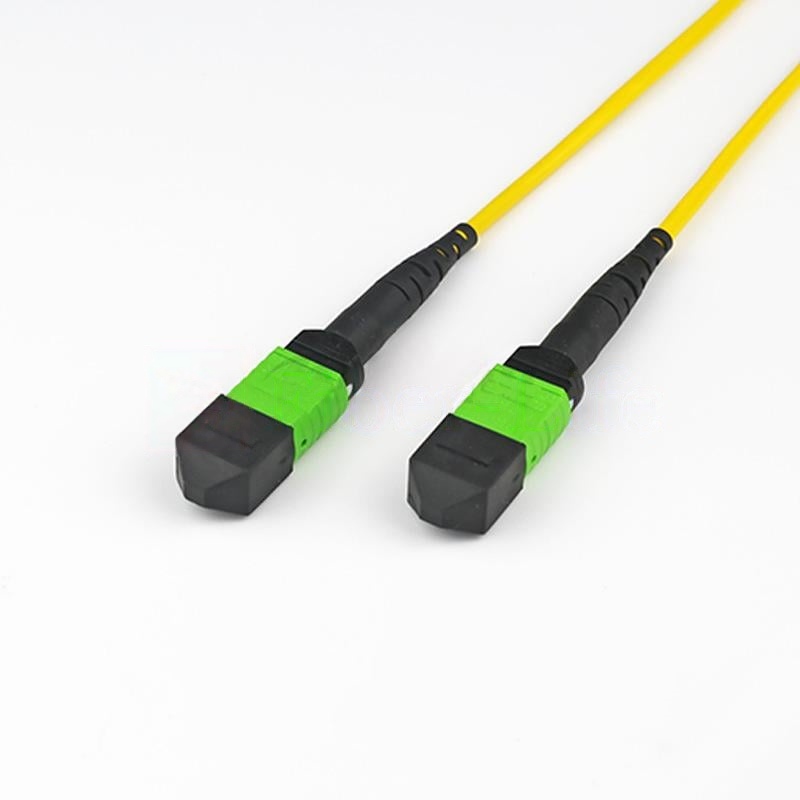

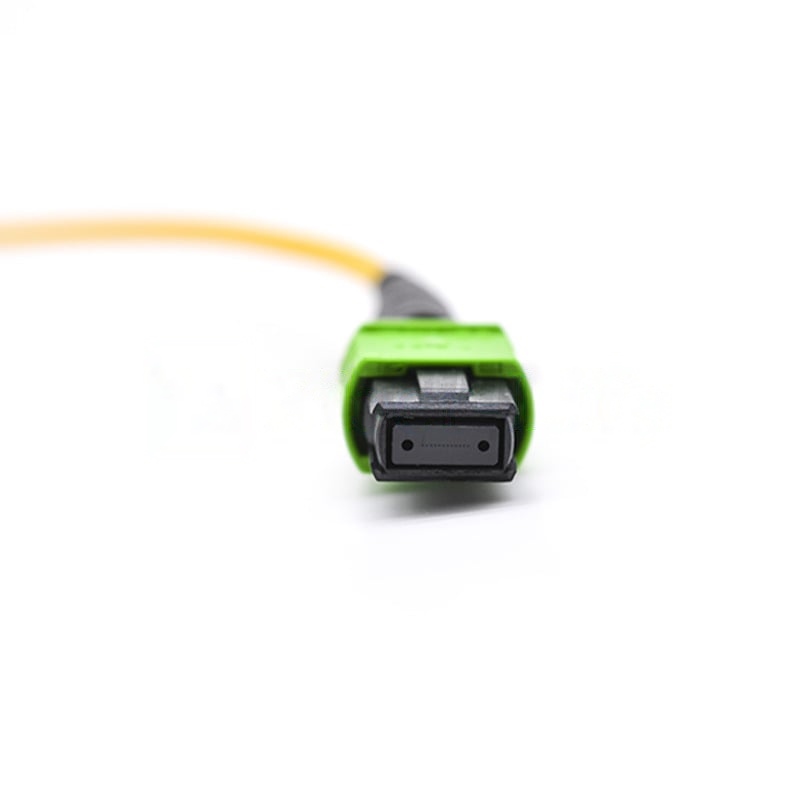

OS2 SingleMode MTP-12 Trunk Cable, Yellow
OS2 SingleMode MTP-12 Trunk Cable is equipped with MTP-12 connectors and OS2-level single-mode optical fiber, supports ultra-long-distance transmission, has low attenuation characteristics.
$75.30
OS2 SingleMode MTP-12 To MTP-12 Trunk Cable, Yellow
OS2 SingleMode MTP-12 Trunk Cable uses OS2-level single-mode optical fiber, supports ultra-long-distance transmission, has low attenuation characteristics, and is equipped with MTP-12 connectors. Each optical cable contains 12 optical fibers, supports multi-channel high-density connections, and effectively saves wiring space and costs.
The yellow sheath meets the industry standard of single-mode optical fiber, is easy to identify, and is wear-resistant and UV-resistant. It is suitable for use in data centers, computer rooms, pipelines and other environments. It is an ideal choice for building high-performance, long-distance network infrastructure.
Specifications
| Connector A | US Conec MTP | Connector B | US Conec MTP |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Glass Fiber | Corning SMF-28® Ultra(G.657.A1) | Minimum Bend Radius | 10mm |
| Trunk Diameter | 3.0mm | Polish Type | APC/UPC |
| Insertion Loss (dB) | ≤0.35dB | Return Loss (dB) | ≥60dB(APC) ≥45dB(UPC) |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 80°C (-40 to 176℉) |
Features
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Three Jacket MaterialsThe differences between OFNP, PVC, LSZH jackets.
|
