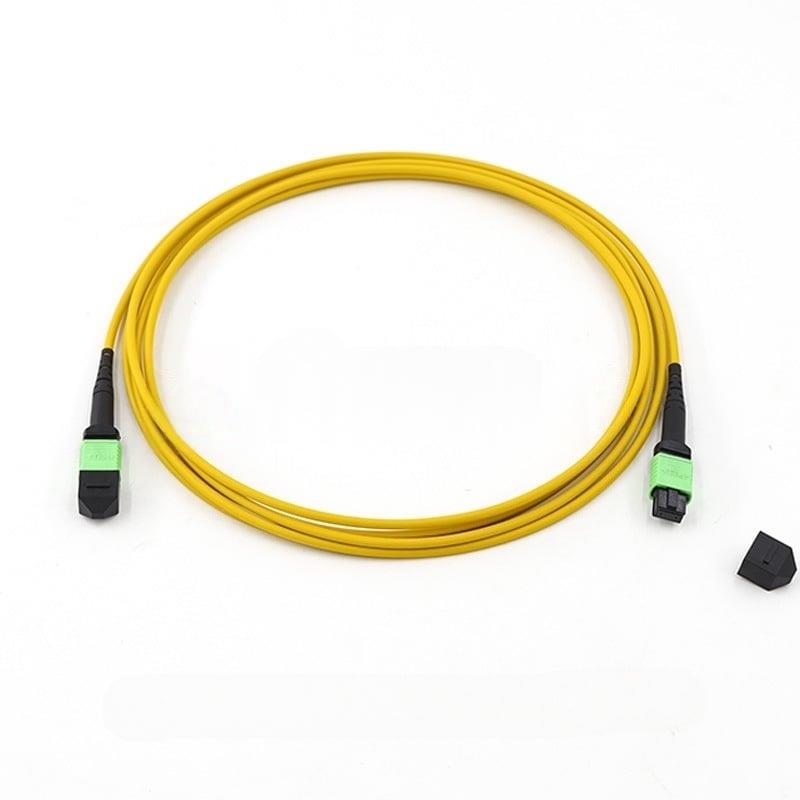

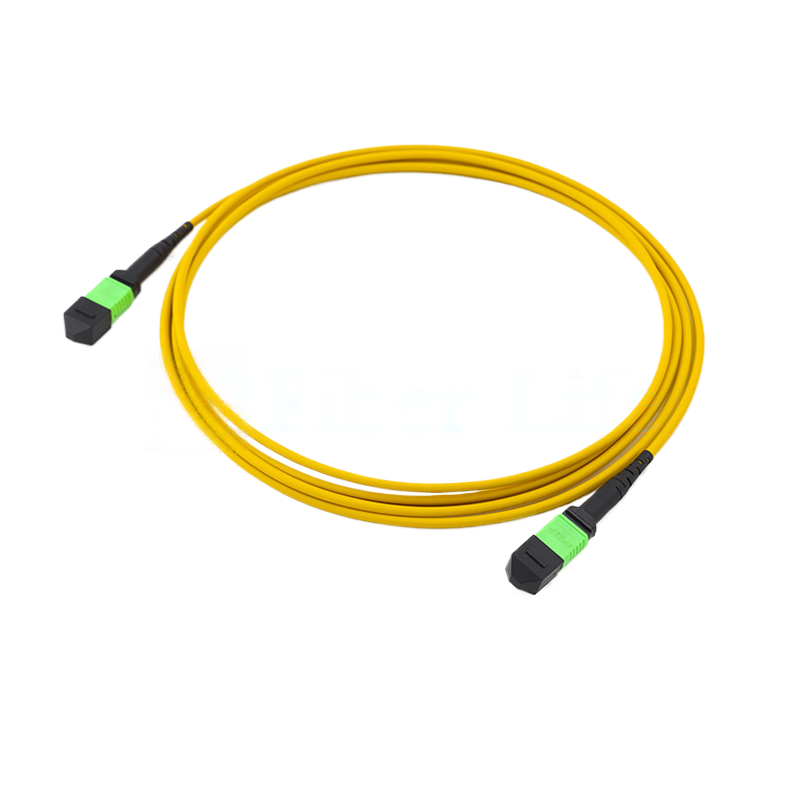

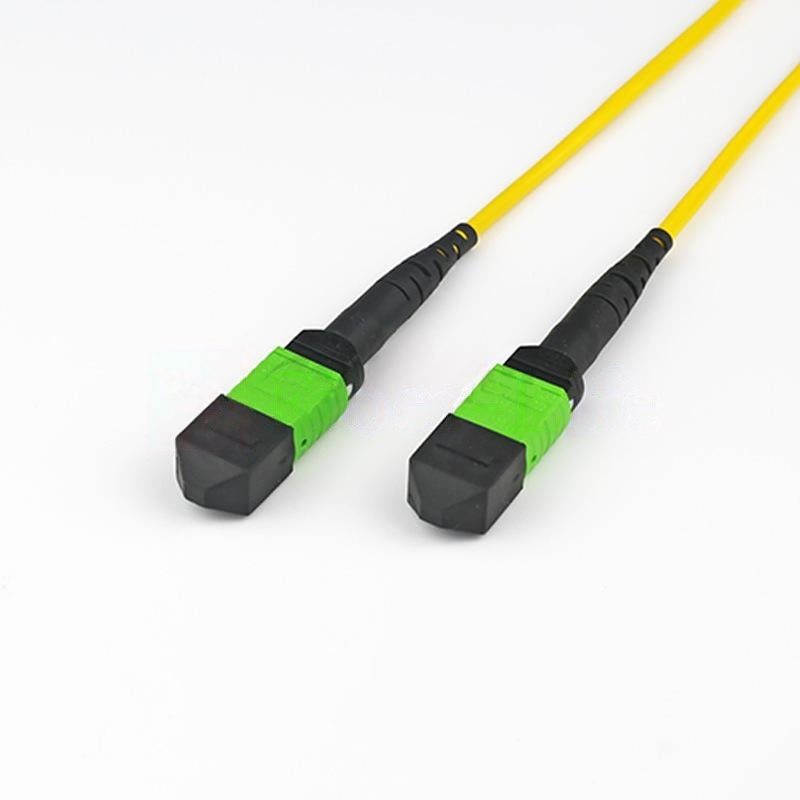

OS2 SingleMode MTP-24 Trunk Cable, Yellow
High-density OS2 SingleMode MTP-24 Trunk Cable for long-distance, high-speed fiber connections in data centers and telecom networks, optimizing space and enhancing transmission reliability.
$208.00
OS2 SingleMode MTP-24 To MTP-24 Trunk Cable
The OS2 SingleMode MTP-24 Trunk Cable is a high-performance single-mode fiber trunk cable designed for long-distance and high-density fiber network connections. It uses the OS2 single-mode fiber standard, supporting long-distance transmission at 1310nm and 1550nm wavelengths, making it ideal for connections between buildings.

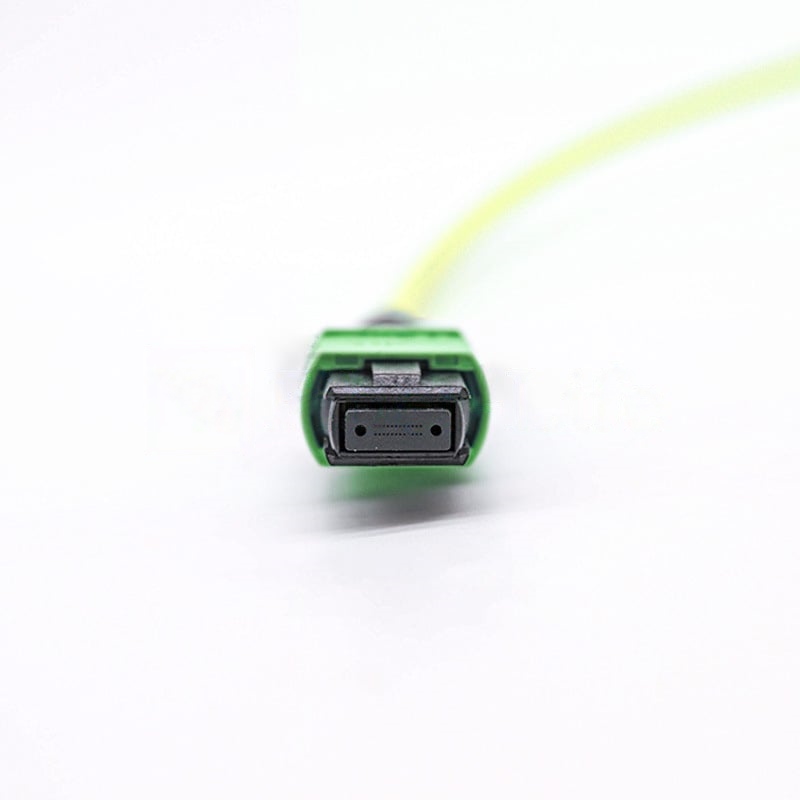

The MTP-24 design features a 24-fiber MTP connector, allowing a single cable to carry 24 channels, significantly enhancing cabling density and efficiency in data centers or network environments. This trunk cable is widely used in data centers, high-speed networks, and telecom operator settings, providing reliable, high-speed data transmission while reducing cabling space.
Specifications
| Connector A | US Conec MTP | Connector B | US Conec MTP |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Glass Fiber | Corning SMF-28® Ultra(G.657.A1) | Minimum Bend Radius | 10mm |
| Trunk Diameter | 3.0mm | Polish Type | APC/UPC |
| Insertion Loss (dB) | ≤0.35dB | Return Loss (dB) | ≥60dB(APC) ≥45dB(UPC) |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 80°C (-40 to 176℉) |
Features
Pre-terminated MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Three Jacket MaterialsThe differences between OFNP, PVC, LSZH jackets.
|
Related Products
OS2 SingleMode MTP-12 Trunk Cable is equipped with MTP-12 connectors and OS2-level single-mode optical fiber, supports ultra-long-distance transmission, has low attenuation characteristics.
OM3 multimode MTP-12 trunk cable offers high-speed, high-density connections for data centers, ideal for low-latency, short-distance transmissions up to 100 meters at 100Gbps.
OM4 MTP-12 Trunk Cable delivers high-speed, high-density connections for data centers, ideal for low-latency, short-distance transmissions up to 100Gbps over 150 meters.
OM4 MTP-24 Trunk Cable provides high-speed, high-density connections for data centers, ideal for low-latency, short-distance transmissions up to 100Gbps over 150 meters.

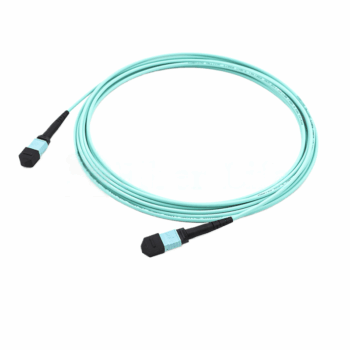

OM3 MTP-24 to MTP-24 Trunk Cable provides high-speed, high-density connections for data centers, ideal for short-distance, low-latency transmissions at 10Gbps, 40Gbps, and 100Gbps.
